Sending Card Installation

DV8 supports the sending cards include the following:
Sending Card Type
Linsn
Nova
Mooncell
Colorlight
DBstar
We will introduce the sending card installation in the following parts. The installation steps of
Linsn 801/802, Nova MSD300, Colorlight IT7 and DBstar Q2011 sending card are the same, take
Linsn 801 for example, specific steps are as follows:

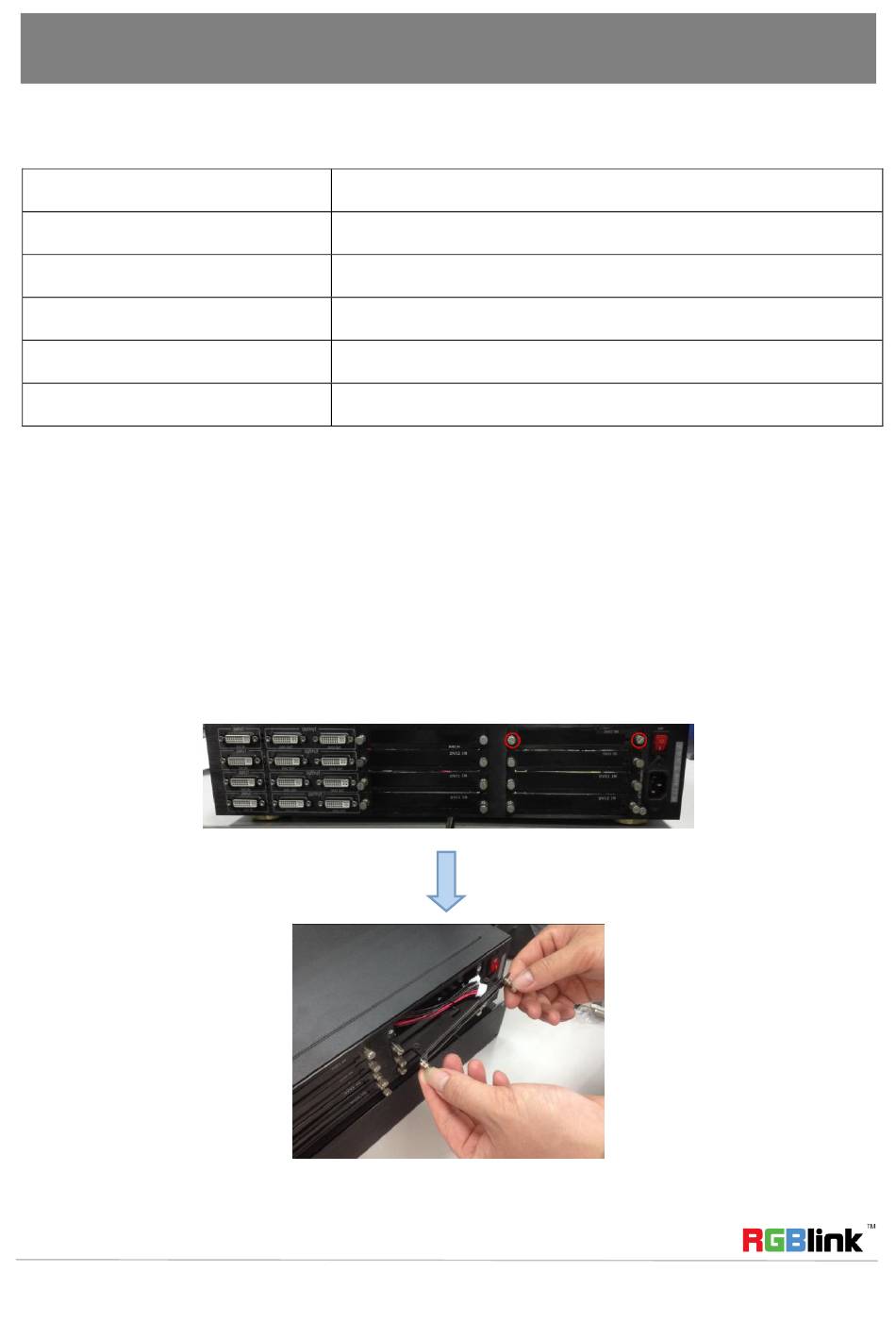

1. Choose any sending card block (commend choose the first row or the third row on both sides of the
sending card block, as default binding the power cords in these positions), and unscrew the captive
screws, then pull out the sending card block, as shown in figure 1:
801, 802
MSD300、MSD600
VCMA7-V30
IT7
Q2011
(Figure 1)
