RGBlink DV8 Quick Start Manual page 10

Power adapter Power interface
(Figure 5)
The install steps for Nova MSD600 are the same as above, but the following 3 points need to be
noted:

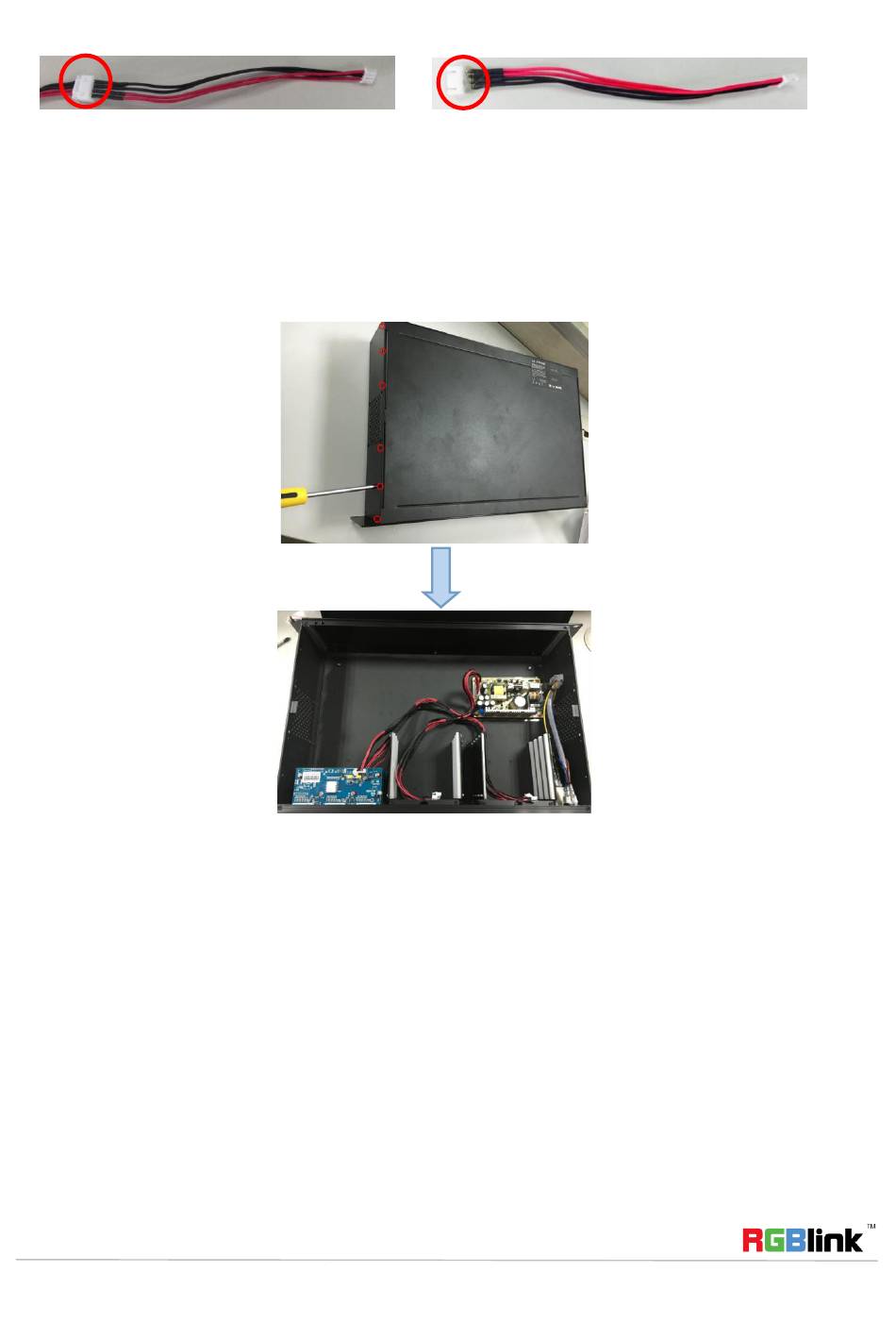

1. Before install the Nova MSD600 sending card, user should unscrew the 12 fixed screws on the side
panels (6 pieces each side), and remove the top panel, as shown in figure 6:
(Figure 6)
Then move the unilateral fixed groove on the base panel from position 1 to position 2 (As the circuit
board of Nova MSD600 is wider than other sending cards, the purpose of moving the unilateral fixed
groove is to increase the sending card installation width. User can also move the other unilateral fixed
groove, according to the install quantity of sending card. Assemble the top panel when complete. As
shown in figure 7.
9
