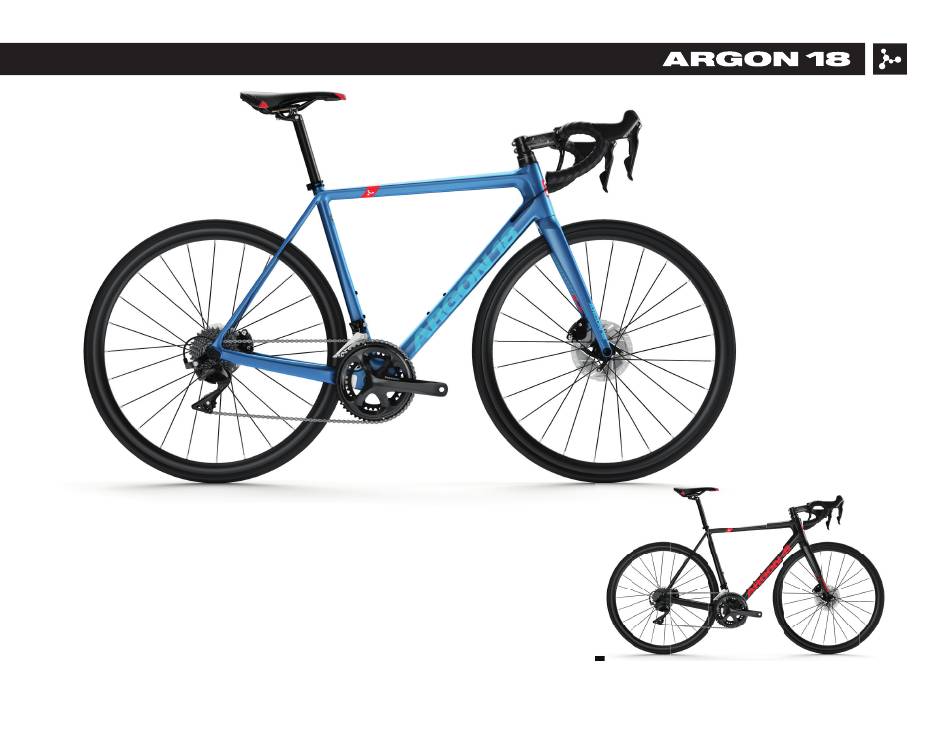

GALLIUM CS DISC 322A / 322B / 322C
ASSEMBLY GUIDE
Valid for MY2020 Gallium CS Disc 322A / 322B / 322C
Valid for MY2020 Gallium CS Disc 322A / 322B / 322C
Revision 1.0 - 09.05.2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GALLIUM CS DISC 322A and is the answer not in the manual?

Questions and answers

Related Manuals for Argon 18 GALLIUM CS DISC 322A

Summary of Contents for Argon 18 GALLIUM CS DISC 322A

  • Page 1 GALLIUM CS DISC 322A / 322B / 322C ASSEMBLY GUIDE Valid for MY2020 Gallium CS Disc 322A / 322B / 322C Valid for MY2020 Gallium CS Disc 322A / 322B / 322C Revision 1.0 - 09.05.2019...

  • Page 2: Table Of Contents

    6. Min/Max Seat Post Insertion ......21 For the warranty to be valid, the bicycle must be fully assembled by an authorized Argon 18 dealer. High-end components, particularly carbon parts, need extra care when assembled.

  • Page 3: Tools Needed And First Aid Kit

    GALLIUM CS DISC 322A / 322B / 322C 1. Tools Needed and First Aid Kit Tools needed for assembly 1: Bearing Cup Press (Park Tool HHP-2) 2: Allen Key Set 3: Grease 4: Utility Pick Set (Park Tool Item #UP-SET) 5: Clean Rags 6: Derailleur Hanger Alignment Gauge (Park Tool Item #DAG-2 or #DAG-2.2)

  • Page 4: Frameset Inspection

    GALLIUM CS DISC 322A / 322B / 322C 2. Frameset Inspection BEFORE ASSEMBLING YOUR NEW GALLIUM CS DISC, MAKE SURE THAT YOU HAVE ALL THE FOLLOWING: 1. Frameset parts (see p.5-6) 2. All the necessary bolts (refer to Frameset Parts, p.5-6) WHEN ASSEMBLING YOUR NEW GALLIUM CS DISC, MAKE SURE YOU FOLLOW THIS PROCEDURE: 3.

  • Page 5: Frameset Parts, Skus And Descriptions

    GALLIUM CS DISC 322A / 322B / 322C 3. Frameset Parts 80546 80554 81052 80802 80555 80807 81053 38879 80804 80547 80551 81054 80549 38661 80811 80552 FK.GALLCS_D.XXS-S.322A FK.GALLCS_D.M-XL.322A FK.GALLCS_D.XXS-S.322B FK.GALLCS_D.M-XL.322B FK.GALLCS_D.XXS-S.322C FK.GALLCS_D.M-XL.322C...
  • Page 6 GALLIUM CS DISC 322A / 322B / 322C 3. Parts’ SKUs and Descriptions* No. Name A18 SKU# Parts included in the frameset GALLIUM CS DISC FRAME NOT AVAILABLE AS SPARE PART FK.GALLCS_D.XXS-S.322A FK.GALLCS_D.XXS-S.322B Gallium CS Disc Fork (XXS/XS/S), 254mm steerer FK.GALLCS_D.XXS-S.322C...

  • Page 7: Assembly Instructions

    GALLIUM CS DISC 322A / 322B / 322C 4.1. Headset Installation Install the 3D headset (15) according to the pressfi t assembly guide. You can choose from 3 diff erent heights: 25mm, 15mm or 0mm.

  • Page 8: Seat Post Collar Assembly

    GALLIUM CS DISC 322A / 322B / 322C 4.2. Seat Post Collar Assembly Seat Post Assemble the seat post collar (8) with the seat post (available separately). Apply carbon paste inside the frame’s seat tube and on the seat post where it inserts inside the frame. Tighten the bolt at 4 Nm.

  • Page 9: Rear Derailleur Hanger Adjustment

    GALLIUM CS DISC 322A / 322B / 322C 4.3. Rear Derailleur Hanger Adjustment 80832* 1. Select the correct rear derailleur hanger depending on the type of derailleur that you have. - Direct mount (80832) *available separately - Regular mount (10) 2.

  • Page 10: Mechanical Groupset Specification

    GALLIUM CS DISC 322A / 322B / 322C 4.4. Mechanical groupset specification Start installation at this end. Insert derailleur cables with hoses using plastic Cable Stopper (9). Insert hydraulic brake hose as shown, using the Oblong Cable Guide (5). DC+DH DC+DH BR = Brake Hose DC = Derailleur Cable (mech.)
  • Page 11 GALLIUM CS DISC 322A / 322B / 322C 4.4. Mechanical groupset specification DC = Derailleur Cable (mech.) Exit derailleur cables through bottom bracket (BB) hole. Insert in the appropriate slots in the BB guide (3). Making sure the pipe is aligned with the top hole, insert BB guide in the square hole until it clicks.
  • Page 12 GALLIUM CS DISC 322A / 322B / 322C 4.4. Mechanical groupset specification DC+DH BR = Brake Hose Exit the hydraulic brake hose through DC = Derailleur Cable (mech.) the hole on the chain stay. DH = Derailleur Housing (mech.)

  • Page 13: Electronic (Di2) Groupset Specification

    GALLIUM CS DISC 322A / 322B / 322C 4.5. Electronic (Di2) groupset specification * Optional parts available separately for electronic shifting configurations Start installation at this end. Insert electronic wire and hydraulic brake hose as shown with the use of the Oblong Cable Guide (5), Oblong Plug* (80550) Oblong Grommet* (80805). 80805*...
  • Page 14 GALLIUM CS DISC 322A / 322B / 322C 4.5. Electronic (Di2) groupset specification * Optional parts available separately for electronic shifting configurations 80553* 80548* EW = Electronic Wire Use the rectangular hole to connect all the wires to the junction box. Insert the junction box in the hole. Insert the BB cover* (80548) in the rectangular hole until it clicks.
  • Page 15 GALLIUM CS DISC 322A / 322B / 322C 4.5. Electronic (Di2) groupset specification * Optional parts available separately for electronic shifting configurations 80553* BR = Brake Hose Exit the hydraulic brake hose through EW = Electronic Wire the hole on the chain stay.
  • Page 16 GALLIUM CS DISC 322A / 322B / 322C 4.5. Electronic (Di2) groupset specification * Optional parts available separately for electronic shifting configurations The Di2 battery is hidden in the seatpost; use the Di2 battery holder* (38446) to fix the battery correctly. Apply a slight amount of grease on both parts. 38446* GREASE...

  • Page 17: Electronic (Wireless) Groupset Specification

    GALLIUM CS DISC 322A / 322B / 322C 4.6. Electronic (Wireless) groupset spec. * Optional parts available separately for electronic shifting configurations Start installation at this end. Insert hydraulic brake hose shown with the use of the Oblong Cable Guide (5) and Oblong Plugs* (80550). 80550* BR = Brake Hose...
  • Page 18 GALLIUM CS DISC 322A / 322B / 322C 4.6. Electronic (Wireless) groupset spec. * Optional parts available separately for electronic shifting configurations 80548* Use the rectangular hole to connect all the wires to the junction box. Insert the junction box in the hole. Insert the BB cover* (80548) in the rectangular hole until it clicks.
  • Page 19 GALLIUM CS DISC 322A / 322B / 322C 4.6. Electronic (Wireless) groupset spec. * Optional parts available separately for electronic shifting configurations BR = Brake Hose Exit the hydraulic brake hose through the hole on the chain stay.

  • Page 20: Troubleshooting / Tips / Specification

    GALLIUM CS DISC 322A / 322B / 322C 5. Troubleshooting / Tips / Specification SPECIFICATIONS Brakes Use only flat mount hydraulic disc brakes. The frame and fork are compatible with either 140mm or 160mm disc rotors. Adapters might be required, consult brake manufacturer. • Rear mount thickness: 30mm •...

  • Page 21: Min/Max Seat Post Insertion

    GALLIUM CS DISC 322A / 322B / 322C 6. Min/Max Seat Post Insertion Refer to the tables below for details on Saddle Height and SeatPost insertion limits. The correct frame size must be determined according to the saddle height limits.
