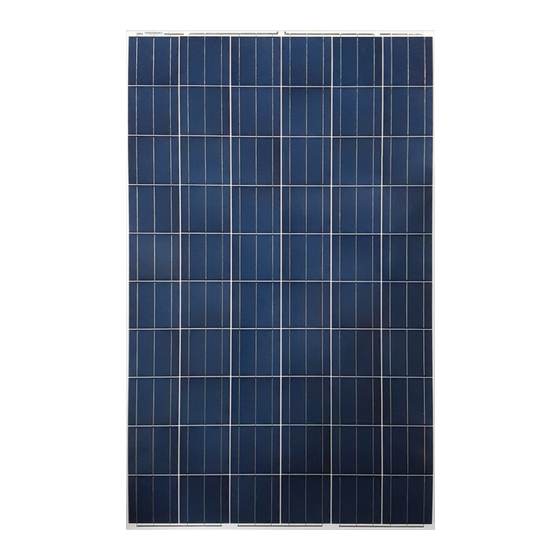

Jinko Solar JKM P-60 Series User Manual

Photovoltaic module
Hide thumbs Also See for JKM P-60 Series:
Table of Contents

Advertisement

Quick Links

JinkoSolar
Photovoltaic Module
User Manual
(UL1703)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JKM P-60 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Jinko Solar JKM P-60 Series

Summary of Contents for Jinko Solar JKM P-60 Series

  • Page 1 JinkoSolar Photovoltaic Module User Manual (UL1703)

  • Page 2: Table Of Contents

    Contents General Information Overview Warnings Installation Installation Safety Installation Condition 2.2.1 Climate Condition 2.2.2 Site Selection 2.2.3 Tilt Angle Selection Mechanical Installation Introduction 2.3.1 Mounting with Bolts 2.3.2 Mounting with Clamps 2.3.2.1 Clamp Mounting on Long Sides of the Frames 2.3.2.2 Clamp Mounting on Short Sides of the Frames 2.3.2.3 Clamp Mounting on Long &...

  • Page 3: General Information

    1. General Information 1.1 Overview Thanks for choosing Jinko Solar PV modules. In order to ensure the PV modules are installed correctly, please read the following installation instructions carefully before modules are installed and used. Please remember that these products generate electricity and certain safety measures need to be taken to avoid danger.
  • Page 4  Do not touch live terminals with bare hands. Use insulated tools for electrical connections.  Do not remove any part installed by Jinko Solar or disassemble the module.  All instructions should be read and understood before attempting to install, wire, operate and maintain the module.
  • Page 5 Rev. C supplied with the module and evaluated through the requirements in UL 1703, may be used for grounding connections in accordance with the instructions provided with the module.  Under normal conditions, a photovoltaic module is likely to experience conditions that produce more current and/or voltage than reported at standard test conditions.

  • Page 6: Installation

    2. Installation 2.1 Installation Safety  Always wear protective head gear, insulated gloves and safety shoes (with rubber soles).  Keep the PV module packed in the carton until installation.  Do not touch the PV module unnecessarily during installation. The glass surface and the frame may be hot.

  • Page 7: Installation Condition

    2.2.2 Site Selection In most applications, Jinko Solar PV modules should be installed in a location where they will receive maximum sunlight throughout the year. In the Northern Hemisphere, the module should typically face south, and in the Southern Hemisphere, the modules should typically face north.

  • Page 8: Tilt Angle Selection

    snow, debris, and is well ventilated. Most batteries generate hydrogen gas when charging, which can be explosive. Do not light matches or create sparks near the battery bank. When a battery is installed outdoors, it should be placed in an insulated and ventilated battery case specifically designed for the purpose.

  • Page 9: Mechanical Installation Introduction

    Solar PV modules usually can be mounted by using the following methods: bolts and clamps. ﹡ Note: (1) All installation methods herein are only for reference, and Jinko Solar will not provide related mounting components. The system installer or trained professional personnel must be responsible for the PV system’s design, installation, and mechanical load calculation and security of the system.

  • Page 10: Mounting With Bolts

    When mounting modules in snow-prone or high-wind environments, special care should be taken to mount the modules in a manner that provides sufficient design strength while meeting local code requirements. (4) Where common grounding hardware (nuts, bolts, star washers, spilt-ring lock washers, flat washers and the like) is used to attach a listed grounding/bonding device, the attachment must be made in conformance with the grounding device manufacturer's instructions.

  • Page 11: Mounting With Clamps

    Rev. C Table 2：The mounting part for eight mounting holes *Alternate Mounting Method – bolt mounting method using the 12 provided mounting holes in the frame with a torque of 16~20 N*m. The following stainless steel mounting hardware should be included in the installation instructions. Figure 3: PV module installed with Bolt fitting method 2.3.2 Mounting with Clamps The module clamps should not come into contact with the front glass and must not deform...
  • Page 12 When installing modules using clamps on the long side & short side of the frame, the applicable product types and installation locations are shown in figure 7 and table 6. Figure 4: PV module installed at the side with Clamp fitting method Clamp type Dimension (mm) Composition material...

  • Page 13: Clamp Mounting On Long Sides Of The Frames

    Rev. C 2.3.2.1 Clamp Mounting on Long Sides of the Frames Dimension (mm) Max. Test Pressure: 5400Pa Module type (positive) & 2400Pa (negative) mechanical load Group 2 1665*992 & 1684*1002 1987*992 & 2000*992 & Group 5 2008*1002 Group 8 1665*992 & 1684*1002 1987*992 &...

  • Page 14: Clamp Mounting On Long & Short Sides

    2.3.2.3 Clamp Mounting on Long & Short Sides Dimension (mm) Max. Test Pressure: 2400Pa (positive) & Module 2400Pa (negative) type mechanical load Group 1 1650*992 & 1665*1002 Group 3 Group 7 1650*992 &1665*1002 Group 9 Group 4 1956*992 & 1979*1002 Group 6 Group 10 1956*992 &...
  • Page 15 Rev. C c) The maximum fuse rating value in an array string can be found on the product label or in the product data sheet. The fuse rating value is also corresponding to the maximum reverse current that a module can withstand, i.e. when one string shaded then the other parallel strings of modules will be loaded by the shaded string and the current will pass through to create a current circuit.

  • Page 16: Maintenance And Care

    L1 is 900/1200mm; and for customized module, L1 can be based on your condition, take the cable length into consideration before designing the wiring layout. Jinko Solar requires the negative grounding of the inverter when a system is installed with standard (non-Eagle line) PV solar modules. Alternatively, a "charge-equalizing‟...

  • Page 17: Electrical Specification

    Check screws/bolts and mounting brackets are tight, adjust and tighten as necessary. e) Check the junction box and diodes as well. If you have any diodes problem, please contact Jinko Solar. f) When cleaning the modules, it is not allowed to stand on the module.

  • Page 18: Appendix 1： Applicable Products

    Appendix 1： Applicable Products This document is applicable to the series of solar modules as listed below: Group 1 ① ② JKMxxxP-60 JKMxxxP-60B JKMxxxP-60-J4 JKMxxxP-60B-J4 ③ ④ JKMxxxPP-60 JKMxxxPP-60B JKMxxxPP-60(Plus) JKMxxxPP-60-J4 ⑤ JKMxxxPP-60B-J4 JKMxxxPP-60-W JKMxxxPP-60B-W JKMxxxPP-60B-V ⑥ JKMxxxP-60-V JKMxxxPP-60-V JKMxxxPP-60-V(Plus) JKMxxxPP-60-WV (xxx=200~300, in increment of 5) Group 2...
  • Page 19 Rev. C Group 8 JKMxxxM-60H JKMxxxM-60HB JKMxxxM-60H-V JKMxxxM-60HB-V (xxx =200~340, in increment of 5) JKMxxxM-60HL JKMxxxM-60HBL JKMxxxM-60HL-V JKMxxxM-60HBL-V (xxx =300~340, in increment of 5) Group 9 JKMSxxxM-60 JKMSxxxM-60-J4 JKMSxxxM-60-W (xxx =200~295, in increment of 5) Group 10 JKMxxxM-72 JKMxxxM-72B JKMxxxM-72-J4 JKMxxxM-72B-J4 JKMxxxM-72-W JKMxxxM-72B-W...

  • Page 20: Appendix 2： Electrical Specifications

    JKMBxxxN-60HL-TV (xxx =350~365, in increment of 5) Notes：  B: module with black back sheet  J4: the eagle black series module  PP: the eagle series module  Plus: the eagle+ series module  W: module with metal support bar ...
  • Page 21 Rev. C Short-circuit Current 8.92 8.98 9.03 9.09 9.15 9.20 9.26 9.32 9.37 9.43 9.49 9.59 (Isc, A) Maximum system 1000VDC/1500VDC Voltage Normal PV module :1650x992x40mm (64.97×39.05 x1.57 inch) Large cell PV module :1665x1002x40mm (65.55×39.45 x1.57 inch) Half-cut PV module:1665x992x40mm (65.55×39.05 x1.57 inch) Large cell Half-cut PV module :1684x1002x40mm (66.30×39.45 x1.57 inch) Dimensions Large cell PV module :1665x1002x35mm (65.55×39.45 x1.38 inch)
  • Page 22 Short-circuit 9.17 9.23 9.32 9.39 9.45 9.51 9.57 9.58 Current (Isc, A) Maximum system Voltage 1000VDC Normal PV module :1650x992x40mm (64.97×39.05 x1.57 inch) Large cell PV module :1665x1002x40mm (65.55×39.45 x1.57 inch) Dimensions Large cell PV module :1665x1002x35mm (65.55×39.45 x1.38 inch) Normal PV module :1650x992x35mm (64.97×39.05 x1.38 inch) Maximum series overcurrent protective device rating...
  • Page 23 Rev. C Normal PV module :1956x992x40mm (77.01×39.05 x1.57 inch) Large cell PV module :1979x1002x40mm (77.91×39.45 x1.57 inch) Dimensions Half-cut PV module:1987x992x40mm (78.23×39.05 x1.57 inch) Large cell Half-cut PV module :2008x1002x40mm (79.06×39.45 x1.57 inch) Half-cut PV module:2000x992x40mm (78.74×39.05 x1.57 inch) Maximum series overcurrent protective device rating...
  • Page 24 Large cell PV module :1979x1002x40mm (77.91×39.45 x1.57 inch) Maximum series overcurrent protective device rating Module Type Group 9 xxx = Maximum Power at STC (Pmax, Wp) Maximum Power 28.2 28.4 28.6 28.8 29.0 29.2 29.4 29.6 29.8 30.1 Voltage (Vmp, V) Maximum Power 7.09 7.22...
  • Page 25 Rev. C device rating Module Type Group 7 and Group 8 xxx = Maximum Power at STC (Pmax, Wp) Maximum Power 28.2 28.4 28.6 28.8 29.0 29.2 29.4 29.6 29.8 30.1 Voltage (Vmp, V) Maximum Power 7.09 7.22 7.34 7.47 7.59 7.71 7.82...
  • Page 26 Maximum system 1000VDC/1500VDC Voltage Normal PV module :1650x992x40mm (64.97×39.05 x1.57 inch) Half-cut PV module:1665x992x40mm (65.55×39.05 x1.57 inch) Large cell PV module :1665x1002x35mm (65.55×39.45 x1.38 inch) Dimensions Normal PV module :1650x992x35mm (64.97×39.05 x1.38 inch) Half-cut PV module:1665x992x35mm (65.55×39.05 x1.38 inch) Large cell Half-cut PV module :1684x1002x35mm (66.30×39.45 x1.38 inch) Maximum series overcurrent protective...
  • Page 27 Rev. C Module Type Group 10 and Group 11 Group 11 xxx = Maximum Power at STC (Pmax, Wp) Maximum Power 40.2 40.5 40.8 41.1 41.4 41.7 42.0 42.3 Voltage (Vmp, V) Maximum Power 9.33 9.39 9.44 9.49 9.55 9.65 9.69 Current (Imp, A) Open-circuit...
  • Page 28 Module Type Group 12 xxx= Maximum Power at STC (Pmax, Wp) Maximum Power 37.4 37.6 37.8 38.0 38.2 38.4 38.7 38.9 39.1 39.3 Voltage(Vmp, V) Maximum Power 8.29 8.38 8.47 8.55 8.64 8.72 8.79 8.87 8.94 9.04 Current (Imp, A) Open-circuit 45.9 46.1...
  • Page 29 Rev. C Maximum Power 39.25 39.36 39.50 39.62 39.83 40.01 40.19 40.38 40.50 40.65 Voltage(Vmp, V) Maximum Power 10.46 10.57 10.68 10.77 10.86 10.94 11.03 11.11 11.22 11.31 Current (Imp, A) Open-circuit 47.92 47.96 48.10 48.14 48.26 48.35 48.45 48.56 48.64 48.74 Voltage(Voc, V)
  • Page 30 Dimensions 1704*1008*35 (67.09*39.69*1.38 inch) Maximum series overcurrent protective device rating φIsc=[Isc(back)]/[Isc(front)]= 0.71 φVoc=[Voc(back)]/[Voc(front)]= 0.98 Bifaciality Coefficient φPmmp=[Pmmp(back)]/[Pmmp(front)]= 0.70 Module Type Group 15 xxx = Maximum Power at STC (Pmax, Wp) Maximum PowerVoltage (Vmp, V) 39.32 39.43 39.53 39.64 39.74 39.85 Maximum PowerCurrent (Imp, A) 9.54 9.64...
  • Page 31 Rev. C Maximum Power Voltage (Vmp, V) 33.00 33.17 33.38 33.51 Maximum Power Current (Imp, A) 9.55 9.65 9.74 9.85 Open-circuit Voltage (Voc, V) 40.19 40.32 40.43 40.56 Short-circuit Current (Isc, A) 10.12 10.23 10.32 10.43 Module Type Group 16 xxx = Maximum Power at BSTC (Pmax, Wp) Maximum Power Voltage(Vmp, V)
  • Page 32 Note _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ - 30 -...

  • Page 33: Contact Us

    Jinko Solar Co., Ltd. (Shanghai Office) Jinko Building, #99 Shouyang Road, Jingan District, Shanghai, China Postcode: 200127 Tel :(86)-21-51838777 Fax :(86)-21-51808600 Jinko Solar Co., Ltd. (Jiangxi Manufacture base) No.1 Jinko Road, Shangrao Economic Development Zone, Jiangxi Province, China Postcode: 334100 Tel:(86)-793-8588188 Fax:(86)-793-8461152 Jinko solar Import and Export co., LTD...
  • Page 34 Global Sales & Marketing Center Jiangxi Manufacture Base Zhejiang Manufacture Base Jinko Building No.1 Jinko Road, No.58 Yuanxi Road, Shangrao Economic Development Zone, Haining Yuanhua Industrial Park, #99 Shouyang Road, Jingan District, Jiangxi Province, China 334100 Zhejiang Province, China 314416 Shanghai, China 200027 Tel:+86 793 858 8188 Tel: +86 573 8798 5678...
