Summary of Contents for Clay Paky Odeon Flood Series
- Page 2 It is essential to know the information supplied in this manual in order to ensure that the fitting is installed, used and serviced correctly and safely. CLAY PAKY S.p.A. disclaims all liability for damage to the fitting or to the other property or persons deriving from installation, use and maintenance that have not been carried out in conformity with this instructions manual, which must always accompany the fitting.
-
Page 3: Table Of Contents

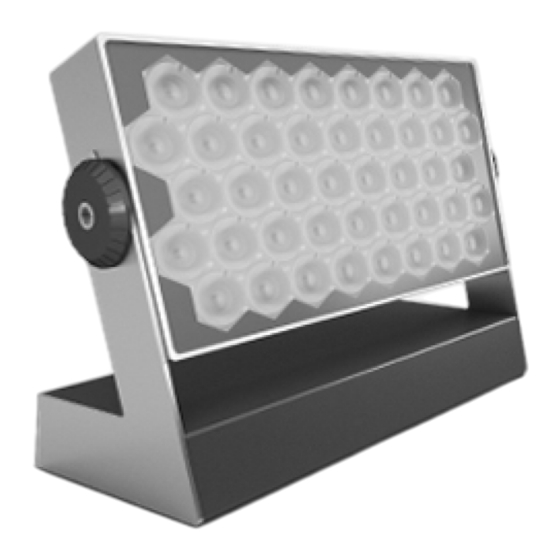

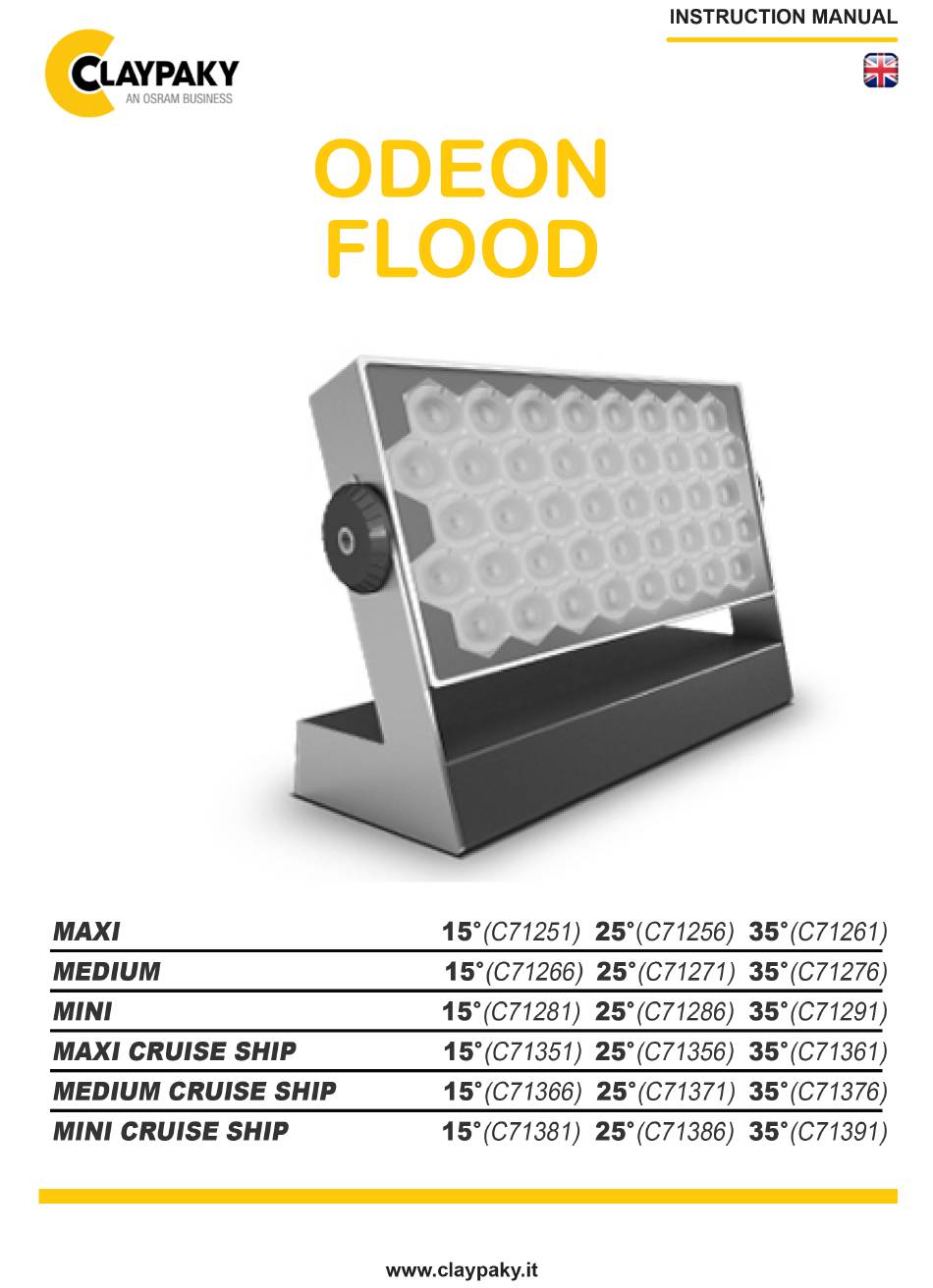

CONTENT ODEON FLOOD The Odeon Flood family is a range of compact floodlights for architectural use, available with various optical units (15°, 25° and 35°) and aesthetic finishes. They feature high-power multi-chip LED technology, which ensures excellent color mixing and per- fect DMX/RDM dimming. -
Page 4: Safety Information
You may always download the multilingual Safety Instruction manual for this Clay Paky product from: http://www.claypaky.it/en/download Ref: [FIS013 - Safety Information Odeon Flood] INFORMAZIONI DI SICUREZZA Puoi sempre scaricare la versione multilingue delle Informazioni di Sicurezza per questo prodotto Clay Paky al seguente link: http://www.claypaky.it/en/download Rif: [FIS013 - Safety Information Odeon Flood] INFORMATIONEN ZUR SICHERHEIT Sie können die mehrsprachige Version des Handbuchs mit Sicherheitshinweisen für dieses Clay Paky-Produkt unter... -
Page 5: Unpacking And Preparation
ODEON FLOOD UNPACKING AND PREPARATION 2. UNPACKING AND PREPARATION Fig. 1 - Packing content... -
Page 6: Installation And Start-Up
ODEON FLOOD INSTALLATION AND START-UP 3. INSTALLATION AND START-UP ODEON FLOOD MAXI—MEDIUM—MINI INSTALLATION INSTRUCTIONS ODEON FLOOD MAXI—MEDIUM—MINI INSTALLATION INSTRUCTIONS APPLIED TO THE PRODUCT APPLIED TO THE PRODUCT ODEON FLOOD MAXI 15° RGBW ODEON FLOOD MAXI 25° RGBW ODEON FLOOD MAXI 35° RGBW ODEON FLOOD MAXI 15°... - Page 7 ODEON FLOOD...
-
Page 8: Dmx Connections
ODEON FLOOD DMX CONNECTIONS 4. DMX Connections ODEON CABLE FROM TO NEXT FIXTURE OR FIXTURE CONTROLLER EXAMPLE OF DMX CONNECTION VIA COMMERCIAL JUNCTION BOX IP 65 (NOT INCLUDED) CABLE Fig. 2 - Connections to the control signal line (DMX) Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ω characteristic impedance, 22-24 AWG, low capacity. -
Page 9: Maintenance
ODEON FLOOD MAINTENANCE 5. MAINTENANCE Parts requiring frequent cleaning. Fig. 3 - Periodic cleaning To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The frequency with which the following operations are to be carried out depends on various factors such as wear and the work environment quality (air humidity, dust, salinity, etc.). -
Page 10: Technical Data
ODEON FLOOD TECHNICAL DATA 6. TECHNICAL DATA _ ODEON FLOOD POWER Universal AC input 90-305 Vac @ 50/60 Hz LIGHT SOURCE High power multichip OSRAM LEDS; LED technology with exclusive “Hexeel” optical system LED LIFE 80,000 hrs [L70@25°C] OPTICS Three optics available: 15° (narrow), 25° (medium), 35° (flood) COLORS RGBW color mixing LIGHT INTENSITY...
