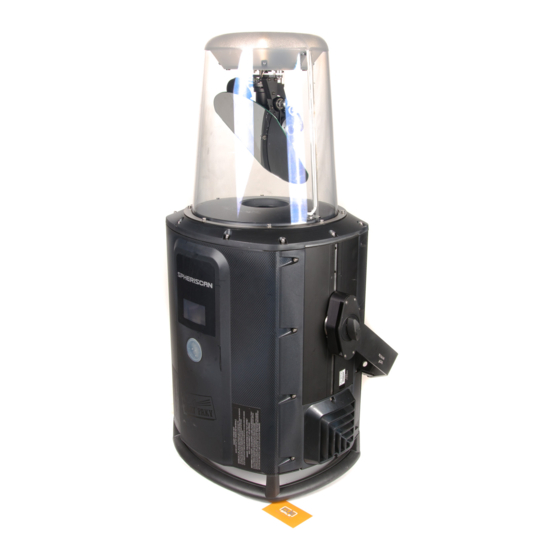

INSTRUCTION MANUAL
Congratulations on choosing a Clay Paky product!
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.
1
C11260
C11270

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPHERISCAN C11260 and is the answer not in the manual?

Questions and answers

Summary of Contents for Clay Paky SPHERISCAN C11260

  • Page 1: Table Of Contents

    SPHERISCAN C11270 SPHERILIGHT INSTRUCTION MANUAL INDEX Congratulations on choosing a Clay Paky product! Page Contents We thank you for your custom. Please note that this product, as all the others in the rich Clay Paky range, has been designed and made with total quality to...
  • Page 2: Safety Information

    CLAY PAKY S.p.A. disclaims all liability for damage to the fitting or to other property or persons deriving from installation, use and maintenance that have not been carried out in conformity with this instruction manual, which must always accompany the fitting.
  • Page 3 You may always download the multilingual Safety Instruction manual for this Clay Paky product from: Ref: [FIS00M – Safety Information Spheriscan / Spherilight] COME OTTENERE LE INFORMAZIONI DI SICUREZZA NELLA vERSIONE MULTILINGUE Puoi sempre scaricare la versione multilingue delle Informazioni di Sicurezza per questo prodotto Clay Paky al http://www.claypaky.it/en/download seguente link: Rif: [FIS00M –...
  • Page 4: Unpacking And Preparation

    UNPACKING AND PREPARATION Packing contents - Fig. 1 Installing the projector - Fig. 2 wARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/001 available on request). The projector can be installed on the floor resting, on a truss or on the ceiling or wall. This must be securely fixed to the support structure of the projector and then connected to the fixing point as shown on the pictures above.
  • Page 5: Installation And Start-Up

    INSTALLATION AND START-UP Connecting and disconnecting power cable - Fig. 3 SPHERISCAN SPHERILIGHT...
  • Page 6: Control Panel

    CONTROL PANEL Mains Connecting to the mains supply - Fig. 4 Connecting to the control signal line (DMX) - Fig. 5 Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics differing from those specified.
  • Page 7: Level

    Reversal of the display - Fig. 7 To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and Setting the projector starting address maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
  • Page 8: Menu Setting

    MENU SETTING Main Menu Level 1 Level 2 Level 3 Choices / Values DMX Address 001-512 Standard Channel Mode Vector Fixture ID 000-255 Disabled Art-net IP 2.x.x.x. Control Protocol Art-net IP 10.x.x.x. Art-net Custom IP Disabled Repeat on DMX Enabled on primary Universe 000-255 Ethernet Interface...
  • Page 9: Channel

    Main Menu Level 1 Level 2 Level 3 Choices / Values System Errors Read / Reset Total Hours Read Fixture Hours Partial Hours Read / Reset Total Hours Read Lamp Hours Partial Hours Read / Reset Total Strikes Read Lamp Strikes Partial Strikes Read / Reset CPU brd...
  • Page 10: Channel

    Main Menu Level 1 Level 2 Level 3 Choices / Values Lamp On / Off ANUAL Reset Yes / No ONTROL Channel Value / Percentage Pan / Tilt n.a. Colour n.a. Beam n.a. Gobo n.a. n.a. Are you sure ? Upload Firmware Transfer ……..
  • Page 11: Channel

    SET UP MENU DMX ADDRESS PLEASE NOTE: Without the DMX input signal, the displayed address (DMX Address) blinks. It lets you select the address (DMX Address) for the control signal. A DMX address between 001 and 512 can be selected. CHANNEL MODE This lets you select the projector operating mode, selecting one of the two available modes: Standard (see DMX-Channel Function)
  • Page 12: Channel

    OPTIONS MENU LAMP DMX It lets you enable (ON) the lamp remote control channel. Select OFF to turn off or disable this option. PAN / TILT Pan Short-cut Used for optimizing Pan change time (select ON) so that the Pan moves in the direction that requires shorter movement. Select OFF to turn off or disable this option.
  • Page 13: Level

    INFORMATION MENU SYSTEM ERRORS It displays a list of errors that occurred when the projector was turned on. To reset the SYSTEM ERRORS list, press OK. A confirmation message appears (Are you sure you want to clear error list?). Select YES to confirm reset. FIXTURE HOURS It lets you view projector working hours (total and partial).
  • Page 14: Spheriscan Spherilight

    FANS MONITOR It lets you view the speed of each fan installed in the projector: • Board (board cooling fan) Lamp (lamp cooling fan) • Ball.IN (Ballast cooling fan, air-flow IN) • Effect.IN (Effects cooling fan, air-flow IN) • SENSOR STATUS It lets you check the correct operations of each "sensor”...
  • Page 15: Channel

    MANUAL CONTROL LAMP It lets you turn the lamp on (ON) or off (OFF) from the projector control panel. RESET It lets you reset the projector from the projector control panel. CHANNEL It lets you set the channel DMX levels from the projector control panel (value between 0 and 255 bit or between 0% and 100%).
  • Page 16: Maintenance

    MAINTENANCE Opening the covers - Fig. 8. SPHERISCAN SPHERILIGHT...
  • Page 17 Fan assembly removal - Fig. 9. Continue SPHERISCAN SPHERILIGHT...
  • Page 18 Fan /Driver assembly removal - Fig. 10. SPHERISCAN SPHERILIGHT...
  • Page 19 • General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky. • General visual check of the internal components, cabling, mechanical parts, etc.
  • Page 20 Cleaning of the filters - Fig. 12. SPHERISCAN SPHERILIGHT...
  • Page 21 Opening and closing lamp compartment - Fig. 13 Lamp change - Fig 14 wARNING: do not touch the lamp’s envelope with bare hands. Should this happen, clean the bulb with a cloth soaked in alcohol and dry it Take the new lamp out of its package and insert in the fitting. with a clean, dry cloth.
  • Page 22 Rotating gobo wheel - Fig. 16. ATTENTION: - before use custom gobos contact Clay Paky; - The original gobos have a special coating designed specifically to resist to the high temperatures; - The rotating gobo wheel only use dichroic glass gobos (it is not possible to use metal gobos);...
  • Page 23 C21090 (21.65") ±0,3 (17.72") (6.38") (15.35") (3.15") (18.50") ±0,5 (20.55") Installation under the stage - Fig. 17. To install the projector under the stage, it is suggested to remove the main bracket and mount the two handles (part number C21090) that allow you to drop easily the projector.
  • Page 24 0° ÷ +45° 0° ÷ -45° 180° 180° 180° 180° 180° How to fit the fans covers - Fig. 18. Depending on how the projector is installed, the covers fan must be positioned so that in case of rain, the water flows in the correct way. SPHERISCAN SPHERILIGHT...
  • Page 25 battery removal - Fig. 19 This product contains a rechargeable lithium iron tetraphosphate battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. LiFePO4 Continue SPHERISCAN SPHERILIGHT...
  • Page 26: Technical Information

    TECHNICAL INFORMATION (21.65") (14.72") (34.88") (34.88") (20.16") (14.09") (16.34") (16.34") (19.57") (20.55") (11.81") (7.24") (7.24") (19.61") (6.38") (7.80") (7.80") (15.20") Power supplies: Dimensions: • N° 1 Graphics Wheel 200/240V 50/60 Hz • (L x W x H): 370 x 390 x 885 mm – with bracket: (Interchangeable with fixed gobo Wheel) Input power: 485 x 500 x 885 mm...
  • Page 27: Cause And Solution Of Problems

    CAUSE AND SOLUTION OF PRObLEMS THE PROJECTOR WILL NOT SWITCH ON PROBLEMS ELECTRONICS NON-OPERATIONAL DEFECTIVE PROJECTION POSSIBLE CAUSES CHECKS AND REMEDIES REDUCED LUMINOSITY No mains supply. Check the power supply voltage. Lamp exhausted or defective. Replace the lamp. (See instructions). Signal transmission cable faulty or disconnected.
  • Page 28: Channel Functions

    CHANNEL FUNCTION Nb: To prevent accidental breakage of the effects, which could collide with each other during transport, SPHERISCAN before switching the projector OFF check that all the projector Channels have been excluded (DMX level = 0%). CHANNEL MODE CHANNEL STANDARD VECTOR CYAN...
  • Page 29: Channel

    Channel Mode Function Value Standard Vector CYAN 0 - 255 Linear Cyan movement MAGENTA 0 - 255 Linear Magenta movement YELLOW 0 - 255 Linear Yellow movement COLOUR 0 - 15 Color 1 16 - 31 Color 2 32 - 47 Color 3 48 - 63 Color 4...
  • Page 30: Channel

    Channel Mode Function Value Standard Vector STATIC GOBO CHANGE 0 - 7 Empty position 8 - 15 Gobo 1 16 - 23 Gobo 2 24 - 31 Gobo 3 32 - 39 Gobo 4 40 - 47 Gobo 5 48 - 55 Gobo 6 56 - 63 Gobo 7...
  • Page 31: Channel

    Channel Mode Function Value Standard Vector GOBO ROTATION 0 - 21 Gobo indexing: 0° to 90° range 21 - 42 Gobo indexing: 90° to 180° range 42 - 63 Gobo indexing: 180° to 270° range 63 - 84 Gobo indexing: 270° to 360° range 84 - 105 Gobo indexing: 360°...
  • Page 32: Channel

    Channel Mode Function Value Standard Vector FUNCTION 0 - 11 Unused range 12 - 24 Fast Pan / Tilt Speed (default) 25 - 37 Normal Pan / Tilt Speed 38 - 50 Conventional Dimmer curve 51 - 62 Linear Dimmer curve (default) 63 -113 Free 114 - 127...
  • Page 33: Channel

    Channel Mode Function Value Standard Vector STRIP LED RED Led OFF 1 - 255 Led light linearly increase from low to maximum intensity STRIP LED GREEN Led OFF 1 - 255 Led light linearly increase from low to maximum intensity STRIP LED BLUE Led OFF 1 - 255...
  • Page 34: Spherilight

    SPHERILIGHT CHANNEL MODE CHANNEL STANDARD VECTOR CYAN CYAN MAGENTA MAGENTA YELLOW YELLOW COLOUR COLOUR STOPPER / STROBE STOPPER / STROBE DIMMER DIMMER FINE DIMMER FINE DIMMER IRIS IRIS STATIC GOBO CHANGE STATIC GOBO CHANGE ROTATING GOBO CHANGE ROTATING GOBO CHANGE GOBO ROTATION GOBO ROTATION FINE GOBO ROTATION...
  • Page 35: Channel

    Channel Mode Function Value Standard Vector CYAN 0 - 255 Linear Cyan movement MAGENTA 0 - 255 Linear Magenta movement YELLOW 0 - 255 Linear Yellow movement COLOUR 0 - 15 Color 1 16 - 31 Color 2 32 - 47 Color 3 48 - 63 Color 4...
  • Page 36: Channel

    Channel Mode Function Value Standard Vector STATIC GOBO CHANGE 0 - 7 Empty position 8 - 15 Gobo 1 16 - 23 Gobo 2 24 - 31 Gobo 3 32 - 39 Gobo 4 40 - 47 Gobo 5 48 - 55 Gobo 6 56 - 63 Gobo 7...
  • Page 37: Channel

    Channel Mode Function Value Standard Vector PRISM INSERTION 0 - 127 Prism out 128 - 255 Prism into the light beam PRISM ROTATION 0 - 21 Prism indexing: 0° to 90° range 21 - 42 Prism indexing: 90° to 180° range 42 - 63 Prism indexing: 180°...
  • Page 38: Channel

    Channel Mode Function Value Standard Vector LAMP CONTROL 0 - 25 Unused range Lamp OFF 26 - 100 Lamp switch-off passing through the unused levels range and staying in this range for 5 seconds Lamp ON 101 - 255 Lamp switch-on passing through the unused levels range and staying in this range for 5 seconds.
  • Page 39 TIME TAbLE Seconds Seconds Seconds Seconds Seconds Seconds Full 10.2 10.4 10.6 Follow cue Data SPHERISCAN SPHERILIGHT...
  • Page 40 CLAY PAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it S.p.A.
