Barska AX11644 User Manual

Barska AX11644 User Manual

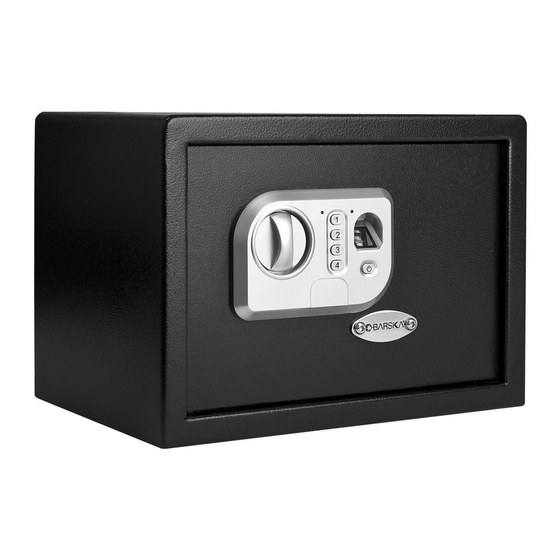

Biometric fingerprint lock safe

Advertisement

Quick Links

User Manual for Biometric
Fingerprint Lock Safe
Parts of the Safe
2
1
4
Parts of the Safe
3. Bolts
1. Removable Shelf
4. Battery Compartment
2. Initialization
2
1
Parts of the Control Panel
3. Fingerprint Scanner
1. Key Pad
4. Confirmation Key
2. Knob
Set Up
Remove special access keys from the inside of safe before set
up and keep them in a safe place
Factory settings have no stored fingerprints
Factory default pin code is "1234"
For security purposes, change the factory default code as soon
as possible
Batteries
1. To replace batteries open safe door and remove
battery cover
2.
Only use four AA alkaline batteries
polarity of the battery
LOW BATTERY INDICATOR
If the red indicator light is flashing or is consistently on, this
indicates that the batteries are low. Open safe by using the
supplied emergency key
Registering a Fingerprint
1. Press and release the initialization button on the inside of the
safe door
2. Immediately place finger on scanner, you will hear two beeps
and one long beep. Remove fingerprint from scanner
3
3. Registration of fingerprint is now complete
4. To add a fingerprint repeat steps 1 through 3
Note
Three short beeps will be heard if fingerprint was NOT
registered successfully. Repeat steps 1-3
For Accurate and Consistent Fingerprint Scanning
- Use scanner in low light conditions
- Use the thumb finger
- Place and hold finger firmly on the scanner
- Each user should register 2-3 different fingerprints
Opening the Door with Fingerprint
1. Press the confirmation key until the scanner illuminates red
2. Place finger on scanner until red illumination ceases
3. The green indicator light will flash and you will hear one beep,
3
indicating a successful scan
4. Turn the knob clockwise and open the safe
4
Note
Three short beeps indicate an unsuccessful fingerprint scan,
repeat steps 1-3
Closing and Locking Door
Close the door and turn the knob counter clockwise
Note
Be sure the door is closed completely
Initial Numeric Pin Code
1. Press and hold number "1" key until green indicator light is on
2. Input pin code and press the confirmation key. You will hear
and be sure to note the
one beep
Note: For initial setup factory default code is "1234"
3. Enter the new pin code (four to eight digits) and press
confirmation key
4. Re-enter the new code and press the confirmation key. You
will hear one beep indicating that the new code is saved
5. Registration of pin code is now complete
Note
If you hear 3 short beeps this indicates that the pin was not
registered
Safe only retains one pin number
Opening the Door with Pin code
1. Enter pin code and press the confirmation key
2. One beep and the scanner flashes green indicates that you
have entered the correct pin
3.
Turn the knob clockwise and open the safe
Note
Three short beep indicates incorrect pin code,
steps 1-3
Closing and Locking Door
Close the door and turn the knob counter clockwise
Note
Be sure the door is closed completely
Changing the Pin Code
1. Press and hold number "1" key until green indicator light
is on
2. Enter the old pin code and press the confirmation key
3. When a beep is heard enter the new pin code
(four to eight digits) and press the confirmation key
4. Enter new pin code and press the confirmation key again.
If a long beep is heard, the adjustment was successful.
Note
If you hear 3 short beeps this indicates that pin was not
succesful, repeat steps 1-4
Safe only retains one pin number
successfully, repeat steps 1-4
repeat
See reverse side for more information
