Eaton Crouse-Hinds IF 1744 Installation & Maintenance Information

Occupancy Sensor
Ordinary Location Controls
Installation & Maintenance Information
APPLICATION
Occupancy sensor kit for industrial LED Luminaire.
• Suitable for ordinary locations only
• Suitable for wet locations, IP66, NEMA 4X
WARNING
To avoid the risk of fire, or electric shock, this product should be
installed, inspected, and maintained by a qualified electrician only,in
accordance with all applicable electrical codes.
WARNING
To avoid electric shock:
Be certain electrical power is OFF before and during installation
and maintenance.
Luminaire must be supplied by a wiring system with an equipment
grounding conductor.
To avoid burning hands:
Make sure luminaire lens and housing are cool when installing
occupancy sensor and performing maintenance.
WARNING
To avoid product degradation: Make sure the wire supply
voltage is the same as the occupancy sensor supply. Do not
operate in ambient temperatures above those indicated on the
luminaire nameplate. Use proper supply wiring as specified on the
luminaire nameplate.
INSTALLATION

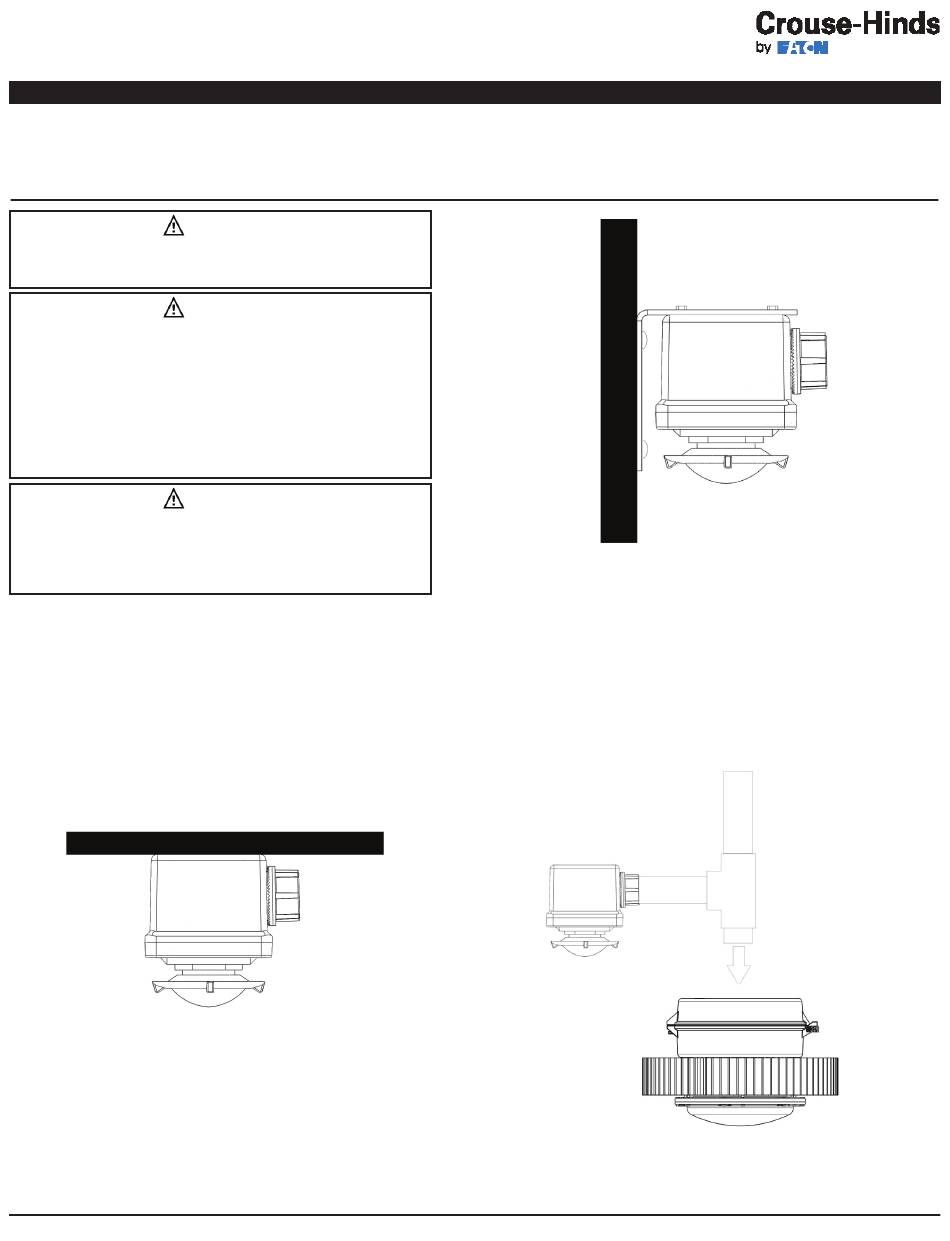

Enclosure Installation
Ceiling Mounting
1. Remove cover from enclosure and let hang by safety chain.
2. Locate installation location and secure to ceiling with customer supplied
hardware. (The enclosure provides 4 thru holes at the corners for the
hardware.)
Note: Sensor lens must face down when installed and have an
unobstructed view.
3. Once wired (see wiring instructions), replace the cover and torque the
included cover screws with 0-rings until fully seated.
Wall Mounting
1. Remove cover from enclosure and let hang by safety chain.
2. Locate installation location and secure the L -brackets to the wall with
customer supplied hardware.
3. Secure L-brackets to the enclosure with included hardware. Torque the
hardware to 25 in-lbs. (The enclosure provides 4 thru holes at the corners
for the L -bracket mounting.) Note: Sensor lens must face down when
installed and have an unobstructed view.
4. Once wired (see wiring instructions), replace the cover and torque the
provided cover screws with 0-rings until fully seated.
IF 1744 • 02/15
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
Copyright © 2015, Eaton's Crouse-Hinds Business
• ORDC/UNV1 120/277 VAC, 50/60Hz, 800W/1200W UL/CUL
230-240 VAC, 50/60Hz, 300W CE
Pendant Mounting (Conduit)
1. Remove cover from enclosure and let hang by safety chain.
2. Remove fixture from conduit and set aside.
3. Install conduit T onto conduit and install pipe nipples onto conduit T.
4. Mount enclosure to horizontal facing pipe nipple. Note: Sensor lens must
face down when installed and have an unobstructed view.
5. Once wired (see wiring instructions), replace the cover and torque the
provided cover screws with 0-rings until fully seated.
6. Mount fixture onto vertically facing pipe nipple.
7 . Plug un-used conduit hub with ¾" plug.
8. Re-install fixture to conduit T.
IF 1744
Page 1
