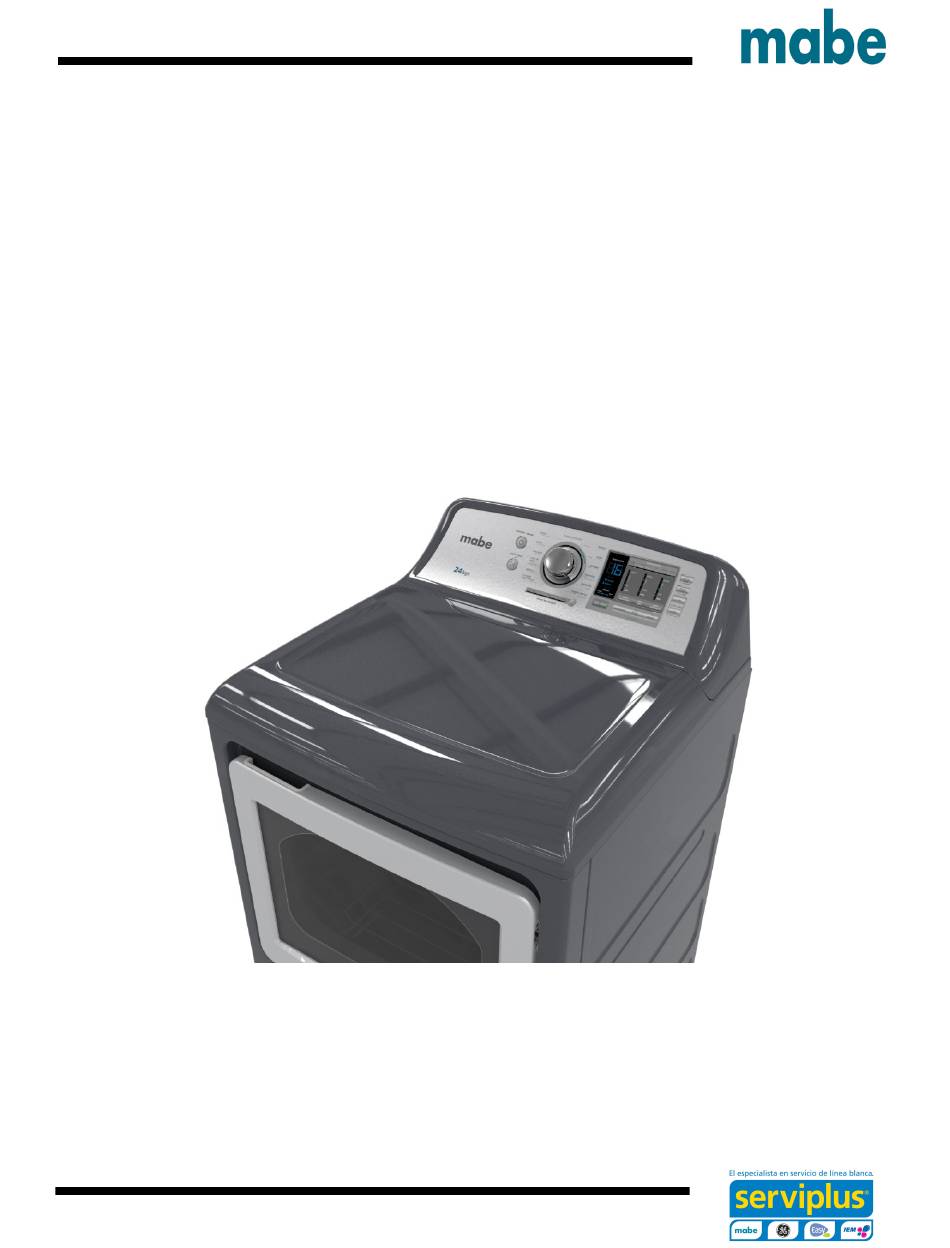

- Page 1 Service Manual March 2017 DRYER KRAKEN MKR62GWTWB MKR62FWTWB XKR72GWTWB XKR72FWTWB Service Engineering - 1 -...
-
Page 2: Table Of Contents
INDEX IMPORTANT SAFETY NOTICE………………………………………………………………..………..3 INTRODUCTION…………………………………………………………………………………………..5 NOMENCLATURE………………………………………………………………………………………...6 MODELS AND ATTRIBUTES..…………………………………………………………………………..7 INSTALLATION INSTRUCTIONS………………………………………………………………………..9 REVERSING THE DOOR……………………..……………………………...………………………..15 TECHNICAL SPECIFICATIONS..………………………………………………………………………18 DEASSEMBLY AND FUNCTIONALITY………………………………………………………………..19 Fallas comunes y soluciones …………………………………………………………………………...25 ELECTRIC DRYER DIAGRAM………………………………………………………………………….28 Service Engineering - 2 -... -
Page 3: Important Safety Notice
IMPORTANT SAFETY NOTICE IMPORTANT SAFETY NOTICE The information in this presentation is intended for use by individuals possessing adequate backgrounds of electrical, electronic, & mechanical experience. Any attempt to repair a major appliance may result in personal injury & property damage. The manufacturer or seller cannot be responsible for the interpretation of this information, nor can it assume any liability in connection with its use. - Page 4 CAUTION Prior to disassembly of the Dryer to access components, Mabe authorized Service Technicians are REQUIRED to follow the Lockout / Tagout (LOTO) 6 Step Process Step 1 Step 4 Plan and Prepare Apply LOTO device & Lock Step 5...
-
Page 5: Introduction
INTRODUCTION The Dryer Kraken platform replaces the previous versions of mabe dryers with a new style that combines with washers Kraken and includes special voltages for specific countries. Dryer Kraken offers energy saving due use less energy to generate heat and save gas. -
Page 6: Nomenclature
NOMENCLATURE Nomenclature: At the back of the dryer on the rear panel is the model and serial number of the dryer. With the next nomenclature: 0516SS50001 Serial Number Description Month Year Consecutive number assigned by Dryer Constant. (MM) (YY) the manufacturer site. 50001 Service Engineering - 6 -... -
Page 7: Models And Attributes
MODELS AND ATTRIBUTES Main improvements: • New backsplash that match with Kraken washers. MKR62GWTWB MKR62FWTWB XKR72GWTWB XKR72FWTWB • New knobs that goes with the design of Kraken washers. • New metallic cover that combines with the Kraken washer. • New handle integrated at the door. - Page 8 • New lint filter design. • Some models include a LED light to illuminate the interior of the dryer. • The drum has an organic cover, resistant to corrosion, that reflects the heat faster and allows save energy per each dry cycle. Service Engineering - 8 -...
-
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS Unpacking your dryer • Tilt the dryer sideways and remove the foam shipping pads by pulling at the sides and breaking them away from the dryer legs. Be sure to remove all of the foam pieces around the legs. Remove literature and bag containing accessories. - Page 10 Service Engineering - 10 -...
- Page 11 For electrical connections using a power cord: Disconnect power before making electrical connections. Connect neutral wire (white or center wire) to center terminal. Ground wire (green or bare wire) must be connected to green ground connector. Connect remaining two supply wires to remaining two terminals. Securely tighten all electrical connections.
- Page 12 CONNECTING DRYER. If required, by local code, install external ground (not provided) to grounded metal, cold water pipe, or other established ground determined by a qualified electrician. 1. Turn off the circuit breaker(s) (30 amp) or remove the dryer’s circuit fuse at the electrical box. 2.
- Page 13 EXHAUSTING THE DRYER Using exhaust longer than specified length will: • Increase the drying times and the energy cost. • Reduce the dryer life. • Accumulate lint, creating a potential fire hazard. The correct exhaust installation is YOUR RESPONSIBILITY. Problems due to incorrect installation are not covered by the warranty. The MAXIMUM ALLOWABLE length of the exhaust system depends upon the type of duct, number of turns, the type of...
- Page 14 STANDARD REAR EXHAUST We recommend that you install your dryer before installing your washer. This will permit direct access for easier exhaust connection. Slide the end of the exhaust duct on the back of the dryer and secure with duct tape or a duct clamp. NOTE: We strongly recommend using rigid metal exhaust duct.
-
Page 15: Reversing The Door
REVERSING THE DOOR REVERSING THE DOOR SOLID DOOR MODELS 1. Open the door approximately 130 degrees. With a putty knife, remove the 4 plastic caps located along the left side of the front panel and set them aside. Remove the bottom screw from each hinge (right side) and partially insert them into each top hinge hole on the left side. - Page 16 REVERSING THE DOOR - GLASS PANEL DOOR MODELS 1. Open the door approximately 130 degrees. With a putty knife, remove the 4 plastic caps located along the left side of the front panel and set them aside. 2. Remove the bottom screw from each hinge (right side) and partially insert them into each top hinge hole on the left side NOTE: All 4 front panel hinge screws will now be in the top hinge holes - 2 on the left and 2 on the right.
- Page 17 7. Rotate the outer door 180 degrees, mount the inner door back into the outer door frame and secure with the screws removed in step 5. Make sure you mount the hinges on the side opposite the pocket. 8. Mount the assembled door on the 2 upper left side hinge screws installed in step 2.
-
Page 18: Technical Specifications
TECHNICAL SPECIFICATIONS Model Electrical Maximum Requeriments Sistem load MKR62GWTWB 220-240V/50 Hz Electric 10kg MKR62FWTWB 220-240V/60 Hz Electric 10kg XKR72GWTWB 220-240V/50 Hz Electric 11kg XKR72FWTWB 220-240V/60 Hz Electric 11kg Technical Specification Operational 60Hz 50Hz Frequency 220V~ 220V~ Supply Voltage Nominal current THE DRYER OPERATION On front view the drum rotates clockwise at 48 to 54 rpm. -
Page 19: Deassembly And Functionality
DEASSEMBLY AND FUNCTIONALITY THE DRYER COMPONENTS To access at the inner of the dryer you will need to remove two screws at the front panel of the washer. Also remove the two screws of the backsplash dryer. Tilt the backsplash with precaution to the top cover, the harness still connected to the main board. Service Engineering - 19 -... - Page 20 Unplug the harness from the timmer and selectors, retrive the harness carefully. Remove the screws from the covers to free the harness. Remove the screws form the drum cover to remove easily the drum. Service Engineering - 20 -...
- Page 21 Remove the front panel. Led / light Sliders Upper Cushine Inside view front panel. Seal Colector Duct Humidity sensor Seal To reach the motor it is neccesary remove the screws as shown. Service Engineering - 21 -...
- Page 22 Inner view of Dryer Harness & Thermostat Hot panel & resistances Rear panel Exhaust Side panel Tube Motor Pulley Asm Blower cover Assembly Blower Service Engineering - 22 -...
- Page 23 Air flow and seals. For the correct development of temperature control and safety systems is necessary a good air flow through the dryer. The air is pulled from the inner front part of the box and it is heated through the resistances at the hot cover situated behind the drum.
- Page 24 Control Board (Only for XKR72GWTWB & XKR72FWTWB models) WW02F00710 Conector Description Pin measure Pin Voltage Additional comments Line Neutro 1 y 3 240 VAC Control board power supply Neutro 1 y 8 24 VDC Direct Current Voltage Timer 1 y 4 240 VAC Motor When the load is almost Dry...
-
Page 25: Fallas Comunes Y Soluciones
TROUBLESHOOTING Problem Possible Causes What To Do Dryer is unplugged Dryer doesn’t start • Make sure the dryer plug is pushed completely into the outlet. Fuse is blown/circuit breaker is • Check the house fuse/circuit breaker box and tripped replace fuse or reset breaker. NOTE: Most electric dryers use two fuses/breakers. - Page 26 Lint filter is full • Clean lint filter before every load. Improper or obstructed ducting • Check installation instructions for proper ducting/venting. • Make sure ducting is clean, free of kinks and unobstructed. • Check to see if outside wall damper operates easily.
- Page 27 Water on floor in Loose water hose connection to • Tighten connection. back of dryer valve Hose missing rubber washer at • Install rubber washer provided with hose. connection with valve Clothes still The door was opened mid-cycle • A dry cycle must be re-selected each time a The load was then removed from new load is put in.
-
Page 28: Electric Dryer Diagram
ELECTRIC DRYER DIAGRAM At the inner of the backsplash is located the next information MKR62FWTWB & MKR62GWTWB Service Engineering - 28 -... - Page 29 XKR72GWTWB & XKR72FWTWB Service Engineering - 29 -...
