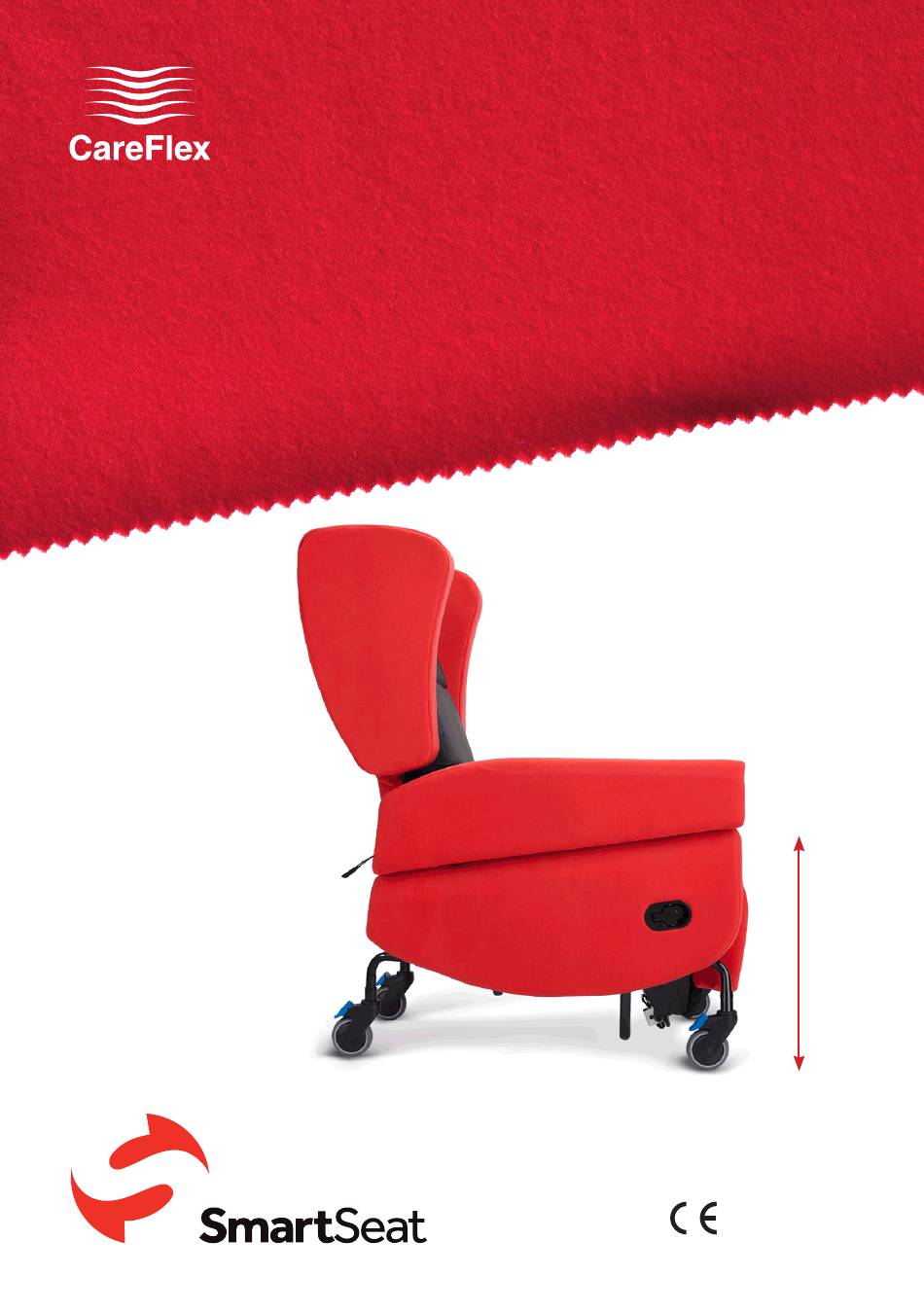

- Page 1 UI SmartSeat seat height supplemental iss02, 07/2014 CareFlexibility The CareFlex SmartSeat Seat Height Adjustment Class 1 Medical Device...
- Page 2 These are the user instructions for adjusting seat to floor height on the SmartSeat specialist seating system from CareFlex. Please read them carefully before using the chair and keep them in a safe place for future reference. Adjusting seat to floor height is simple...
- Page 3 UI SmartSeat seat height supplemental iss02, 07/2014 Adjusting seat height takes approximately 15 minutes. The chair can be adjusted one side at a time but both sides must be adjusted to the same height before the chair is used. Begin the process by tilting the chair forward into its upright position.
- Page 4 UI SmartSeat seat height supplemental iss02, 07/2014 SmartSeat When adjusting a manual chair, undo the screws which hold the legrest release lever in place on the right side of the chair. Use a cross-head screwdriver to undo the screws and carefully pull the lever out of its aperture.
- Page 5 UI SmartSeat seat height supplemental iss02, 07/2014 The seat to floor height of the chair is controlled by an adjustment point on either side of the chair where the castor frame attaches to the pivot plates of the seat frame. The pivot plates have height settings on the front and back edges.
- Page 6 UI SmartSeat seat height supplemental iss02, 07/2014 SmartSeat Repeat the procedure for the other side of the chair, making sure that the height setting is the same on either side of the chair before re-fitting the side panels. To re-position the side panels use the nuts which were removed earlier.
- Page 7 UI SmartSeat seat height supplemental iss02, 07/2014 If the covers of the side panels pull away from under the arm mounting trim plates, loosen the screws holding the trim plates in position and tuck the edge of the cover back under the trim plate.
