AXIS M7014 Video Encoder

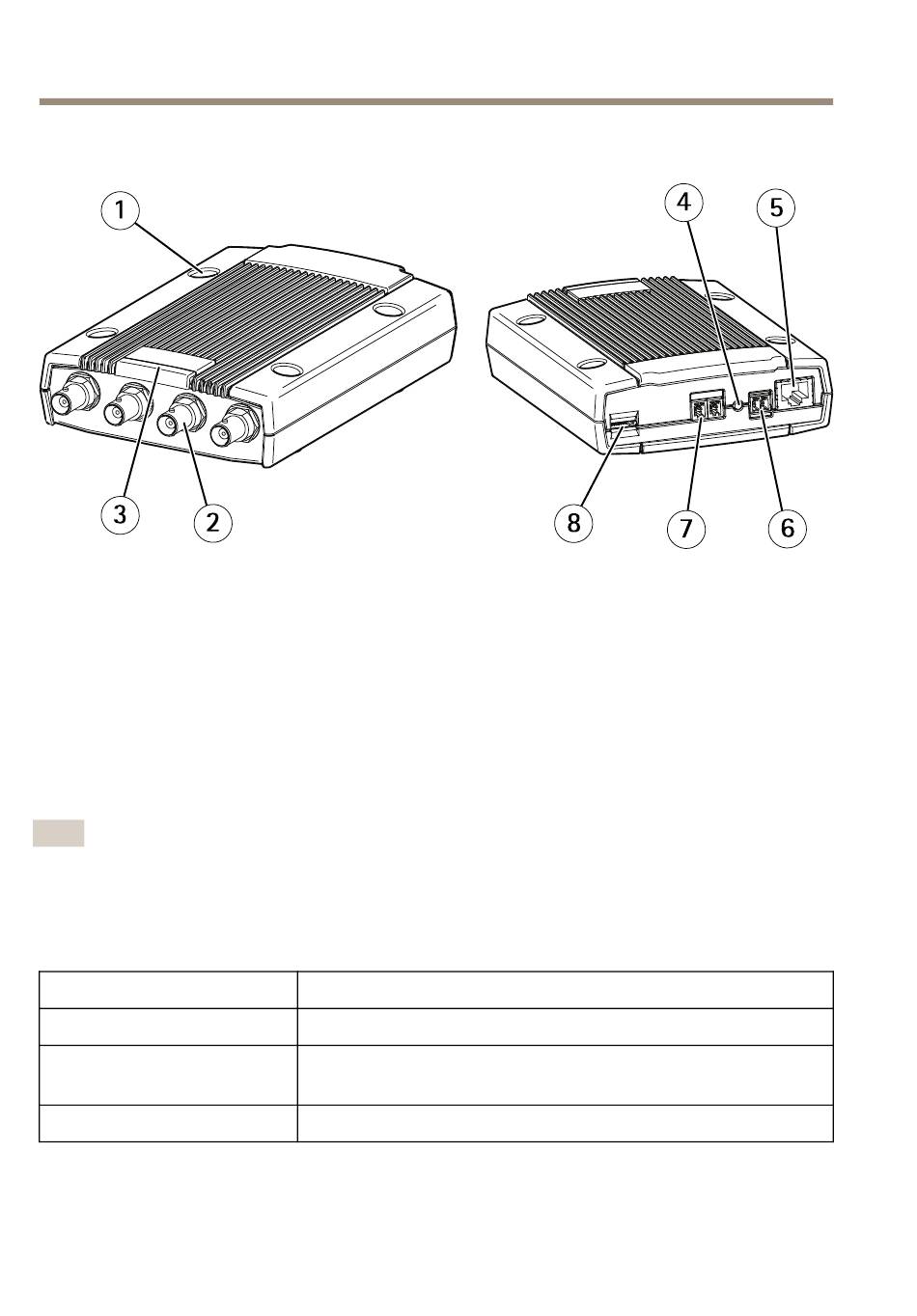

Hardware Overview

1 Mounting holes
2
BNC connector
3
LED indicators for power, status, network
4
Control button
5
Network connector (PoE)
6
Power connector
7
RS485/RS422 connector
8
microSD card slot
LED Indicators
Note
• The Status LED can be configured to be unlit during normal operation. To configure, go
to Setup > System Options > Ports & Devices > LED. See the online help for more
information.
• The Status LED can be configured to flash while an event is active.
Status LED
Green
Amber
Red
Indication
Steady green for normal operation.
Steady during startup, during reset to factory default or when
restoring settings.
Flashes red for firmware upgrade failure.
