USER MANUAL

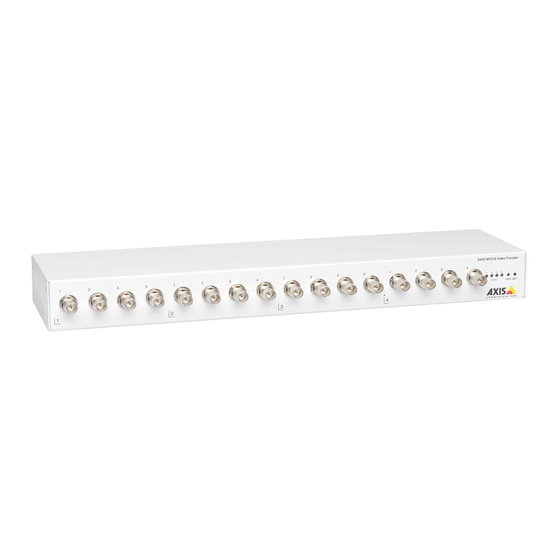

AXIS M7016 Video Encoder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M7016 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis M7016

Summary of Contents for Axis M7016

  • Page 1 USER MANUAL AXIS M7016 Video Encoder...
  • Page 2 This manual is intended for administrators and users of the • Low Voltage (LVD) Directive 2006/95/EC. See Safety, on page 2 . AXIS M7016 Video Encoder, and is applicable to firmware 5.4 and • Restrictions of Hazardous Substances (RoHS) Directive 2011/65/EU.
  • Page 3 • find answers to resolved problems in the FAQ database. Search by product, category, or phrase • report problems to Axis support staff by logging in to your private support area • chat with Axis support staff (selected countries only) •...

  • Page 4: Table Of Contents

    AXIS Media Control (AMC) ........

  • Page 5: Hardware Overview

    AXIS M7016 Video Encoder Hardware Overview Hardware Overview Video input connector BNC x16 Status LED 1–4 Power LED Network activity LED RJ45 Power connector Network connector RJ45 Card slot microSD x4 RS-485/422 connector x4 Control button x4 Protective earth Connectors and Buttons For technical specifications, see page 50.

  • Page 6: Led Indicators

    Resetting the product to factory default settings. See page 45. • Connecting to an AXIS Video Hosting System service. See page 38. To connect, press and hold the button for about 1 second until the Status LED flashes green. •...

  • Page 7: Accessing The Product

    Macintosh computer (Mac OS X), click on the Bonjour tab and select the product from the drop-down list. If you do not know the IP address, use AXIS IP Utility to locate the product on the network. For information about how to discover and assign an IP address, see the Installation and Management Software CD or the document Assign an IP Address and Access the Video Stream on Axis Support web at www.axis.com/techsup...

  • Page 8: Access From The Internet

    Set the Root Password To access the Axis product, you must set the password for the default administrator user root. This is done in the Configure Root Password dialog, which appears when the product is accessed for the first time.

  • Page 9: The Live View Page

    2. Under Action Buttons, select Show manual trigger button. AXIS Media Control viewer toolbar The AXIS Media Control viewer toolbar is available in Internet Explorer only. See AXIS Media Control (AMC), on page 11 for more information. The toolbar displays the following buttons:...
  • Page 10 AXIS M7016 Video Encoder Accessing the Product The Play button connects to the Axis product and starts playing a media stream. The Stop button stops the media stream. The Snapshot button takes a snapshot of the video image. The location where the image is saved can be specified in the AMC Control Panel.

  • Page 11: Media Streams

    Note also that all multicast viewers count as one unicast viewer in the maximum total of 20 simultaneous connections. AXIS Media Control negotiates with the Axis product to determine the transport protocol to use. The order of priority, listed in the AMC Control Panel, can be changed and the options disabled, to suit specific requirements.

  • Page 12: Alternative Methods Of Accessing The Video Stream

    AXIS M7016 Video Encoder Media Streams The AMC Control Panel can be used to configure various video settings. Please see the AXIS Media Control User’s Manual for more information. The AMC Control Panel is automatically installed on first use, after which it can be configured. Open the AMC Control Panel from: •...
  • Page 13 • The Axis product supports QuickTime 6.5.1 and later. • QuickTime adds latency to the video stream. • It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee this.

  • Page 14: Setting Up The Product

    Setting Up the Product Setting Up the Product The Axis product can be configured by users with administrator or operator rights. To open the product’s Setup pages, click Setup in the top right-hand corner of the Live View page. •...

  • Page 15: Video

    AXIS M7016 Video Encoder Video Video It is possible to configure the following video features in your Axis product: • Video stream. See page 15. • Stream profiles. See page 16. • Camera settings. See page 17. • Overlay image. See page 17.

  • Page 16: Quad Stream

    The Axis product supports two H.264 profiles. The Main profile provides higher compression than the Baseline profile with the same video quality, but requires more processing power to decode.

  • Page 17: Camera Settings

    To select a default stream profile for the Live View page, go to Setup > Live View Config. Camera Settings The Video > Camera Settings page provides access to advanced image settings for the Axis product. Image Appearance The image Brightness can be adjusted in the range 0–100, where a higher value produces a brighter image.
  • Page 18 To set up a dynamic mask, which will always mask the specified part of monitored area, see Privacy Mask, on page 19 To use an overlay image, the image must first be uploaded to the Axis product: 1. Go to Video > Overlay Image.

  • Page 19: Privacy Mask

    A privacy mask is an area of solid color that prohibits users from viewing parts of the monitored area. Privacy masks cannot be bypassed via the VAPIX® Application Programming Interface (API). The Privacy Mask List (Video > Privacy Mask) shows all the masks that are currently configured in the Axis product and indicates if they are enabled.

  • Page 20: Live View Config

    AXIS M7016 Video Encoder Live View Config Live View Config You can customize the Live View page and alter it to suit your requirements. It is possible to define the following features of the Live View page. • Stream Profile. See page 16.
  • Page 21 Viewer Settings To configure options for the viewer, go to Live View Config > Viewer Settings. • Select Show viewer toolbar to display the AXIS Media Control (AMC) or the QuickTime viewer toolbar under the video image in your browser. •...

  • Page 22: Ptz (Pan Tilt Zoom)

    AXIS M7016 Video Encoder PTZ (Pan Tilt Zoom) PTZ (Pan Tilt Zoom) The PTZ menu is available if a PTZ driver has been uploaded. See Installing a PTZ driver, on page 23. Preset Positions A preset position is a predefined view that can be used to quickly steer the camera to a specific location. Preset positions can be accessed in several ways: •...

  • Page 23: Guard Tour

    For more information see the online help Installing a PTZ driver This Axis product supports several PTZ devices. Please see www.axis.com for a complete list of supported devices, and to obtain the correct driver. To install a PTZ device you need to install the PTZ driver.

  • Page 24: Osd Menu

    60 seconds after the last PTZ control command. 2. Event — The Axis product can be configured to go to a preset position when triggered by an alarm (see Events, on page 28). The event will immediately be placed first in the queue except when an administrator is in control.

  • Page 25: Detectors

    Motion Detection Parameters, on page 26. Once motion detection windows are configured, the Axis product can be configured to perform actions when motion is detected. Possible actions include uploading images and start recording. For more information, see Setting Up an Action Rule, on page 29.
  • Page 26 AXIS M7016 Video Encoder Detectors Note • Using the motion detection feature may decrease the product’s overall performance. • The position of the Motion Detection Window is relative to the orientation of the Camera. Changing the orientation of the camera will also change the position of the Motion Detection Window.
  • Page 27 AXIS M7016 Video Encoder Detectors A large difference in luminance Medium level (50%) is required to trigger motion detection. Even very small objects trigger An object that appears in Only very bright objects on Low level (0%) motion detection. the window triggers motion...

  • Page 28: Events

    Events The Axis product can be configured to perform actions when different events occur, for example, start a recording when motion is detected. The set of conditions that defines how and when the action is triggered is called an Action Rule.

  • Page 29: Setting Up An Action Rule

    AXIS M7016 Video Encoder Events Recurrence – Trigger the rule periodically. SeeRecurrences, on page 31. This can for example be used to upload an image every 5 minutes. Use Schedule – Trigger the rule according to the selected schedule. See Schedules, on page 31.

  • Page 30: Recipients

    AXIS M7016 Video Encoder Events The recording Duration of some actions can be set to include time immediately before and after the event. Select Pre-trigger time and/or Post-trigger time and enter the number of seconds. When While the rule is active is enabled and the action is triggered again during the post-trigger time, the recording time will be extended with another post-trigger time period.

  • Page 31: Schedules

    Optionally, select Use encryption to send emails over an encrypted connection. The server certificate can be validated using the certificates available in the Axis product. For information on how to upload certificates, see Certificates, on page 35.

  • Page 32: Recordings 31

    Continuous Recording The Axis product can be configured to continuously save video to a storage device. See Storage, on page 41 for more information about storage devices. To prevent the disk from becoming full, it is recommended to configure the disk to automatically remove old recordings.

  • Page 33: Languages

    Languages Multiple languages can be installed in the Axis product. All web pages including the online help will be displayed in the selected language. To switch languages, go to Setup > Languages and first upload the new language file. Browse and locate the file and click the Upload Language button.

  • Page 34: System Options

    IP address filtering is enabled on the System Options > Security > IP Address Filter page. Once enabled, the listed IP address are allowed or denied access to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.
  • Page 35 Axis product: Server/Client certificates - to authenticate the Axis product CA certificates - to authenticate peer certificates, for example the certificate of an authentication server in case the Axis product is connected to an IEEE 802.1X protected network.

  • Page 36: Date & Time

    To include date and time in the overlay text, go to Video and select Include date and Include time. Network Basic TCP/IP Settings The Axis product supports IP version 4 and IP version 6. Both versions can be enabled simultaneously, and at least one version must always be enabled.
  • Page 37 System Options IPv4 Address Configuration By default, the Axis product is set to use IPv4 (IP version 4) and to obtain the IP address automatically via DHCP. The IPv4 settings are configured under System Options > Network > TCP/IP > Basic.
  • Page 38 To make manual settings, select Use the following DNS server address and specify the following: Domain name - Enter the domain(s) to search for the host name used by the Axis product. Multiple domains can be separated by semicolons. The host name is always the first part of a fully qualified domain name, for example, myserver is the host name in the fully qualified domain name myserver.mycompany.com where mycompany.com is the domain name.
  • Page 39 Host Name Configuration The Axis product can be accessed using a host name instead of an IP address. The host name is usually the same as the assigned DNS name. The host name is configured under System Options > Network > TCP/IP > Advanced.

  • Page 40: Snmp

    SOCKS is a networking proxy protocol. The Axis product can be configured to use a SOCKS server to reach networks on the other side of a firewall or proxy server. This functionality is useful if the Axis product is located on a local network behind a firewall, and notifications, uploads, alarms, etc need to be sent to a destination outside the local network (for example the Internet).

  • Page 41: Storage

    To use SNMP v3, HTTPS must be enabled, see HTTPS, on page 34. To enable SNMP v3, check the box and provide the initial user password. Note The initial password can only be set once. If the password is lost, the Axis product must be reset to factory default, see Reset to Factory Default Settings, on page 45. UPnP The Axis product includes support for UPnP .
  • Page 42 4. Enter the name of the share in the Share field. Sub folders cannot be used. 5. If required, select The share requires login and enter the user name and password. 6. Click Connect. To clear all recordings and data from the Axis product’s folder on the designated share, click Clear under Storage Tools.

  • Page 43: Ports & Devices

    The Axis product provides several maintenance functions. These are available under System Options > Maintenance. Click Restart to perform a correct restart if the Axis product is not behaving as expected. This will not affect any of the current settings.

  • Page 44: Advanced

    45. For more information, see www.axis.com/developer File Upload Files, for example web pages and images, can be uploaded to the Axis product and used as custom settings. To upload a file, go to System Options > Advanced > File Upload.

  • Page 45: Reset To Factory Default Settings

    (viewer, operator or administrator) for the uploaded file. Plain Config Plain Config is for advanced users with experience of Axis product configuration. Most parameters can be set and modified from this page. Help is available from the standard help pages.

  • Page 46: Troubleshooting

    Always read the upgrade instructions and release notes available with each new release, before upgrading the firmware. To upgrade, follow these instructions: 1. Save the firmware file to your computer. The latest version of the firmware is available free of charge from Axis website at www.axis.com/techsup 2.

  • Page 47: Symptoms, Possible Causes And Remedial Actions

    Status indicator. 5. Reinstall the product, referring to the Installation Guide. If the emergency recovery procedure does not get the product up and running again, contact Axis support at www.axis.com/techsup/ Symptoms, Possible Causes and Remedial Actions Problems setting the IP address Try the installation again.
  • Page 48 Check with your network administrator to see if there is a firewall preventing viewing. Installation of additional Configure the Axis product to use a Java applet for updating video images in your browser. Go to ActiveX component Setup > Live View Config and select Java applet under Default viewer.
  • Page 49 Check in the AMC Control Panel (H.264 tag) that video processing is NOT set to Decode only key frames. Lower the image resolution. The maximum frames per second is dependent on the utility frequency (60/50 Hz) of the Axis product. See Technical Specifications, on page 50. Status and Network indicator LEDs are flashing red rapidly Hardware failure Contact your Axis reseller.

  • Page 50: Technical Specifications

    AXIS M7016 Video Encoder Technical Specifications Technical Specifications Item Specifications Function/group Video Encoder Model AXIS M7016 (16 channels) Pan/Tilt/Zoom Wide range of analog PTZ cameras supported (drivers available for download at www.axis.com) 100 presets/camera, guard tour, PTZ control queue Supports Windows compatible...
  • Page 51 Technical Specifications Item Specifications Function/group System Application Open API for software integration, including VAPIX® from Axis Communications available Integration Programming at www.axis.com Includes the ONVIF specification available at www.onvif.org Interface Support for AXIS Video Hosting System (AVHS) with One-Click Camera connection...

  • Page 52: Connectors

    AXIS M7016 Video Encoder Technical Specifications Item Specifications Function/group Dimensions 44,5x440x113 mm (1.8"x17.3"x4.5") (HxWxD) Connectors Power Connector 2-pin terminal block for power input. DC power input Use a Safety Extra Low Voltage (SELV) compliant limited power source (LPS) with either a rated output power limited to ≤100 W or a rated output...
  • Page 53 AXIS M7016 Video Encoder Technical Specifications • Simultaneous viewing of different streams (resolution, compression) by different clients. Effect on frame rate and bandwidth. • Accessing Motion JPEG and H.264 video streams simultaneously. Frame rate and bandwidth affected. • Heavy usage of event settings affect the product’s CPU load. Frame rate affected.
  • Page 54 User Manual Ver. M2.3 AXIS M7016 Video Encoder Date: November 2013 © Axis Communications AB, 2013 Part No. 54592...
