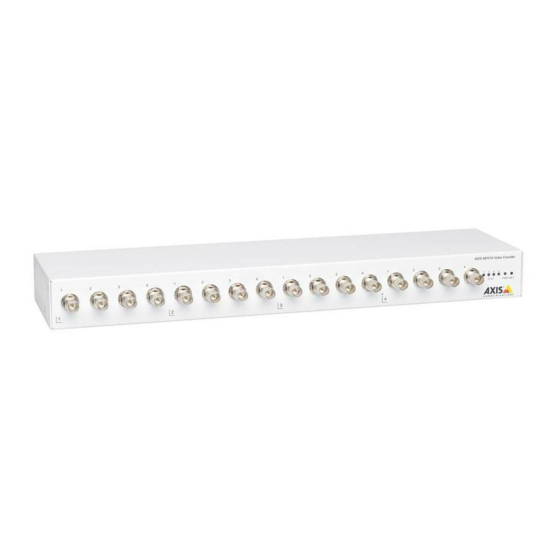

Axis M7016 Installation Manual
Video encoder
Hide thumbs
Also See for M7016:
- User manual (54 pages) ,
- User manual (64 pages) ,
- Installation manual (89 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axis M7016
Summary of Contents for Axis M7016
- Page 1 INSTALLATION GUIDE AXIS M7016 Video Encoder...
- Page 2 Search by product, category, or phrase document. Please inform your local Axis office of any • report problems to Axis support staff by logging in to inaccuracies or omissions. Axis Communications AB cannot your private support area be held responsible for any technical or typographical errors •...
- Page 3 (RoHS). China This product complies with the requirements of the legislative act Administration on the Control of Pollution Caused by Electronic Information Products (ACPEIP). Contact Information Axis Communications AB Emdalavägen 14 223 69 Lund Sweden...
-
Page 5: Safety Information
AXIS M7016 Video Encoder Safety Information Read through this Installation Guide carefully before installing the product. Keep the Installation Guide for future reference. Hazard Levels DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. -
Page 6: Safety Instructions
Battery The Axis product uses a 3.0 V CR2032 lithium battery as the power supply for its internal real-time clock (RTC). Under normal conditions this battery will last for a minimum of five years. Low battery power affects the operation of the RTC, causing it to reset at every power-up. A log message will appear when the battery needs replacing. -
Page 7: Installation Steps
Installation Guide This Installation Guide provides instructions for installing AXIS M7016 Video Encoder on your network. For other aspects of using the product, see the User Manual available at www.axis.com Installation Steps 1. Make sure the package contents, tools and other materials necessary for the installation are in order. -
Page 8: Led Indicators
AXIS M7016 Video Encoder Network connector RJ45 Card slot microSD x4 RS-485/422 connector x4 Control button x4 Protective earth Video input connector BNC x16 Status LED 1–4 Power LED Network activity LED RJ45 LED Indicators Color Indication Net- Green Steady for connection to a 1 GBit/s network. Flashes for network activity. -
Page 9: Specifications
RS-485/RS-422 connector - Two 2-pin terminal blocks for RS-485/RS-422 serial interface used to control auxiliary equipment, e.g. PTZ devices. Specifications Operating Conditions The casing of AXIS M7016 is not approved for outdoor use. The product may only be installed in indoor environments. -
Page 10: Power Consumption
AXIS M7016 Video Encoder Product Temperature Humidity AXIS M7016 0 °C to 50 °C 20-80% RH (non-condensing (32 °F to 122 °F) Power Consumption Product Power supply AXIS M7016 AXIS PS-P power supply Connectors Power connector DC power input 2-pin terminal block for power input. -
Page 11: Install The Hardware
Install the Hardware Mount the video encoder The AXIS M7016 is supplied with a mounting kit containing brackets. The unit can be mounted in a rack or on a wall. After removing the existing 4 screws, attach the mounting brackets to the video encoder at an angle suitable for installation in a standard 1U 19”... -
Page 12: Further Information
Further Information The User Manual is available at www.axis.com Visit www.axis.com/techsup to check if there is updated firmware available for your network product. To see the currently installed firmware version, go to Setup > About. Visit Axis learning center www.axis.com/academy for useful trainings, webinars, tutorials and guides. - Page 14 Installation Guide Ver. M2.2 AXIS M7016 Video Encoder Date: June 2013 © Axis Communications AB, 2013 Part No. 50455...
