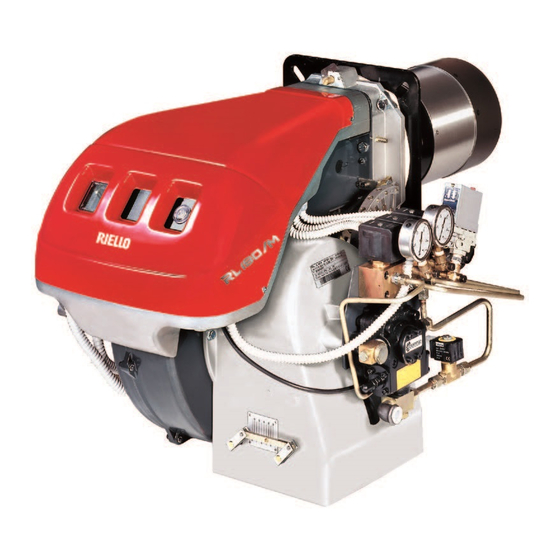

Riello RL 70/M Installation, Use And Maintenance Instructions
Light oil burners, low - high or modulating operation
Hide thumbs
Also See for RL 70/M:
- Installation, use and maintenance instructions (88 pages) ,
- Installation, use and maintenance instructions (28 pages) ,
- Installation, use and maintenance instructions (52 pages)
Related Manuals for Riello RL 70/M
Summary of Contents for Riello RL 70/M

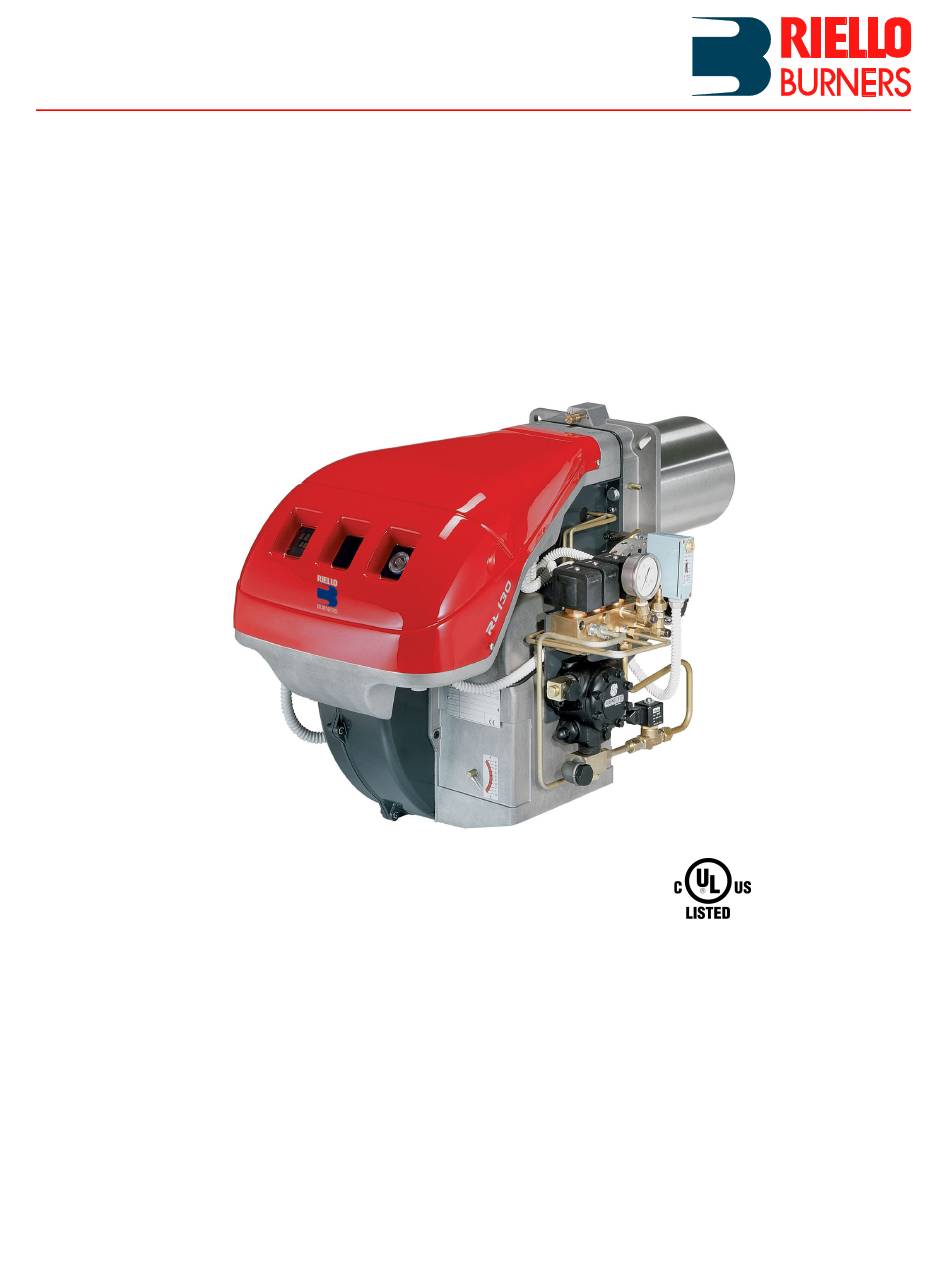

- Page 1 Installation, use and maintenance instructions Light Oil Burners RL 70/M - 100/M - 130/M Low - High or Modulating Operation C6505053 - 2916050 (3) - 10/2008...
-
Page 2: Table Of Contents
CONTENTS WARNING TECHNICAL DATA .......page 3 Do not store flammable or hazardous materials in the vicinity Burner models designations. -
Page 3: Technical Data
23 / 32 5 / 32 • Flame inversion boiler kit COD. 3010180 • RL 70/M - RL 100/M COD. 3010183 • RL 130/M Important: The installer is responsible for the supply and installation of any safety device(s) not indicated in this manual. -
Page 4: Burner Description
Flame safeguard Lock-out: if the Flame relay 23)(A) pushbutton lights up, it indicates that the burner is in lock-out. To reset, press the pushbutton. inch Motor trip: release by pressing the pushbutton on ther- RL 70/M 9 / 32 “ 5 / 8 “ 3 / 16 “... -
Page 5: Firing Rates
FIRING RATES (A) During operation, burner output varies between: • MINIMUM OUTPUT: area A; • MAXIMUM OUTPUT: area B (and C for model RL 130/ Graphs (A): Horizontal axis : Burner output Vertical axis : Combustion chamber pressure The firing rate may be found by plotting a vertical line from the desired delivery and a horizontal line from the pressure in the combustion chamber. -
Page 6: Installation
INSTALLATION BOILER PLATE (A) inch Drill the combustion chamber mounting plate as shown in (A). The position of the threaded holes can be marked RL 70/M “ “ - 12 “ 1 / 2 9 / 32 27 / 32 13 / 16 using the head gasket supplied with the burner. -
Page 7: Choice Of Nozzle
RL 70/M, maximum light oil delivery = 16 GPH Diagram (F) indicates that for a delivery of 16 GPH the RL 70/M Model requires the combustion head to be set to approx. three notches, as shown in Figure (E). D1222 D462 N°... -
Page 8: Fuel Supply
HYDRAULIC SYSTEM FUEL SUPPLY Double-pipe circuit (A) The burner is equipped with a self-priming pump which is capable of feeding itself within the limits listed in the table at the side. The tank higher than the burner A Distance "P" must not exceed 33 ft in order to avoid sub- jecting the pump's seal to excessive strain;... -
Page 9: Pump
PUMP (A) PUMP SUNTEC J7 C 1 - Suction 1/2" NPT 2 - Return 1/2" NPT 3 - Pressure gauge attachment G 1/8" 4 - Vacuum gauge attachment G 1/8" 5 - Pressure adjustment screw 6 - By-pass screw A - Min. delivery rate at 290 PSI pressure B - Delivery pressure range C - Max. -
Page 10: Servomotor
SERVOMOTOR (A) The servomotor gives simultaneous regulation of the air damper through the adjustable profile cam 2)(F) and the pressure controller (A) pag. 11. It rotates by 130° in approx. 35 s. The factory settings must not be changed for the first fir- ing, just check that they comply with the details below. -
Page 11: Burner Calibration
BURNER CALIBRATION PRESSURE CONTROLLER The optimum calibration of the burner requires an analy- sis of the flue gases at the boiler outlet. The following settings that have already been made do not require modification under normal circumstances: • Combustion head; •... -
Page 12: Burner Starting
BURNER STARTING Close the control circuit, with the switches in fig. (C) and Position jumpers Trim potentiometers (E) in the AUTO position. On firing turn the switch (C) to MAN. MAXIMUM OUTPUT Using button (B), "increase output" until it stops at app. Slide switch 130°... -
Page 13: Burner Operation
BURNER OPERATION BURNER STARTING (A) - (B) • Operating control closes, the motor starts. The pump 3) draws the fuel from the tank through the piping 1) and pumps it under pressure for delivery. The piston 4) rises and the fuel returns to the tank through the piping 5) - 7). -
Page 14: Final Checks
FINAL CHECKS • Obscure the photocell and switch on the control devices: the burner should start and then lock-out about 5 s after starting. • Illuminate the photocell and switch on the control devices: burner should go into lock-out. • Obscure the photocell while the burner is operating: flame should go out and burner lock out within 1 s. -
Page 15: Procedure To Refer Burner Operating Condition In High Altitude Plants
PROCEDURE TO REFER BURNER OPERATING CONDITION IN HIGH ALTITUDE PLANTS Find the corrected burner capacity for the plant’s altitude in chart 1 and the corrected pressure in chart 2. Check in the firing rate graph of the burner (page 5), if the working point defined by the values above is within the range limits. If not, higher burner size is needed. -
Page 16: Flame Signal Measurements
FLAME SIGNAL MEASUREMENT (A) Min value for a good signal: 8 μA. LAL2... Sub-base If the value is lower, it can be due to: • Worn photocell; • Low current; • Bad set up of the burner. In order to measure the current, use a microammeter of 100 μA c.c., connected to the scanner, as in the dia- gram. -
Page 17: Siemens Lal Control Troubleshooting Guide
BURNER FAULTS SYMBOL (1) FAULT PROBABLE CAUSE SUGGESTED REMEDY The burner does not start - A limit or safety control device is open ....Adjust or replace - Control box lock-out . -
Page 18: Factory Wiring Diagram - Burner Mounted Lal
Change the wire connection from terminal 7 to terminal 1, move the jumper from terminals 12-13 to terminals 4-12 and remove the wire from terminal 13 of control box. D2873 LAYOUT (A) Burners RL 70/M - RL 100/M - RL 130/M - Button for : = power reduction Key to Layout (A) -
Page 19: Field Wiring Diagram- Burner Mounted Lal
(see page 3). • The RL 70/M - RL 100/M - RL 130/M burners have been type-approved for intermittent operation. This means they should be stopped at least once every 24 hours to enable the control box to perform self checks at start-up. Burner halts are normally provided for automatically by the boiler load... -
Page 20: Factory Wiring Diagram - Remote Panel
Factory Wiring Diagram RL 70 - 100 - 130/M With auxiliary panel... - Page 21 Factory Wiring Diagram RL 70 - 100 - 130/M With auxiliary panel...
- Page 22 LAYOUT (A) - (B) page 20 - 21 Burners RL 70 - 100 - 130/M The flame safeguard is in an auxiliary panel. See the internal electrical systems of the auxiliary panel in order to have the complete wiring diagram. Key to Layouts (A) - (B) Photocell On the burner...
- Page 24 N. CODE DESCRIPTION DESCRIZIONE BURNER SERIAL NUMBER MATRICOLA BRUCIATORE • • • • • • • • • • • • 3012454 AIR INTAKE BOCCA D'ASPIRAZIONE • • • • • • • • • • • • 3003948 AIR DAMPER ASSEMBLY GRUPPO SERRANDA •...
- Page 25 N. CODE DESCRIPTION DESCRIZIONE BURNER SERIAL NUMBER MATRICOLA BRUCIATORE • • • • • • • • • • • • 3007169 O RING ANELLO OR • • • • • • • • • • • • 3012012 HALF-SHELL GUSCIO •...
- Page 26 N. CODE DESCRIPTION DESCRIZIONE BURNER SERIAL NUMBER MATRICOLA BRUCIATORE • • • • • • • • • • • • 3012470 TUBE TUBO • • • • • • • • • • • • 3012471 TUBE TUBO • • • • • • • • • • • • 3003005 CONNECTOR RACCORDO...
-
Page 27: Start Up Reports
BURNER START UP REPORT Model number: Serial number: Project name: Start-up date: Installing contractor: Phone number: GAS OPERATION Gas Supply Pressure: : Low Fire High Fire Main Power Supply: : Low Fire High Fire Control Power Supply: CO: Low Fire High Fire Burner Firing Rate: : Low Fire... - Page 28 RIELLO S.p.A. Via degli Alpini 1 I - 37045 Legnago (VR) Tel.: +39.0442.630111 Fax: +39.0442.630375 http:// www.rielloburners.com RIELLO BURNERS NORTH AMERICA 1-800-4-RIELLO 35 Pond Park Road 2165 Meadowpine Blvd. Hingham, Massachusetts, 1-800-474-3556 Mississauga, Ontario, U.S.A. 02043 Canada L5N 6H6 http://www.riello-burners.com...
