Problem/Procedure Description
•
How to exchange the head unit on the S62 and S100
Requirements
•
T20 torque wrench (provided with the head unit)
•
T10 torque wrench (provided with the head unit)
•
T9 torque wrench (provided with the head unit)
•
#2 phillips screw driver
•
jewelers flat head screw driver
•
Large tip flat head screw driver
•
Tape
•
Fiducial recognition camera (may be sent with head unit if a camera system was not purchased)
•
U-Eye camera software (provided with camera)
•
Boardmaster 5.0
Problem/Procedure Solution
1. Setup
a. Switch the machine on and start boardmaster
b. When prompted enter the tool status
c. If there is a tool loaded, right click on the tool select drop down menu.
i. When prompted to place the tool into the tool box, select yes.
ii. When prompted to move the machine to the pause position, select no.
iii. On the tool position window that appears, press OK.
iv. Move the machine to the exchange position.
d. Move the machine head 150mm to the right (along the X axis).
e. Shut down boardmaster
f.
When prompted to discontinue communications with the machine, select yes.
g. When prompted to move the machine to the reference point, select no.
h. Turn machine power off.

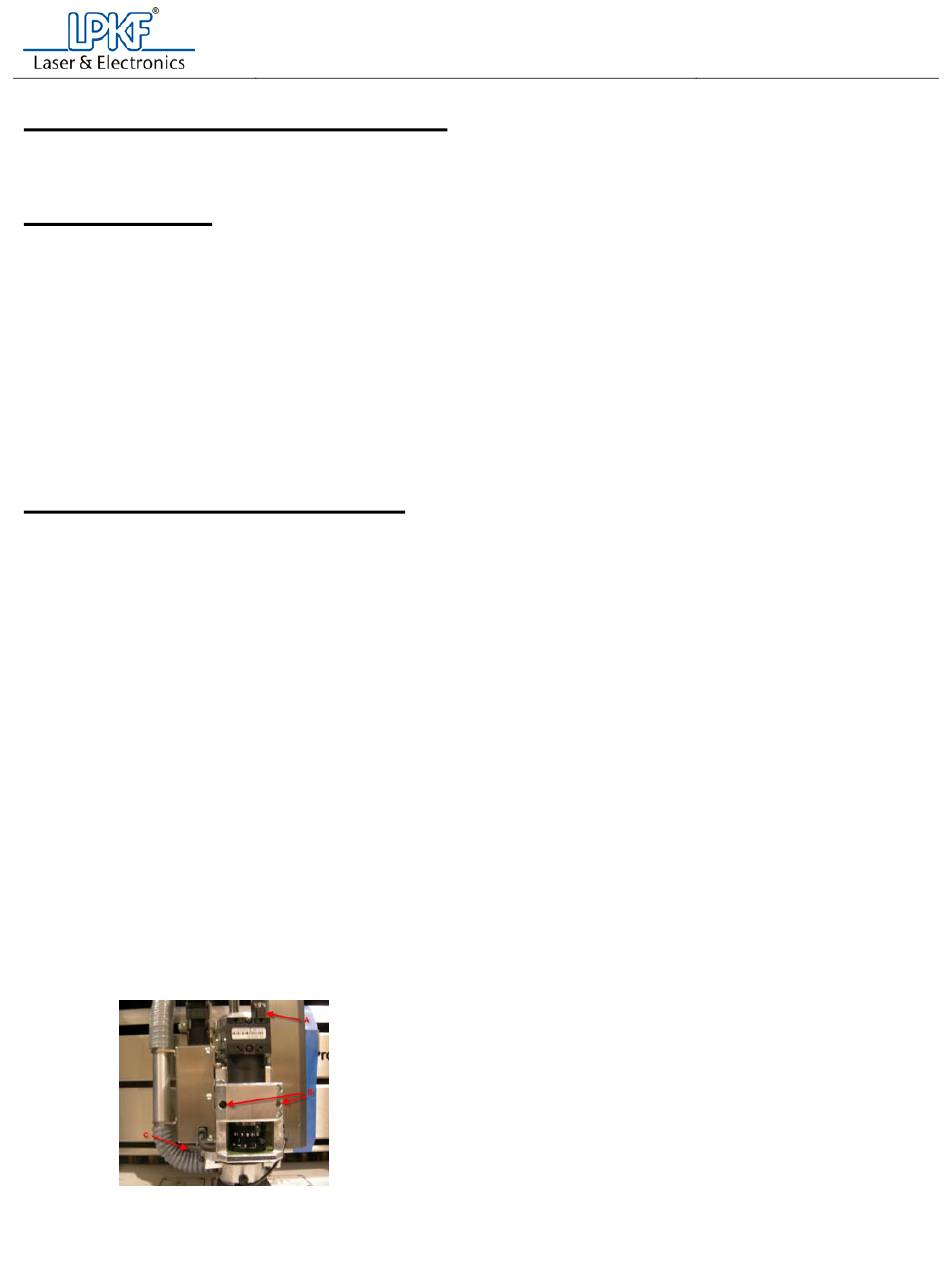

2. If installed, remove the camera.
a. With a small flat head screw driver, unscrew the two (2) screws on the USB cable connector
(A in picture below)
b. Disconnect the USB cable from the camera
c. Disconnect the blue connector from the camera to the spindle control box.
(C in picture below)
d. With the T10 torque wrench, unscrew the two (2) T10 screws mounting the camera to the motor
block.
(B in picture below)
e. Remove the camera and set it aside.
