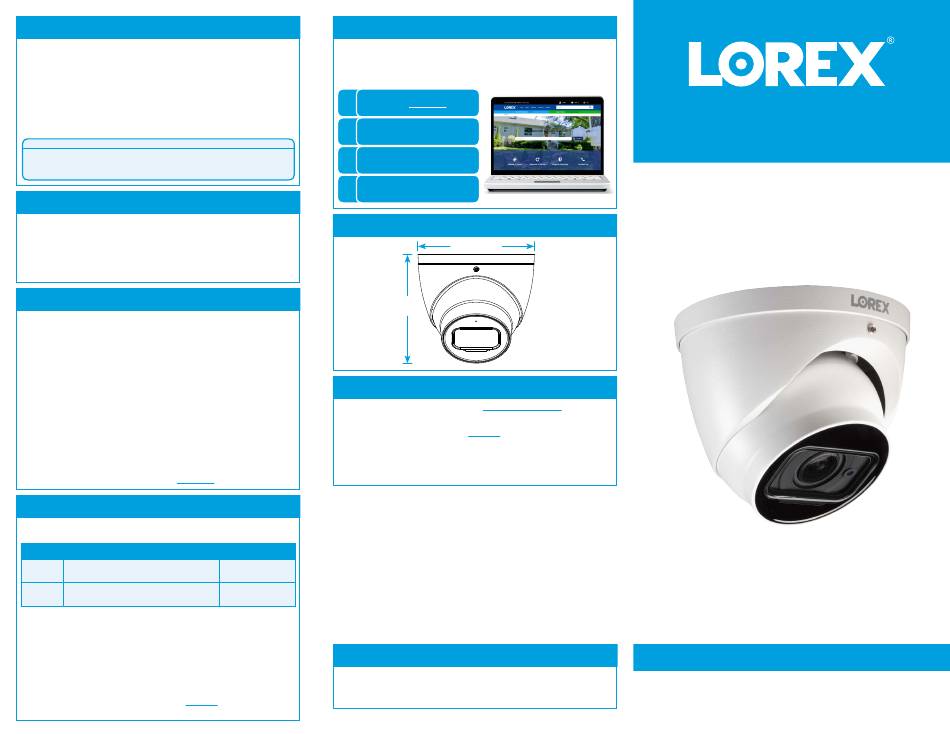

Lorex C861CH Series Quick Start Manual

Package Contents

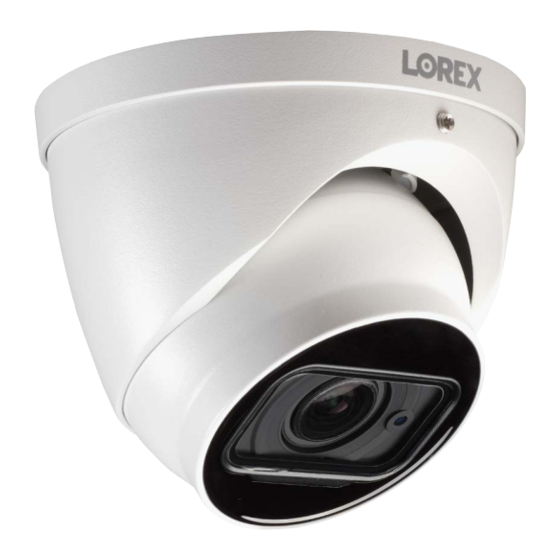

• 4K Ultra HD Motorized Varifocal Dome Camera
• Mounting Kit*
• BNC / Power Extension Cable*
• Power Adapter* **
/
* Per camera in multi-camera packs.
** Only the included power adapter can be used. Do not use 4-in-1 or
8-in-1 power adapters with the camera.
ATTENTION:
A REGULATED UL / CSA APPROVED power supply is REQUIRED for use with this
camera (included). Use of a non-regulated, non-conforming power supply can
damage this product and voids the warranty.

Installation Tips

• Point the camera where there is the least amount of obstructions
(i.e., tree branches).
• Install the camera where vandals cannot easily reach.
• Secure cabling so that it is not exposed or easily cut.
• This camera is rated for outdoor use. Installation in a sheltered
location is recommended.

Safety Precautions

• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the camera within given temperature, humidity and voltage levels
noted in the camera's specifications.
• Do not disassemble the camera.
• Do not point the camera directly towards the sun or a source of
intense light.
• Make sure you install the camera in a location that can support the
camera's weight.
• Use only the supplied regulated power supply provided with the
product. Use of a non-regulated, non-conforming power supply can
damage the product and void the warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do not use
any harsh, chemical-based cleaners.
• The supplied cable is rated for surface and in-wall mounting only.
Cables for floor-to-floor installations are sold separately (CMR type).
These and other cables are available at lorex.com.

Cable Extension Options

Extend the cable run for your camera depending on the cable type used. Additional
extension cables sold separately. See table below:
Option Model Number
1
CB120URB1A
2
CB250URB1A
NOTES:
1. The extension cable must be a single stretch of cable between the DVR and
camera. You cannot connect multiple extension cables to each other.
2. Extending camera cable runs beyond the included cable length may require you
to connect the power supply directly to the camera rather than to the extension
cable.
3. Indicators that your cable run may be too long:
• Camera loses video when switching to night vision.
• Video is permanently black & white (even during day time).
• Video is unclear, soft, or distorted.
4. For more information on extension cables, visit lorex.com
model numbers of the cables above.
Resources
1
Visit lorex.com
Search for the model
2
number of your product
Click on your product
3
in the search results
4
Click on the Downloads tab

Dimensions

99mm

Disclaimers

• For a full list of compatible recorders, visit lorex.com/compatibility.
• To ensure that you are viewing camera video in full 4K resolution (4K monitor
required), check the video output resolution of your recorder. For full instructions,
see your recorder's documentation at lorex.com.
• Not intended for submersion in water. Installation in a sheltered location
recommended.
• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes
between Day/Night viewing modes, an audible clicking noise may be heard from
the camera. This clicking is normal, and indicates that the camera filter is working.
Cable Length
120ft (37m)
250ft (76m)
Copyright © 2019 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the right
to modify product design, specifications and prices, without notice and without
incurring any obligation. E&OE. All rights reserved.
and search for the
Need Help?
Visit us online for up-to-date software
and complete instruction manuals
2.5" / 64mm
3.9"
C861CH_QSG_EN_R1
4K Ultra HD Motorized Varifocal
Dome Camera
Quick Start Guide
English Version 1.0
C861CH SERIES
www.lorex.com
