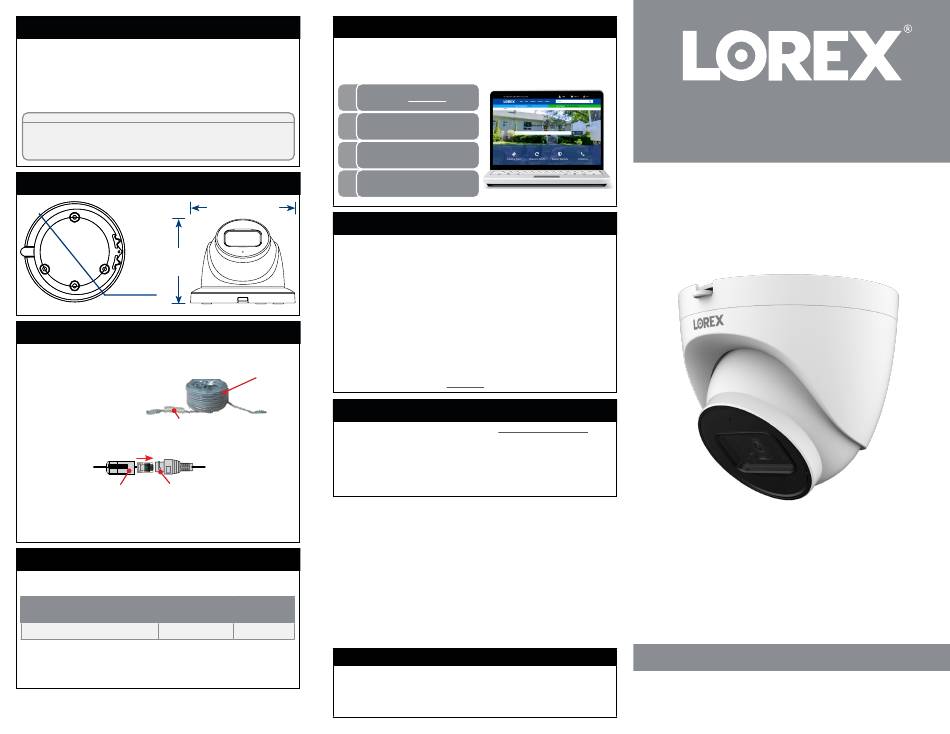

Lorex E841CD Series Quick Start Manual

Package Contents

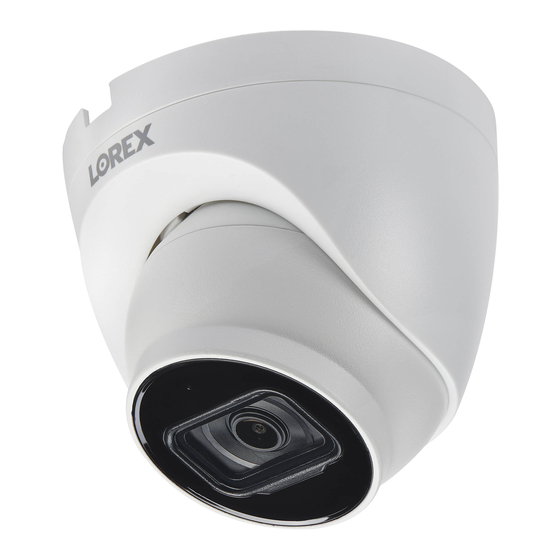

• 4K HD IP Dome Security Camera
• Mounting Kit*
• Mounting Template*
• Ethernet Extension Cable with Pre-attached RJ45 Cable Gland*
* Per camera in multi-camera packs.
ATTENTION:
It is recommended to connect the camera to the NVR or an external PoE switch. If
using a DC power adapter (not included) with the camera, a REGULATED power supply
is REQUIRED for use with this camera. Use of a non-regulated, non-conforming power
supply can damage this product and voids the warranty.
Dimensions
4" /
101mm
3.3" /
83mm
Using the RJ45 Cable Gland (Optional)
The RJ45 cable gland covers the camera's Ethernet connector and the
RJ45 plug to provide weather-resistance and protection from dust, dirt and
other environmental contaminants.
The RJ45 cable gland is
pre-attached to the included
Ethernet extension cable.
RJ45 Cable Gland
To use the RJ45 cable gland:
Twist the RJ45 cable gland barrel securely onto the camera Ethernet
connector.
RJ45 Cable Camera Ethernet
Gland Barrel Connector
NOTE: The RJ45 cable gland is weather-resistant. Seal the cap with
silicone and/or electrical tape for additional sealing if it will be exposed to
precipitation regularly.
Cable Extension Options
Extend the cable run for your camera. Additional extension cables sold
separately. See table below:
Max Cable Run
Cable Type
Distance
CAT5e (or higher) Ethernet cable 300ft (92m)
• You can use a RJ45 coupler or switch (not included) to connect male
ends of Ethernet cable together.
• To extend the cable run beyond 300ft (92m), a switch will be required
(sold separately).
Resources
1
Visit lorex.com
Search for the model
2
number of your product
Click on your product
3
in the search results
4
Click on the Downloads tab
3.3" / 83mm
Safety Precautions
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the camera within given temperature, humidity and voltage levels
noted in the camera's specifications.
• Do not disassemble the camera.
• Do not point the camera directly towards the sun or a source of intense
light.
• Use only the supplied regulated power supply provided with the product.
Use of a non-regulated, non-conforming power supply can damage the
product and void the warranty.
• Periodic cleaning may be required. Use a damp cloth only. Do not use any
harsh, chemical-based cleaners.
• The supplied cable is rated for surface mounting only. Cables for in-wall
and floor-to-floor installations are sold separately (CMR type). These and
Ethernet
other cables are available at lorex.com.
Extension
Cable
Disclaimers
• For a full list of compatible recorders, visit lorex.com/compatibility.
• Not intended for submersion in water. Installation in a sheltered location
recommended.
• This camera includes an Auto Mechanical IR Cut Filter. When the camera
changes between Day/Night viewing modes, an audible clicking noise
may be heard from the camera. This clicking is normal, and indicates that
the camera filter is working.
Max # of
Extensions
3
Copyright © 2020 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the
right to modify product design, specifications and prices, without notice and
without incurring any obligation. E&OE. All rights reserved.
Need Help?
Visit us online for up-to-date software
and complete instruction manuals
E841CD_QSG_EN_R1
4K HD IP Dome Security Camera
Quick Start Guide
English Version 1.0
E841CD SERIES
lorex.com
