Summary of Contents for Spirent Vertex Channel Emulator
Page 1

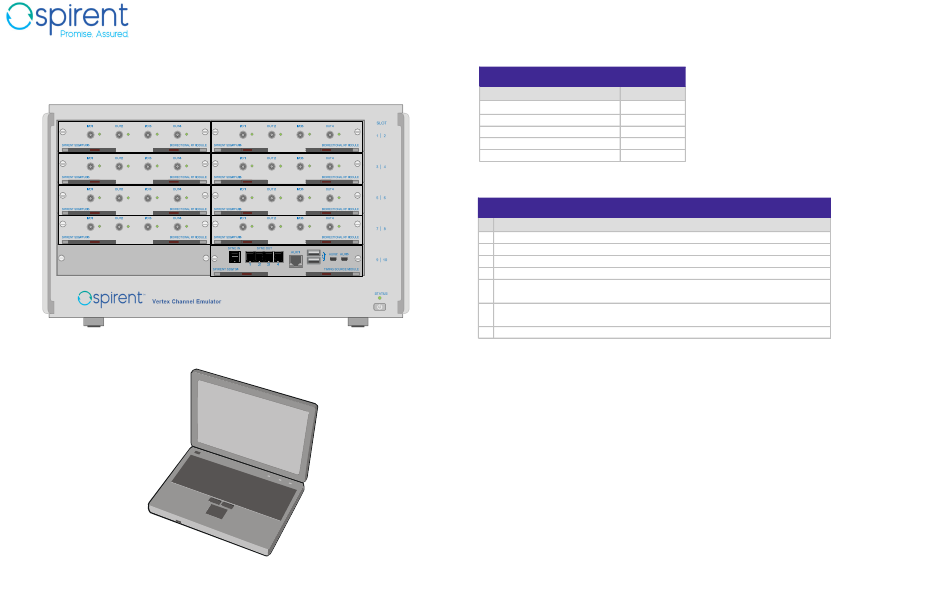

4. Connect the power cords to all instruments and apply power to the system by following the instructions on page 5. 5 Start the Vertex Channel Emulator application by following the instructions on page 6. Controller laptop 71-007894.A8 Page 1 of 6 +1 800-SPIRENT –...
Page 2
Spirent Setup Guide: Vertex Channel Emulator Single-Vertex Configuration: Rear Panel Cable Routing Supplied by User E2 LAN Cable U1 USB to RS-232 E1 LAN Cable 71-007894.A8 Page 2 of 6 +1 800-SPIRENT – www.spirent.com Information subject to change.
Page 3
Spirent Setup Guide: Vertex Channel Emulator Dual-Vertex Configuration: Rear Panel Cable Routing Vertex 1: Primary E4 LAN Cable M3 MINI SAS M5 MINI SAS E2 LAN Cable cable cable H1 HDMI M4 MINI SAS M6 MINI SAS cable B1 BNC cable...
Page 4
Spirent Setup Guide: Vertex Channel Emulator Dual-Vertex Configuration: Front Panel Cable Routing Vertex 1: Primary Primary SYNC OUT2 M1 MINI SAS cable M2 MINI SAS Primary SYNC IN cable Primary SYNC OUT1 Vertex 2: Secondary Secondary SYNC IN 71-007894.A8 Page 4 of 6 +1 800-SPIRENT –...
Page 5
Spirent Setup Guide: Vertex Channel Emulator Applying Power to the System Power Connection Procedure Perform the following steps after you have completed all cable routing on the rear panel and the front panel. Instructions 1 Make sure the loopback cable is connected on the rear panel of the Vertex instrument.
Page 6
Starting the Vertex Application Instructions 1 On the Controller laptop, double-click on the Vertex Channel Emulator desktop shorcut. In the Primary Fader IP Address box, type in the IP address of the Vertex instrument, and then click the Connect button.
