Trion Air Boss M3000 Brochure & Specs

Engineered Solutions For Clean Air

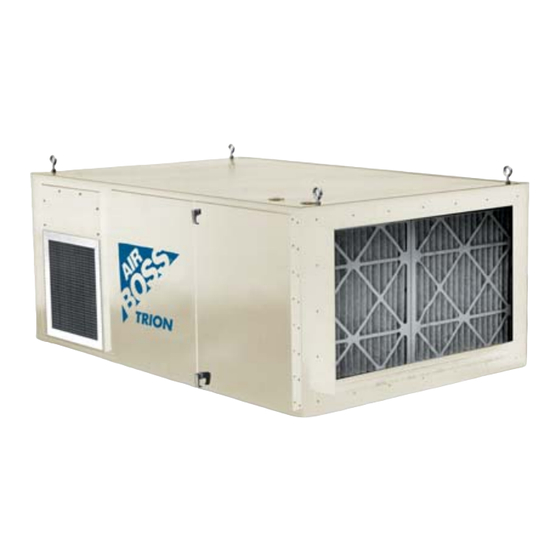

Trion's AIR BOSS media units are industrial air
cleaners designed for both general ventilation
(removal of airborne pollutants from plant
atmospheres) or source capture (ductwork or arms
positioned at the origin of pollutants). These units help
solve welding smoke, oil mist, rubber dust, diesel
smoke, grinding dust, numerous gases/odors and
many other indoor air pollution problems.
Features/Benefits
• Straight through or side discharge —
ability to better control airflow
(M3000 & M6000)
• Odor and High Efficiency Filters —
from HEPA and adsorber modules to
mini-pleat filters (194/388 sq. ft.) for
maximum efficiency and effectiveness
(M3000 & M6000)
• Belt driven blower with variable pitch
sheave — providing adjustment for precise
CFM operating range (M3000 & M6000)
• Collects wet or dry particulates —
providing versatility in a wide range of
applications (M3000 & M6000)
• High static blower packages — capacity
for additional external static offers more
contaminant pickup points
(optional for M3000)
M6000
Principle of Operation
Dirty Air Pre-Filter Main Filter
Media Air Cleaning
How It Works
Trion's Air Boss Media Series uses the Interception
Filtration Principle. Dirty, polluted air is drawn
through the pre-filter to remove larger dust
particles. The second stage, micro-glass deep
pocket media filter removes submicron particles
from the air stream by interception. The small
diameter fibers in the filter intercept and retain
these small particles while the large surface area
of the filter gives long life and low pressure drop.
The blower is designed specifically to handle
the filtration system at rated CFM over the useful
life of the filter.
Clean Air
