Trion M1100 Specifications

ENGINEERED SOLUTIONS FOR CLEAN AIR

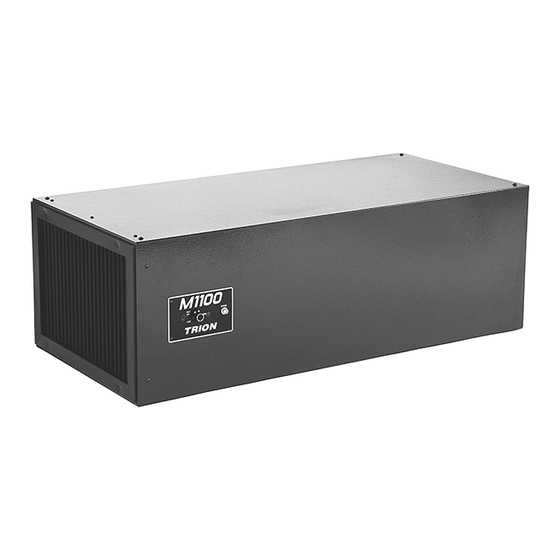

Trion's Models M750 and M1100
commercial air cleaners have been especially
designed for large rooms or multi-room
facilities. They have the capacity to help
remove up to 99.97% of tobacco smoke, dust,
pollen, lint, bacteria and mold spores from
recirculated indoor air. Nuisance odor control
is also possible with an optional adsorption
module.
They are easy to install on a wall
or suspend from a ceiling and feature
variable speed control, non-electrostatic, high
efficiency micro-glass filters (optional HEPA
filter or 14 Ib. charcoal filter), a commercial
duty cabinet, and adjustable outlet grille.
The Model M750 and M1100 air cleaners
can be used in cocktail lounges, clubs,
bingo halls, meeting rooms, bowling centers,
computer rooms, conference rooms,
designated smoking areas, or wherever people
gather to work or relax.
FEATURES / BENEFITS
• High Efficiency Filters - removal of sub-micron particles
• Recirculates Indoor Air - less expense to heat or cool air
• Front Access - no tools required to change filters
• 4-Way Adjustable Outlet Diffuser - ability to better control air pattern
HOW IT WORKS
Trion's Models M750 and M1100 uses a principle called Interception Filtration. Dirty, polluted air is drawn
through the pre-filter to remove larger dust particles. The second stage, micro-glass deep pocket media
filter strips submicron particles from the air stream by interception. The small diameter fibers in the filter
intercept and retain these small particles while the large surface area of the filter gives long life and low
pressure drop. The blower is designed specifically to handle the filtration system at rated CFM over the
useful life of the filter. The Trion units work independently of any HVAC system.
DIRTY AIR
PRE-FILTER
MAIN-FILTER
MEDIA AIR CLEANING
MODEL M750 • M1100
MEDIA AIR CLEANERS
CLEAN AIR
