PC TRANSCRIPTION KIT AS-2400 INSTRUCTIONS...
Page 2
- Automatic software update through Internet.* - 2 modes/views of operation for Transcribe bar.* * Windows only ● OLYMPUS CORPORATION holds the copyrights for DSS Player Standard Transcription Module software and the instructions (this manual). ● Microsoft and Windows are registered trademarks of Microsoft Corporation.
Safety precautions s For safety, do not leave this product within the reach of infants and children. s Never modify or disassemble this product. s Do not drop the Product or allow it to suff er extreme shocks. s Do not leave the Product exposed to high humidity, high temperature or direct sunlight. s If the Product is wet, wipe it immediately with a dry cloth.
Page 4
In order to download the software, please access the website in your respective region. http://www.olympus.eu/sds-downloads/ (Europe, Middle east and Africa) https://www.olympusamericaprodictation.com/odms-r7 (The Americas) https://www.olympus.com.au/support/ (Oceania) OS compatibility For information on the latest OS upgrades compatibility, please visit the Olympus Web page.
Windows Macintosh Click the [start] button, then select [All While DSS Player is running, select [DSS Player Programs], [Olympus DSS Player Standard], Help] from the [Help] menu. [Transcription Module Help]. While DSS Player is running, select the [Help] menu, [Contents].
Select [Olympus DSS Player Standard], then click [Transcription Module]. Note • If you install DSS Player Standard, Device Detector that makes DSS Player run automatically when connecting Olympus Digital Voice Recorder will be installed.Device Detector will always be displayed as icon in the task tray.
Page 7
Running DSS Player Software Macintosh Disabling Automatic Start Click the Dock’s System Preferences. Click Device Detector. Turn the automatic startup setting Off. Manual Start Double click the DSS Player icon for the folder in [Applications] { [DSS Player]. All program menu will be displayed. Register user information The user’s registration screen will be displayed at the time of initial startup.
Page 8

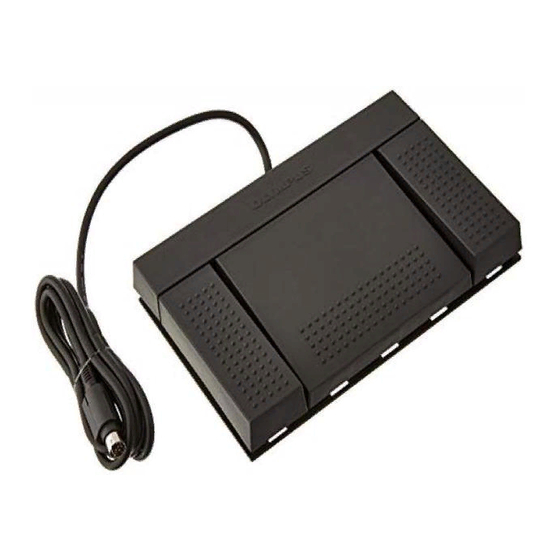

Connecting the RS27H / RS28H Foot Switch Windows Macintosh Connecting to a USB Port Connect the foot switch cable to the USB adapter cable. Connect the USB adapter cable to the PC’s USB port. USB adapter cable...
Connecting the E102 Headset The E102 is a stereo headset. When playing stereo sound, wear the set properly, observing the L and R markings. Plug the headset into the PC’s earphone terminal Note • If your PC does not have a terminal marked with plug the headset into a terminal marked with...
Window Names Windows * Main screen is displayed when DSS Player is started. 1 Playback Control Bar Control buttons to play and stop dictation files. 2 Transcription Tree View Displays the directory structure of the folders in which dictation files and document files are stored.
Specifications 4 Model: Foot Switch RS27H / RS28H 4 Output plug: miniDIN 8Pin 4 Operating temperature: 0 to 42 °C (32 to 107 °F) 4 External dimensions: 190 mm x 120 mm x 26.5 mm (RS27H) 190 mm x 120 mm x 33.5 mm (RS28H) (without protrusions) 4 Weight: 550 g...
Page 12
EU countries. Please do not throw - Only the OLYMPUS-supplied USB cable should the equipment into the domestic refuse. be used to connect the equipment to USB Please use the return and collection systems enabled personal computers (PC).
