Vulcan-Hart 1ER50 Series Manual

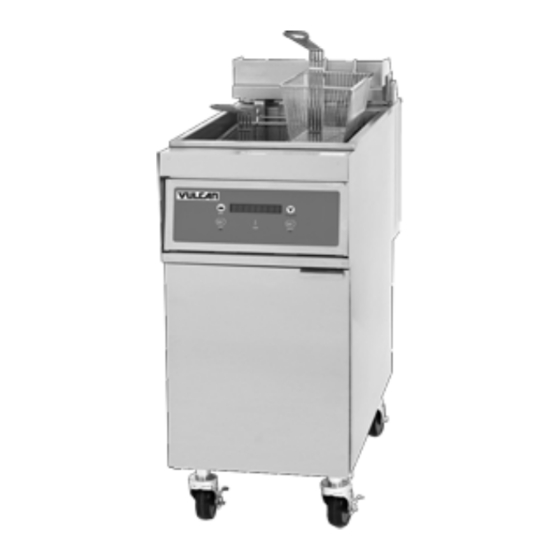

Model 1ER50D
Shown with caster accessory

SPECIFICATIONS

Electric deep fat fryer, Vulcan-Hart Model No. 1ER50A: Solid
state analog knob, 1ER50D: Solid state digital, 1ER50C: Computer
temperature controls are adjustable from 200°F to 390°F and
multiple fat melt cycles and high limit control. Stainless steel
cabinet with four 6" adjustable legs. 16 gauge stainless steel fry
tank holds 50 lbs. of frying compound. 1
drain valve. 17kW low watt density ribbon style heating elements.
Twin fry baskets. Power supply is 208 volt, 50/60 Hz, 3 phase.
Overall Dimensions:
15 ⁄ "w x 34 ⁄ "d x 41 ⁄ "h. working height is 36
1 1 1
2 8 16
NSF listed. CSA design certified.
Specify voltage when ordering.
P.O. Box 696 Louisville, KY 40201
■
F32900 (05/10)
F R Y E R S
FREE STANDING ELECTRIC FRYERS
⁄ " full port ball type
1
4
⁄ ".
1
4
a division of ITW Food Equipment Group LLC
Toll-free: 1-800-814-2028
■
Item #
1ER50 SERIES
1ER50A Solid state analog knob control.
1ER50D Solid state digital controls.
1ER50C Programmable computer controls.

STANDARD FEATURES

Stainless steel cabinet.
■
Set of four 6" adjustable legs.
■
16 gauge stainless steel fry tank, 50 lb. capacity.
■
Ten year limited fry tank warranty.
■
1 ⁄ " full port ball type drain valve.
1
■
4
17 kW low watt density ribbon style heating elements.
■
Multiple fat melt modes.
■
High limit control.
■
Twin fry baskets with plastic coated handles.
■
208 volt, 3 phase.
■
One year limited parts and labor warranty.
■

CONTROLS

1ER50A
Solid state knob control. Accurate temperature
control 200°F to 390°F within +/- 2°. Multiple fat melt
modes, fast recovery.
1ER50D Solid state digital read temperature control. Accurate
temperature control 200°F to 390°F within +/- 2°.
Multiple fat melt modes, fast recovery and boil out
mode and two countdown timers.
1ER50C
Computer control digital read temperature control.
Accurate temperature control 200°F to 390°F within
+/- 2°. Multiple fat melt modes, fast recovery and
boil out mode. Ten programmable product keys and
ten countdown timers. Secondary and advanced
programming options.

OPTIONAL FEATURES (Factory Installed)

480 volt, 3 phase. (Separate 120 volt, 20 amp electric
supply required.)
Second year extended limited parts and labor warranty.
ACCESSORIES (Packaged & Sold Separately)
Stainless Steel Tank Cover – doubles as a work surface top
Set of four 6" adjustable casters (2 locking)
Extra set of Twin Fry Baskets – 6
Large Single Fry Basket – 13"w x 13
Frymate™ VX15S Dump Station
Connecting Kit(s) – connect two fryers together (banking
strip, brackets and hardware)
10" high stainless steel removable splash guard
Local: 502-778-2791 Quote & Order Fax: 1-800-444-0602
■ ■
C.S.I. Section 11420
⁄ "w x 13 ⁄ "d x 6"h
1 1
2 4
⁄ "d x 5 ⁄ "h
1 1
4 2
