Vulcan-Hart 1GR45C Specifications

Model 1GR45D
SPECIFICATIONS:

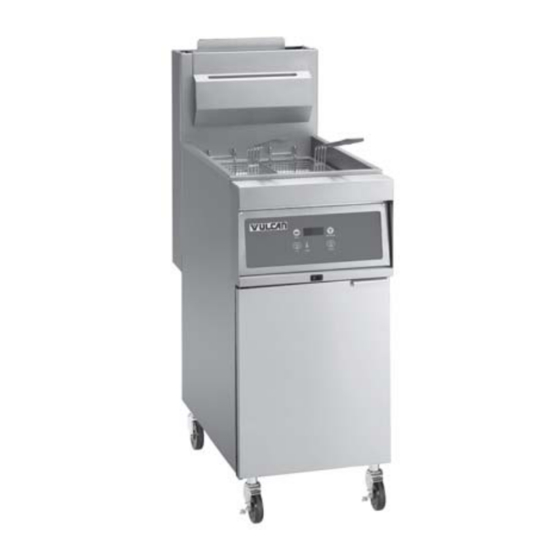

45 - 50 lb. capacity free standing gas fryer, Vulcan-Hart Model
No. (1GR45M) (1GR45D) (1GR45C). Stainless steel front top,
sides and door. Set of four 6" adjustable casters (2 locking).
Stainless steel fry tank with four heat exchanger tubes and a
"V" shaped cold zone. 1" full port ball type drain valve. Twin fry
baskets with plastic coated handles. 120,000 BTU/hr.
input. Millivolt(M), programmable solid state(D), or program-
mable computer(C) control system. Electronic ignition stan-
dard with solid state and computer control models. Tank
brush, stainless steel crumb scoop and clean-out rod.
Overall dimensions: 15 1 / "w x 30
2
1
36 / ".
4
CSA design certified. NSF listed.
SPECIFY TYPE OF GAS WHEN ORDERING.
SPECIFY ALTITUDE WHEN ABOVE 2,500 FT.
VULCAN-HART COMPANY, P.O. BOX 696, LOUISVILLE, KY 40201, TEL. 1-800-814-2028
F-32630 (6-07)
1 / "d x 47 1 / "h. Working height
4 8
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # __________________________
1GR45 SERIES
FREE STANDING GAS FRYER
1GR45M: Behind the door millivolt thermostat control adjusts
from 200° to 400°F.
1GR45D: Solid state temperature control programmable from
200° to 390°F. Completely programmable with single
digital 4 character display. User selectable fat melt
modes. Automatic and manual select boil out modes.
Electronic ignition.
1GR45C: Computer control with digital character display.
Completely programmable with 10 product keys.
Adjusts from 200° to 390°F. User selectable fat melt
modes. Automatic and manual select boil out modes.
Programmable Celsius and Fahrenheit temperature
scales. Electronic ignition.
STANDARD FEATURES
Stainless steel fry tank, 45 - 50 lb. capacity. Includes limited
12 year tank warranty.
1" full port ball type drain valve.
Stainless steel front top, sides and door.
Set of four 6" adjustable casters (2 locking).
Twin fry baskets with plastic coated handles.
120,000 BTU/hr. input.
Four heat exchanger tubes positioned for easy cleaning.
Hi-limit shut-off.
Combination gas shut-off valve and pilot ignition system.
Tank brush, stainless steel crumb scoop and clean-out rod.
One year limited parts and labor warranty.
ACCESSORIES
FRYMATE VX15 add-on frymate.
Stainless steel tank cover.
Grease protector strips.
1 1 / " Rear Gas Manifold Pipe with Shutoff Valves to connect
4
single fryers in the field - up to four
Single large basket - 13"w x 13
Set of twin baskets - 6
Set of tri-baskets - 4 1 /
3
/ " Flexible gas hose with quick disconnect.
4
OPTIONS
Second year extended limited parts and labor warranty.
C.S.I. Section 11420
1 / "d x 5 1 / "h.
4 2
1 / "w x 13 1 / "d x 6"h.
2 4
"w x 13 1 / "d x 5 1 / "h.
4 4 2
