B3.5
POSITIONING AND ADJUSTMENT OF FEET
It is important that the COMPACT stands level, and stands firm to achieve this the feet must be adjusted.
Using a pipe wrench (or similar) unscrew the tube visible above the feet, clockwise when viewed
from above. This tube acts as a locking nut to set the foot once adjusted.
By hand adjust the feet to level the machine, take care not to unscrew them too far and detach them
from the machine frame.
Once the machine is level retighten the outer tubes (counter clockwise when viewed from above),
using a pipe wrench or similar, to fix the position of the feet.
Ensure machine stands firm and does not rock, check with spirit level.

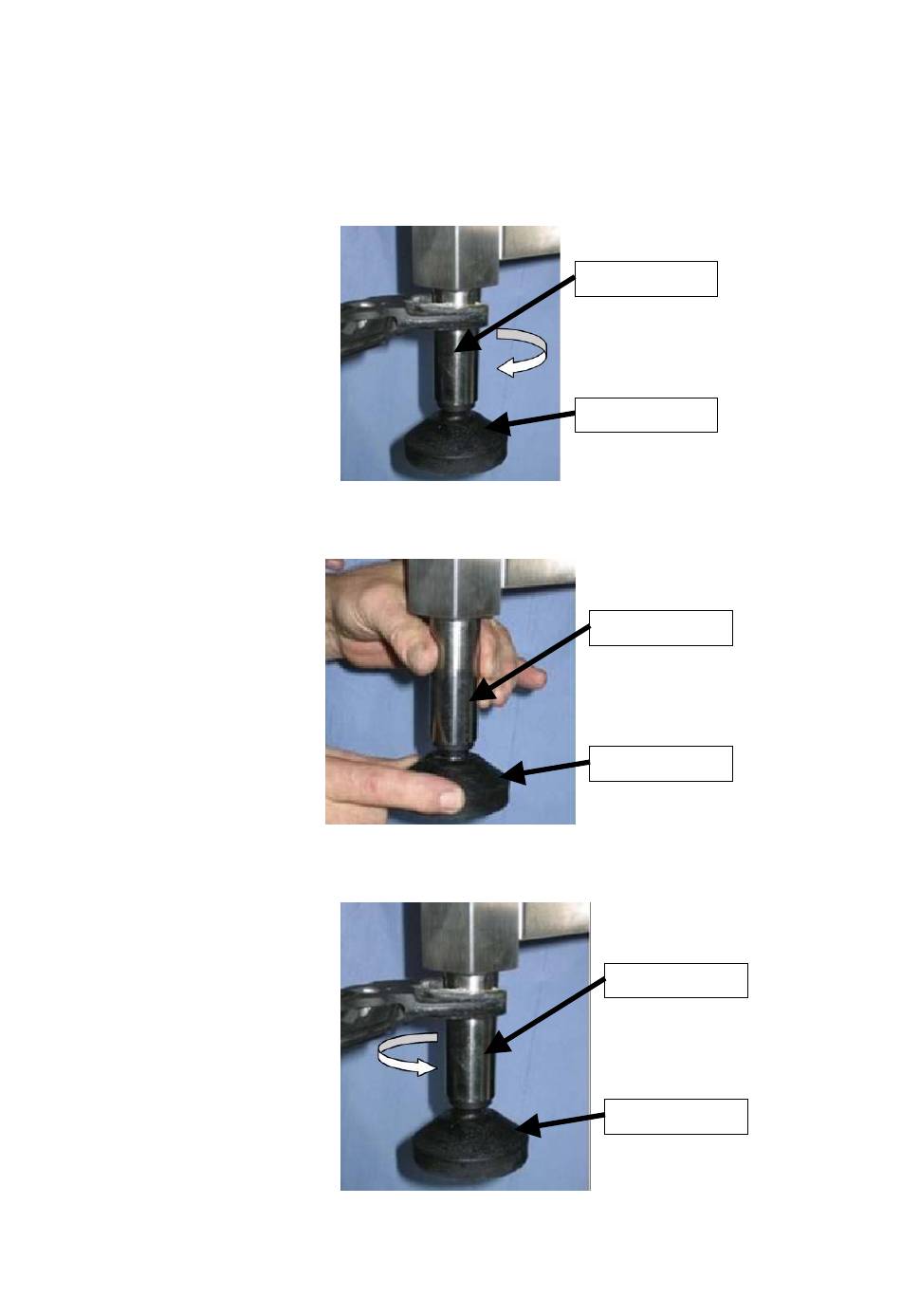

OUTER TUBE
FOOT
OUTER TUBE
FOOT
OUTER TUBE
FOOT
Page 9 of 20
