B3.6 WATER FLOW ADJUSTMENT

To ensure that COMPACT processes material correctly, operates efficiently and does not overfill or splash,
the water flow can be controlled for the sink and the Press.
Water Flow Adjustment - Press
Remove the Chute from the end of the Press. With water connected to Machine, press Start Button and
check that water is not coming out of the Press exit. If water is found to be coming from exit adjust valve to
reduce water flow

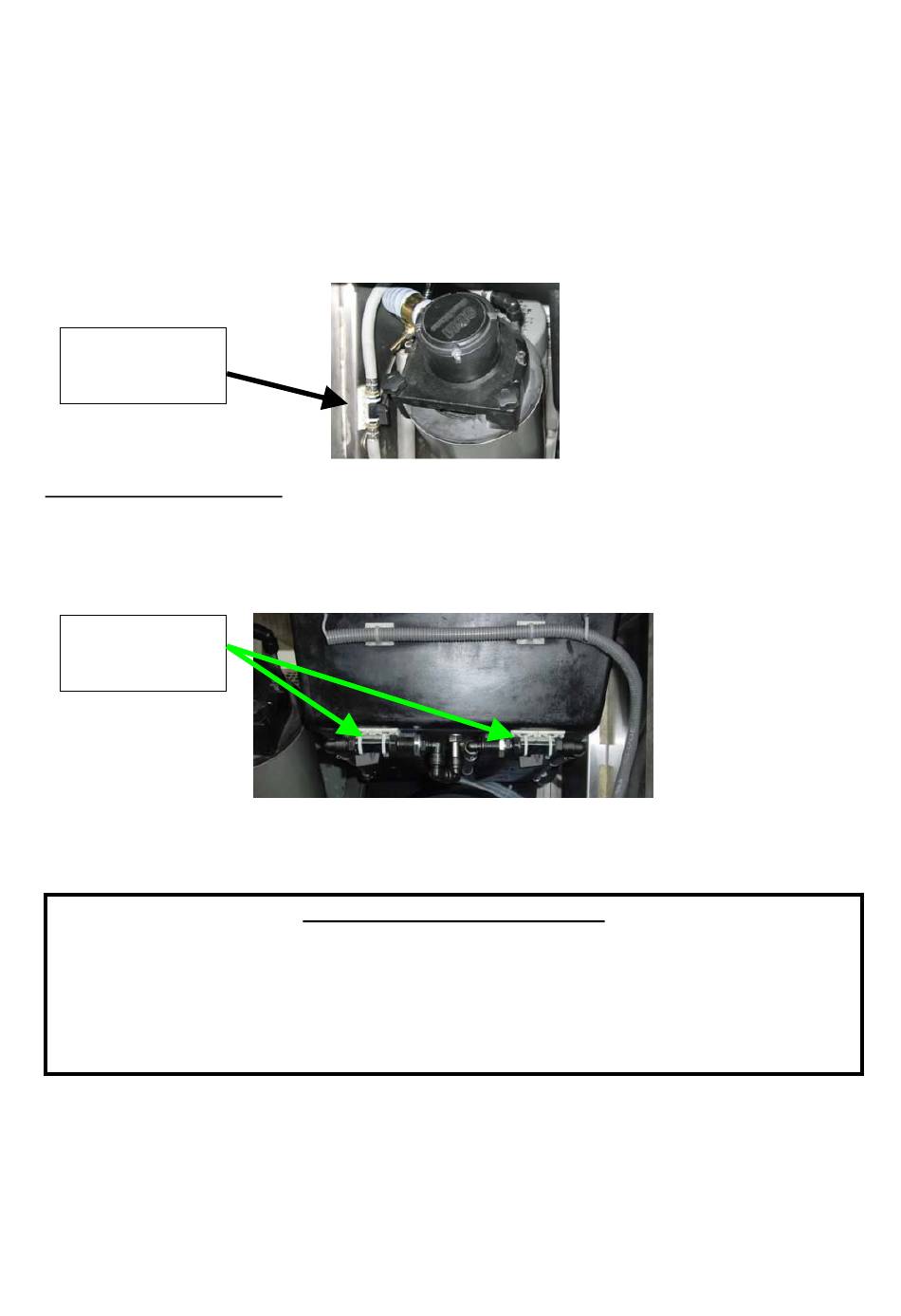

PRESS WATER
CONTROL
VALVE
Water Flow Adjustment - Sink
When the machine is operated check the water flow in the Sink, water inlet ports are located at the front and
rear of the sink. The flow should be a sufficient to wash organic waste to be processed into Disposer. If
there is evidence of splashing from sink the water flow can be reduced by adjusting the valves located at the
front of the sink.
SINK WATER
CONTROL
VALVES

B4 MAINTENANCE

MAINTENANCE OPERATIONS MUST ONLY BE CARRIED OUT BY APPROVED PERSONNEL ONLY
In order to prevent injury or damage to the Unit always handling and lifting aids when moving
heavy equipment, if in doubt consult your Manager or Safety Officer.
When accessing sink ALWAYS lock Chute Lid in the open position.
INTRODUCTION
To assure long life and reliable service of the COMPACT it is important to ensure that routine maintenance
tasks are carried out.
IMPORTANT SAFETY INSTRUCTIONS
Page 10 of 20
