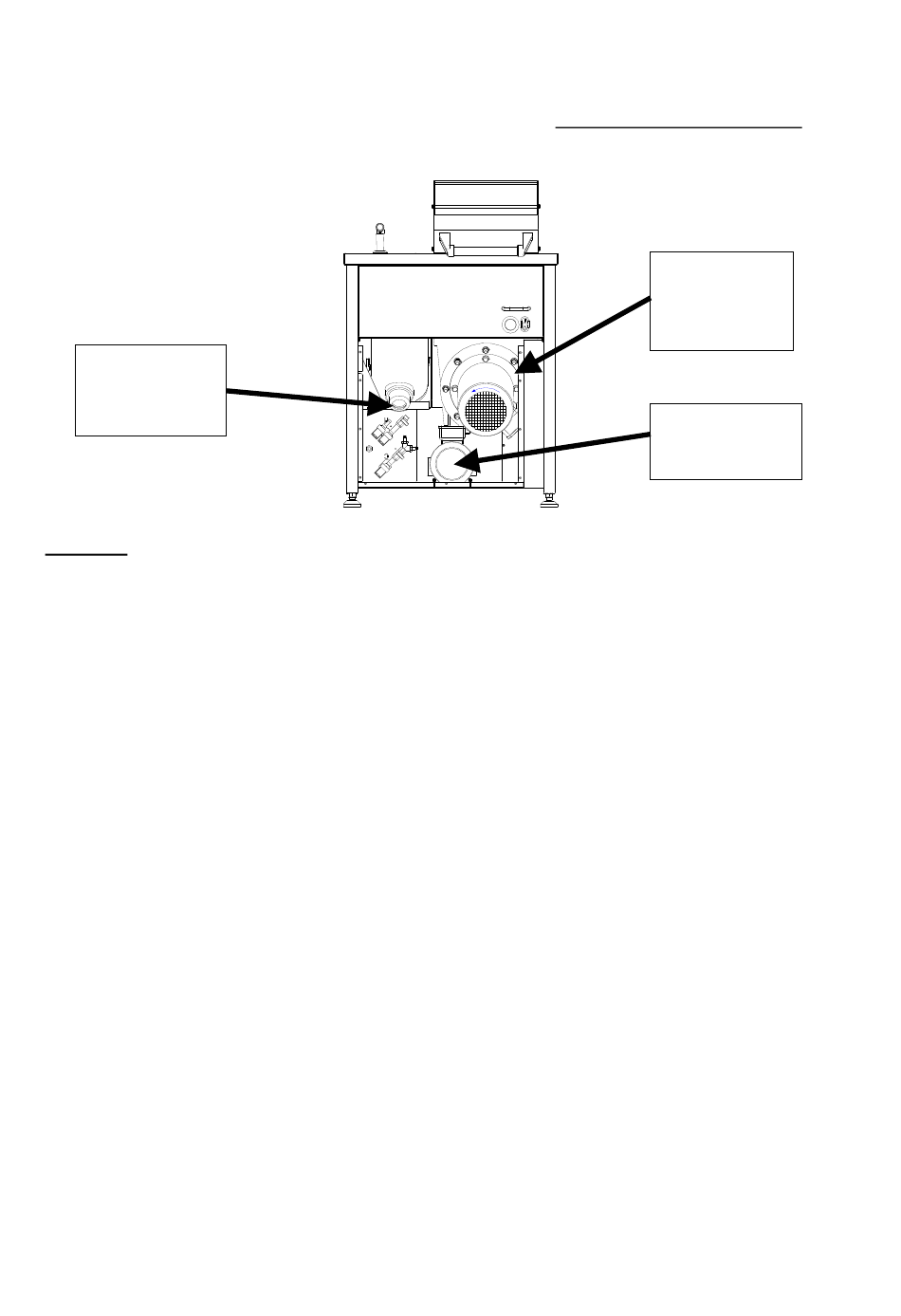

B3.3 DIRECTION OF ROTATION

When installing the unit, you must ensure that you maintain the specified direction of rotation of the
Motors when viewed from the front of the machine.
DISPOSER
(COUNTER
CLOCKWISE
ROTATION)
PRESS
(COUNTER
CLOCKWISE
ROTATION)
PUMP
(CLOCKWISE
ROTATION)
WARNING
ENSURE THAT THE UNIT IS INSTALLED WITH THE CORRECT DIRECTION OF ROTATION WHEN
VIEWED FROM THE FRONT OF THE UNIT, LOOKING ON TO THE MOTOR FAN.
If necessary, change the phases in the power supply. Following connection to the electric power supply,
check for correct direction of rotation as follows. Switch the unit to 'ON' for 2 seconds and check the
direction of rotation of the Disposer motor, counter cockwise when viewed from the front of the unit. If this
is the case, the polarity of the unit is correct. Incorrect polarity will result in damage to the appliance, and
invalidate the warranty.
Structural alterations in your power supply network can result in interchanging of phases. This means that
following any work on your internal supply network you must ensure that the COMPACT motors rotate in the
correct direction.

B3.4 GROUNDING INSTRUCTIONS

The COMPACT must be grounded. In the event of malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This COMPACT is
equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances. A qualified electrician must be consulted if there is any doubt as to whether an
outlet box is properly grounded.
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric
shock. The conductor with insulation having an outer surface that is green with or without yellow
stripes is the equipment-grounding conductor. If repair or replacement of the cord or plug is necessary,
do not connect the equipment-grounding conductor to a live terminal. Check with a qualified electrician
or serviceman if the grounding instructions are not completely understood, or if in doubt as to whether
the COMPACT is properly grounded. Do not modify the plug provided with the COMPACT if it will not
fit the outlet, a proper outlet must be installed by a qualified electrician.
This COMPACT is for use on a circuit having a nominal rating more than 120 V and more than 15 A
and is equipped with a specific electric cord and plug. No adapter should be used with this COMPACT.
If the COMPACT must be reconnected for use on a different type of electric circuit, the reconnection
must only be made by qualified service personnel; and after the reconnection, the COMPACT must
comply with all local codes and ordinances.
Page 8 of 20
