7011 Service

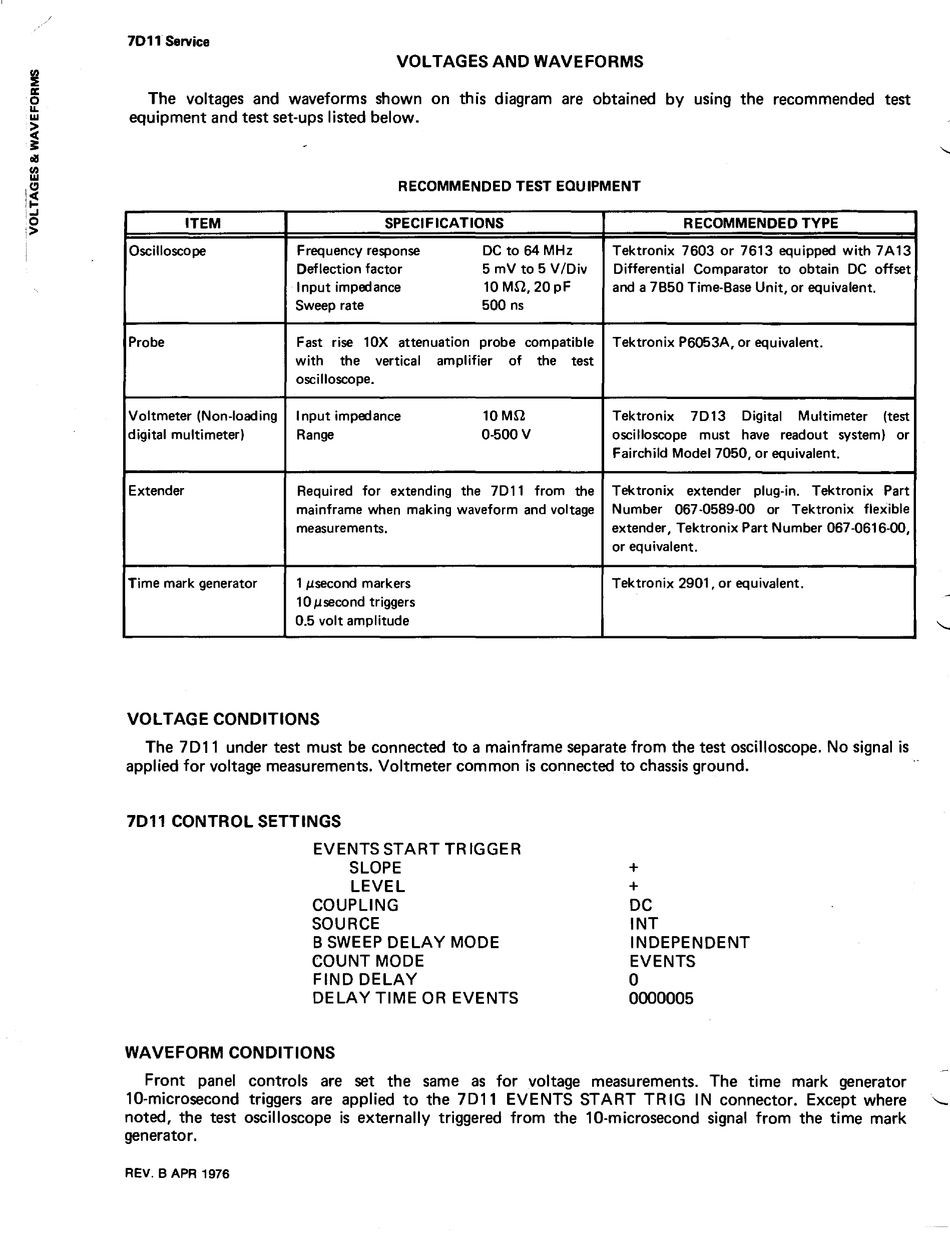

VOLTAGES AND WAVEFORMS
The voltages and waveforms shown on this diagram are obtained by using the recommended test
equipment and test set-ups listed below.
RECOMMENDED TEST EQUIPMENT
ITEM
SPECIFICATIONS
RECOMMENDED TYPE
Oscilloscope Frequency response DC to 64 MHz Tektronix 7603 or 7613 equipped with 7 A 13
Deflection factor 5 mV to 5 V/Div Differential Comparator to obtain DC offset
Input impedance 10 Mil, 20 pF
and a 7B50 Time-Base Unit, or equivalent.
Sweep rate 500 ns
Probe Fast rise 10X attenuation probe compatible Tektronix P6053A, or equivalent.
with the vertical
amplifier
of the test
oscilloscope.
Voltmeter (Non-loading I nput impedance 10Mil Tektronix 7013 Digital Multimeter (test
digital multimeter)
Range
0-500 V osci Iloscope must have readout system) or
Fairchild Model 7050, or equivalent.
Extender
Required for extending the 7011 from the
Tektronix extender plug-in. Tektronix Part
mainframe when making waveform and voltage Number 067 -0589-00 or Tektronix flexible
measurements. extender, Tektronix Part Number 067-0616-00,
or equivalent.
Time mark generator 1
~second
markers Tektronix 2901, or equivalent.
1 0
~second
triggers
0.5 volt amplitude
VOLTAGE CONDITIONS
The 7D11 under test must be connected to a mainframe separate from the test oscilloscope. No signal is
applied for voltage measurements. Voltmeter common is connected to chassis ground.
7011 CONTROL SETTINGS
EVENTS START TR IGGER
SLOPE
LEVEL
COUPLING
SOURCE
B SWEEP DELAY MODE
COUNT MODE
FIND DELAY
DELAY TIME OR EVENTS
WAVEFORM CONDITIONS
+
+
DC
INT
INDEPENDENT
EVENTS
o
0000005
Front panel controls are set the same as for voltage measurements. The time mark generator
10-microsecond triggers are applied to the 7D11 EVENTS START TRIG IN connector. Except where "-
noted, the test oscilloscope is externally triggered from the 10-microsecond signal from the time mark
generator.
REV. B APR 1976
