Tektronix 7D11 DIGITAL DELAY Service Instructions Manual page 59

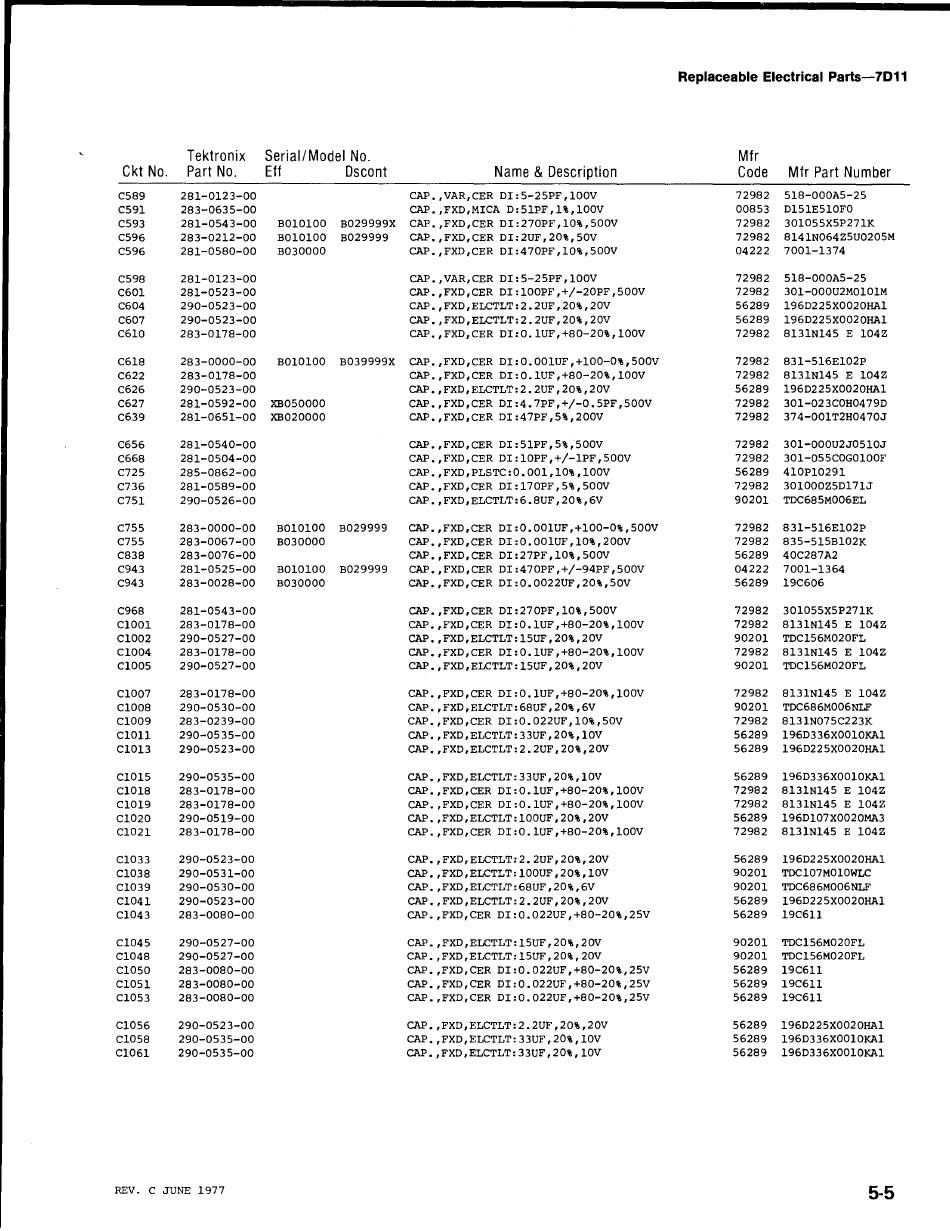

Replaceable Electrical Parts-7D11
Tektronix
Serial/Model No. Mfr
Ckt No. Part No. Eff Dscont
Name & Description Code Mfr Part Number
C589
281-0123-00
CAP.,VAR,CER DI:5-25PF,100V
72982 518-000A5-25
C591 283-0635-00 CAP.,FXD,MICA D:5IPF,1%,100V 00853
D15IE5I0FO
C593 281-0543-00 BOI0I00 B029999X CAP.,FXD,CER DI:270PF,10%,500V 72982 301055X5P271K
C596 283-0212-00 BOI0I00 B029999 CAP.,FXD,CER DI:2UF,20%,50V
72982 8141N064Z5U0205M
C596 281-0580-00 B030000
CAP. ,FXD,CER DI:470PF,10%,500V 04222 7001-1374
C598 281-0123-00 CAP.,VAR,CER DI:5-25PF,100V
72982 518-000A5-25
C601 281-0523-00
CAP.,FXD,CER DI:I00PF,+/-20PF,500V 72982 301-000U2MOI0IM
C604 290-0523-00 CAP.,FXD,ELCTLT:2.2UF,20%,20V 56289 196D225X0020HAI
C607 290-0523-00
CAP.,FXD,ELCTLT:2.2UF,20%,20V 56289 196D225X0020HAI
C610 283-0178-00 CAP.,FXD,CER DI:0.IUF,+80-20%,100V 72982 8131N145 E 104Z
C618 283-0000-00 BOI0I00 B039999X CAP.,FXD,CER DI:0.00IUF,+100-0%,500V
72982 831-516EI02p
C622 283-0178-00
CAP.,FXD,CER DI:0.IUF,+80-20%,100V 72982 8131N145 E 104Z
C626 290-0523-00
CAP.,FXD,ELCTLT:2.2UF,20%,20V 56289 196D225X0020HAI
C627 281-0592-00 XB050000
CAP.,FXD,CER DI:4.7PF,+/-0.5PF,500V 72982 301-023COH0479D
C639 281-0651-00 XB020000 CAP.,FXD,CER DI:47PF,5%,200V 72982 374-001T2H0470J
C656 281-0540-00 CAP. ,FXD,CER DI:5IPF,5%,500V 72982 301-000U2J05I0J
C668 281-0504-00
CAP.,FXD,CER DI:I0PF,+/-lPF,500V 72982 301-055COGOI00F
C725 285-0862-00 CAP.,FXD,PLSTC:0.00l,10%,100V
56289 410PI0291
C736 281-0589-00
CAP.,FXD,CER DI:170PF,5%,500V 72982 301000Z5Dl71J
C751 290-0526-00
CAP.,FXD,ELCTLT:6.8UF,20%,6V 90201 TDC685M006EL
C755 283-0000-00 BOI0I00 B029999 CAP.,FXD,CER DI:0.00IUF,+100-0%,500V 72982 831-516EI02p
C755 283-0067-00 B030000 CAP.,FXD,CER DI:0.00IUF,10%,200V 72982 835-515BI02K
C838 283-0076-00 CAP.,FXD,CER DI:27PF,10%,500V 56289 40C287A2
C943 281-0525-00 BOI0I00 B029999 CAP.,FXD,CER DI:470PF,+/-94PF,500V 04222 7001-1364
C943 283-0028-00 B030000 CAP.,FXD,CER DI:0.0022UF,20%,50V 56289 19C606
C968 281-0543-00 CAP.,FXD,CER DI:270PF,10%,500V 72982
301055X5P271K
CI001 283-0178-00 CAP.,FXD,CER DI:0.IUF,+80-20%,100V 72982 8131N145 E 104Z
CI002
290-0527-00
CAP.,FXD,ELCTLT:15UF,20%,20V 90201 TDC156M020FL
CI004
283-0178-00
CAP.,FXD,CER DI:0.IUF,+80-20%,100V 72982 8131N145 E 104Z
CI005 290-0527-00 CAP.,FXD,ELCTLT:15UF,20%,20V 90201 TDC156M020FL
CI007 283-0178-00 CAP.,FXD,CER DI:0.IUF,+80-20%,100V
72982 8131N145 E 104Z
ClO08 290-0530-00 CAP.,FXD,ELCTLT:68UF,20%,6V 90201 TDC686M006NLF
CI009 283-0239-00 CAP.,FXD,CER DI:0.022UF,10%,50V 72982 8131N075C223K
CI011 290-0535-00 CAP.,FXD,ELCTLT:33UF,20%,10V 56289 196D336XOOI0KAI
ClOD 290-0523-00 CAP.,FXD,ELCTLT:2.2UF,20%,20V 56289 196D225X0020HAI
CI015 290-0535-00 CAP.,FXD,ELCTLT:33UF,20%,10V 56289 196D336XOOI0KAI
CI018 283-0178-00
CAP.,FXD,CER DI:0.IUF,+80-20%,100V 72982 8131N145 E 104Z
CI019 283-0178-00
CAP.,FXD,CER DI:0.IUF,+80-20%,100V 72982 8131N145 E 104Z
CI020 290-0519-00 CAP.,FXD,ELCTLT:I00UF,20%,20V 56289 196DI07X0020MA3
CI021 283-0178-00
CAP.,FXD,CER DI:0.IUF,+80-20%,100V 72982 8131N145 E 104Z
CI033 290-0523-00 CAP.,FXD,ELCTLT:2.2UF,20%,20V 56289 196D225X0020HAI
CI038 290-0531-00
CAP.,FXD,ELCTLT:I00UF,20%,10V 90201 TDCI07MOI0WLC
CI039 290-0530-00 CAP.,FXD,ELCTLT:68UF,20%,6V 90201 TDC686M006NLF
CI041 290-0523-00 CAP.,FXD,ELCTLT:2.2UF,20%,20V 56289 196D225X0020HAI
CI043 283-0080-00 CAP.,FXD,CER DI:0.022UF,+80-20%,25V
56289 19C611
CI045 290-0527-00
CAP.,FXD,ELCTLT:15UF,20%,20V 90201 TDC156M020FL
CI048
290-0527-00
CAP.,FXD,ELCTLT:15UF,20%,20V 90201 TDC156M020FL
Cl050 283-0080-00 CAP. ,FXD,CER DI:0.022UF,+80-20%,25V 56289 19C611
CI051 283-0080-00 CAP. ,FXD,CER DI:0.022UF,+80-20%,25V 56289 19C611
CI053 283-0080-00
CAP. ,FXD,CER DI:0.022UF,+80-20%,25V 56289 19C611
CI056 290-0523-00 CAP.,FXD,ELCTLT:2.2UF,20%,20V 56289 196D225X0020HAI
CI058 290-0535-00 CAP.,FXD,ELCTLT:33UF,20%,10V 56289 196D336XOOI0KAI
CI061 290-0535-00 CAP.,FXD,ELCTLT:33UF,20%,10V 56289 196D336XOOI0KAI
REV. C JUNE 1977 5-5
