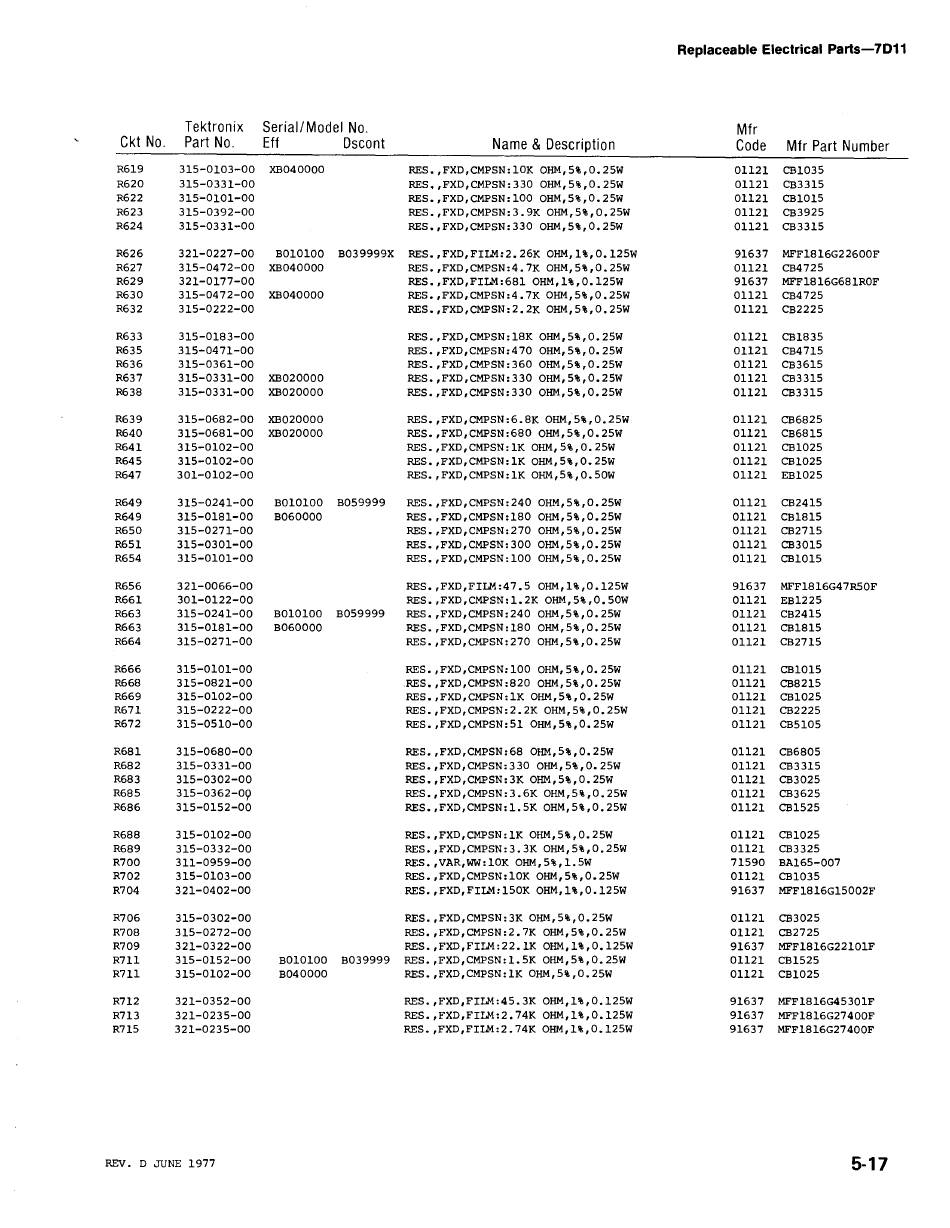

Tektronix 7D11 DIGITAL DELAY Service Instructions Manual page 71

Replaceable Electrical Parts-70ll
Tektronix
Serial/Model No.
Mfr
Ckt No. Part No.
Eft Dscont
Name & Description
Code Mfr Part Number
R619 31S-0103-00 XB040000 RES.,FXD,CMPSN:I0K OHM,S%,0.2SW
01121 CBI03S
R620
31S-0331-00 RES.,FXD,CMPSN:330 OHM,S%,0.2SW 01121 CB331S
R622 31S-0101-00
RES.,FXD,CMPSN:I00 OHM,S%,0.2SW 01121 CBI0lS
R623 31S-0392-00 RES.,FXD,CMPSN:3.9K OHM,S%,0.2SW 01121 CB392S
R624 31S-0331-00 RES.,FXD,CMPSN:330 OHM,S%,0.2SW 01121 CB331S
R626 321-0227-00 BOI0I00 B039999X RES.,FXD,FILM:2.26K OHM,I%,0.12SW
91637 MFF1816G22600F
R627 31S-0472-00 XB040000 RES.,FXD,CMPSN:4.7K OHM,S%,0.2SW 01121 CB472S
R629 321-0177-00 RES.,FXD,FILM:6810HM,I%,0.12SW 91637 MFF1816G681ROF
R630 31S-0472-00 XB040000
RES.,FXD,CMPSN:4.7K OHM,S%,0.2SW 01121 CB472S
R632 31S-0222-00
RES.,FXD,CMPSN:2.2K OHM,S%,0.2SW 01121 CB222S
R633 31S-0183-00 RES.,FXD,CMPSN:18K OHM,S%,0.2SW 01121 CB183S
R63S 31S-0471-00 RES.,FXD,CMPSN:470 OHM,S%,0.2SW 01121 CB471S
R636 31S-0361-00 RES.,FXD,CMPSN:360 OHM,S%,0.2SW 01121 CB361S
R637 31S-0331-00 XB020000 RES.,FXD,CMPSN:330 OHM,S%,0.2SW
01121 CB331S
R638 31S-0331-00 XB020000 RES.,FXD,CMPSN:330 OHM,S%,0.2SW 01121 CB331S
R639 31S-0682-00 XB020000 RES.,FXD,CMPSN:6.8K OHM,S%,0.2SW 01121 CB682S
R640 31S-0681-00 XB020000 RES.,FXD,CMPSN:680 OHM,S%,0.2SW 01121 CB681S
R641 31S-0102-00 RES.,FXD,CMPSN:IK OHM,S%,0.2SW 01121 CBI02S
R64S 31S-0102-00 RES.,FXD,CMPSN:IK OHM,S%,0.2SW
01121 CBI02S
R647
301-0102-00
RES.,FXD,CMPSN:IK OHM,S%,O.SOW
01121 EBI02S
R649 31S-0241-00 BOI0I00 BOS9999 RES.,FXD,CMPSN:240 OHM,S%,0.2SW 01121 CB241S
R649 31S-0181-00 B060000 RES.,FXD,CMPSN:180 OHM,S%,0.2SW 01121 CB181S
R6S0 31S-0271-00 RES.,FXD,CMPSN:270 OHM,S%,0.2SW 01121 CB271S
R6S1 31S-0301-00 RES.,FXD,CMPSN:300 OHM,S%,0.2SW 01121 CB301S
R6S4 31S-0101-00
RES.,FXD,CMPSN:I00 OHM,S%,0.2SW 01121 CBI0lS
R6S6 321-0066-00 RES.,FXD,FILM:47.S OHM,I%,0.12SW 91637
MFF1816G47R50F
R66l 301-0122-00 RES.,FXD,CMPSN:l.2K OHM,S%,O.SOW
01121 EB122S
R663 31S-0241-00 BOI0I00 BOS9999 RES.,FXD,CMPSN:240 OHM,S%,0.2SW 01121 CB241S
R663 31S-0181-00 B060000 RES.,FXD,CMPSN:180 OHM,S%,0.2SW 01121 CB181S
R664 31S-0271-00 RES.,FXD,CMPSN:270 OHM,S%,0.2SW 01121 CB271S
R666 31S-0101-00 RES.,FXD,CMPSN:I00 OHM,S%,0.2SW
01121 CBI0lS
R668
31S-0821-00
RES.,FXD,CMPSN:820 OHM,S%,0.2SW
01121 CB821S
R669 31S-0102-00 RES.,FXD,CMPSN:IK OHM,S%,0.2SW 01121 CBI02S
R671 31S-0222-00 RES.,FXD,CMPSN:2.2K OHM,S%,0.2SW
01121 CB222S
R672 31S-0S10-00 RES.,FXD,CMPSN:SI0HM,S%,0.2SW
01121 CBSI0S
R681 31S-0680-00 RES.,FXD,CMPSN:680HM,S%,0.2SW 01121 CB680S
R682 31S-0331-00 RES.,FXD,CMPSN:330 OHM,S%,0.2SW 01121 CB331S
R683 31S-0302-00 RES.,FXD,CMPSN:3K OHM,S%,0.2SW 01121 CB302S
R68S
31S-0362-0
9
RES.,FXD,CMPSN:3.6K OHM,S%,0.2SW
01121 CB362S
R686 31S-01S2-00 RES.,FXD,CMPSN:l.SK OHM,S%,0.2SW 01121 CBlS2S
R688 31S-0102-00 RES.,FXD,CMPSN:IK OHM,S%,0.2SW 01121 CBI02S
R689 31S-0332-00 RES.,FXD,CMPSN:3.3K OHM,S%,0.2SW 01121 CB332S
R700
311-09S9-00
RES.,VAR,WW:I0K OHM,S%,I.SW
71S90 BA16S-007
R702 31S-0103-00 RES.,FXD,CMPSN:I0K OHM,S%,0.2SW
01121 CBI03S
R704 321-0402-00 RES.,FXD,FILM:lS0K OHM,I%,0.12SW 91637
MFF1816GlS002F
R706 31S-0302-00 RES.,FXD,CMPSN:3K OHM,S%,0.2SW 01121 CB302S
R708
31S-0272-00
RES.,FXD,CMPSN:2.7K OHM,S%,0.2SW
01121 CB272S
R709 321-0322-00 RES.,FXD,FILM:22.1K OHM,I%,0.12SW 91637 MFF1816G22101F
R711 31S-01S2-00 BOI0I00 B039999 RES.,FXD,CMPSN:l.SK OHM,S%,0.2SW 01121 CBlS2S
R711 31S-0102-00 B040000 RES.,FXD,CMPSN:IK OHM,S%,0.2SW 01121 CBI02S
R712 321-03S2-00 RES.,FXD,FILM:4S.3K OHM,I%,0.12SW 91637
MFF1816G4S301F
R713 321-023S-00
RES.,FXD,FILM:2.74K OHM,I%,0.12SW
91637 MFF1816G27400F
R71S 321-023S-00 RES.,FXD,FILM:2.74K OHM,I%,0.12SW 91637
MFF1816G27400F
REV. D JUNE 1977
5-17
