EBS 2500 Installation And First Startup

signature: 2010/02/00086#1 EN
EBS-2500 Printer – Installation and First Start up
3
2
1
12 13 14 15 16 17
POWER SOCKET
®
EBS
NETZEINGANG
Ink-Jet Systems
AC IN 100 – 240 V
~
FOTO /
USB
6
7
18
19
4
No. of pages
6
5
4
SHAFT LAN
EBS Ink-Jet Systeme GmbH
D-51588 Nümbrecht-Elsenroth, Germany
++49 (0)2293-939-0
www.ebs-inkjet.de
9
10
11
4
20
1
Unscrewing filter
21
4
11
22
Screwing filter in
Alte Ziegelei 19-25
++49 (0)2293-939-3
mail@ebs-inkjet.de
e-mail
March 24, 2010

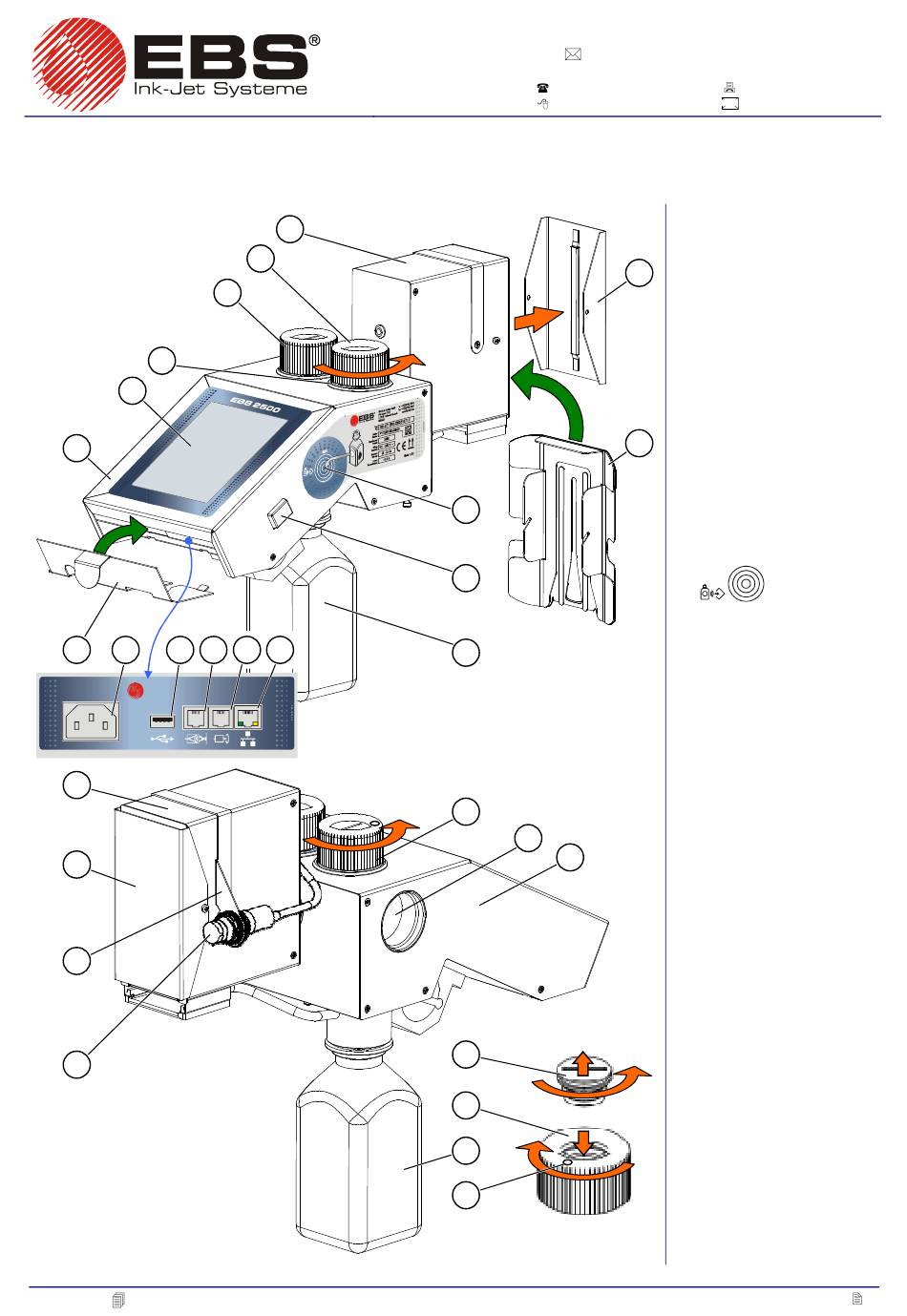

Printer system components:
1. Printer controller with ink system.
2. Control panel LCD display.
7
3. Seat where bottle
4. Ink system vent valve with air
filter 21.
5. Ink pot cap.
6. Print head.
7. Protection for securing print head
nozzles against mechanical
exposure and ink spill in case of
tilt or shock during carriage.
8
8. Head slide to ensure that objects
to be labelled are precisely
guided and hit no print head
edge.
9. Ink bottle transponder reader
(marked with symbol
).
IMS
10. Power switch.
11. Blue bottle for ink slops.
12. Cover for protecting back panel
connection sockets.
13. Mains socket.
14. USB port.
15. Socket for external photo-
detector.
16. Socket for conveyor shaft-
encoder.
17. Ethernet socket.
18. Photo-detector holder.
19. External photo-detector.
20. Pocket in the left wall of controller
to store unscrewed cap 5.
21. Filter of air sucked into ink
system.
22. Indicator of valve
23. Ink bottle (a smaller capacity
starter bottle of ink is supplied
together with printer).
24. Stand for fixing printer to.
25. Controller handle for stand
Fig. 1
23 is fixed.
4 position.
24.
