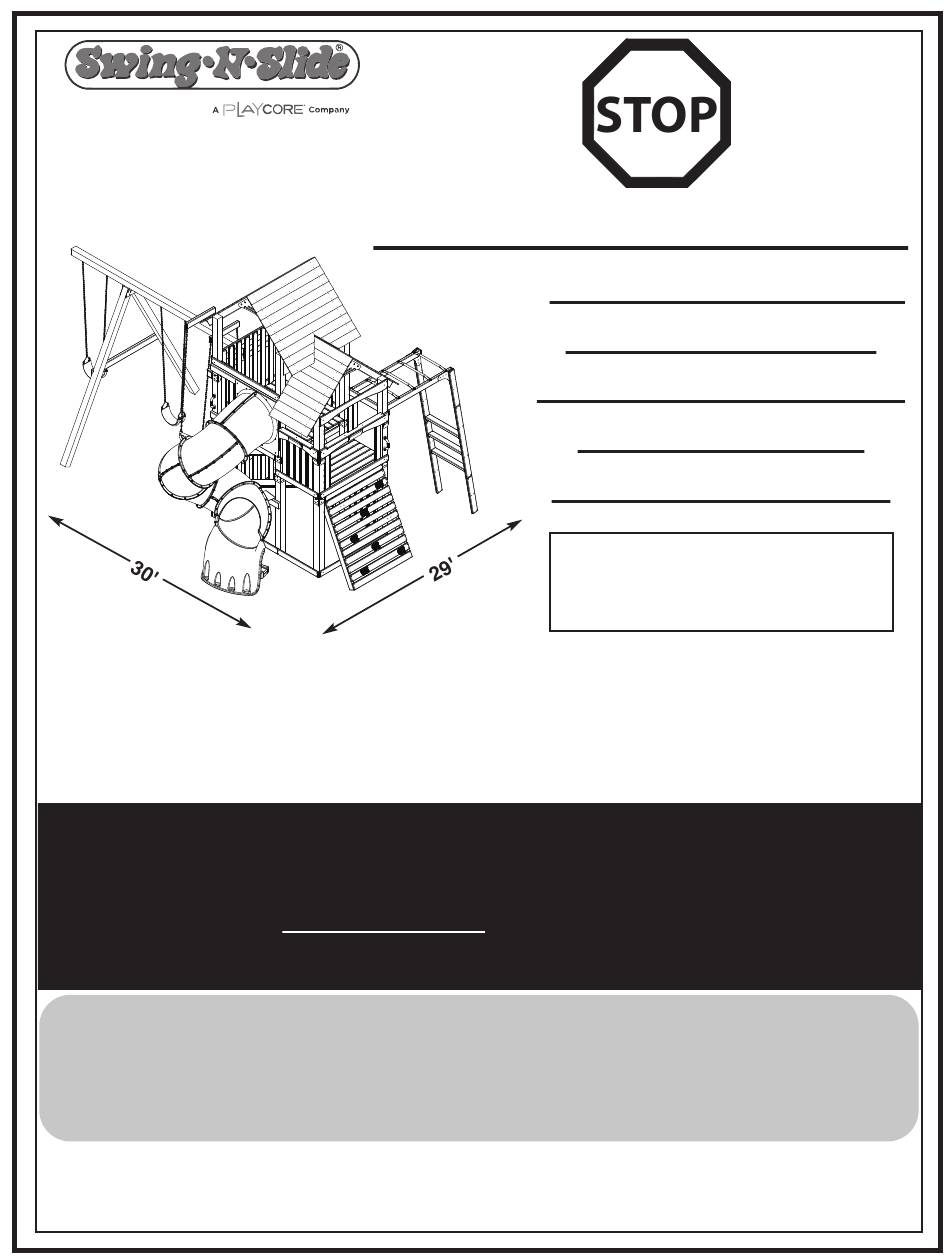

PB 9240
READ THIS FIRST
FOR DIRECTIONS
ON ATTACHING
THE TURBO TUBE
SLIDE TO THE
SKY TOWER KIT:
No. of Children: Up to 12
Min. Use Zone: 30 ' x 29 '
Set Dim. 18 'W x 14 'L x 12'H
Est. Building Time: 10-12 hr.
When attaching the Turbo Tube Slide to the Sky Tower Kit,
certain parts of the tower must be modified. Please familiarize
yourself with the steps included in this plan so that you can
adapt your unit properly as you construct it.
IMPORTANT!!
PLEASE READ BEFORE BEGINNING ASSEMBLY!!
Please make sure all lumber, hardware and accessory parts are accounted for. If you are
DO NOT RETURN
missing anything, please
to the store where purchased. Please call our
Customer Service Department at the number below.
To register your product visit:
http://www.swing-n-slide.com
Other benefits include information on product warranties, assembly plan updates, joining our
mailing list for new products and promotions, receiving our newsletter, and providing feedback
on products.
Swing•N•Slide • 1212 Barberry Drive • Janesville, Wisconsin 53545
Visit our web site at: www.swing-n-slide.com or call us at
1-800-888-1232

Advertisement

loading
Need help?

Need help?

Do you have a question about the Swing-N-Slide PB 9240 and is the answer not in the manual?

Questions and answers

Related Manuals for Playcore Swing-N-Slide PB 9240

Summary of Contents for Playcore Swing-N-Slide PB 9240

  • Page 1 PB 9240 READ THIS FIRST FOR DIRECTIONS ON ATTACHING THE TURBO TUBE SLIDE TO THE SKY TOWER KIT: No. of Children: Up to 12 Min. Use Zone: 30 ' x 29 ' Set Dim. 18 'W x 14 'L x 12'H Est.
  • Page 2 Safety Checklist for Swing-N-Slide Play Sets and ccessories Observing the following statements and warnings reduces the likelihood of serious or fatal injury Installation Safety – Have You: Consulted the assembly instructions supplied with your particular model? Noted this accessory is to be used only on Swing•N•Slide approved designs? (Do not alter its design or add/remove components.) Made sure all hardware is tightened securely? (Supplied bolt covers must also be fastened securely.) Using a hacksaw, cut off all protruding threaded ends of bolts and other fasteners and remove any sharp edges with a metal file as needed, and coated fastener ends with lead free paint?
  • Page 3 This product is intended for single family home/residential use only and not intended for use in any public setting. lacement in any public setting constitutes a misuse of this product. IMPORT NT! DDITION L REQUIRED S FETY INST LL TION INSTRUCTIONS According to ASTM requirements, all kits must be anchored to the ground and, if the unit has a climbing rope, the rope end must be anchored to the ground.
  • Page 4 TURBO TUBE SLIDE TOWER INSTRUCTIONS Sky Tower Turbo Cut List Lumber Purchased Separately - (4) 2'' x 4'' x 8’ 18'' 18'' 18'' 11-1/4'' 8-1/4'' 8-1/4'' (1) 2'' x 4'' x 96'' 32'' 23'' 23'' (1) 2'' x 4'' x 96'' 25'' 12'' 47-1/2''...
  • Page 5 TURBO TUBE SLIDE TOWER INSTRUCTIONS •W RNING• void splitting your Look for ‘’TOP’’ lumber by offsetting Use a 2’’ lag screw stamp on brackets to hold bracket in your screws at least while installing. place for later use. 3/4’’ from edge. Frame 1 onstruction 2-1/2'' screws...

  • Page 6: Back Of Unit

    TURBO TUBE SLIDE TOWER INSTRUCTIONS Fig. 8 NOTE: There must be a 1/8'' Nominal Gap between all deck boards. Fig. 8a (11) [PF 3902] 5/4'' x 4'' x 47-1/2'' 2-1/2'' screws per joint 2-1/2'' screws per joint BACK OF UNIT (View Rotated 90˚) 2-1/2'' screw MODIFIC TION: Install PF 3883 as shown in (Fig.
  • Page 7 TURBO TUBE SLIDE TOWER INSTRUCTIONS Fig. 9 [PF 3903] 5/4'' x 4'' x 47-1/2'' 2-1/2'' Fig. 9a screws per joint FLUSH 2-1/2'' screws per joint FLUSH 2-1/2'' screws 2-1/2'' screw MODIFIC TION: Install front PF 3900 as shown in (Fig. 9a). DO NOT install the PF 3900 on the back of the deck, as shown in (Fig.
  • Page 8 TURBO TUBE SLIDE TOWER INSTRUCTIONS Fig. 17 NOTE: There must be a 2'' Nominal Gap between barrier boards. Fig. 17a Use 2-1/2'' screws to 1-1/2'' deck secure 1'' x 4'' to 4'' x 4'' screws per joint MODIFIC TION: DO NOT install the PF 3881 Barrier on the back of the deck, as shown in (Fig.
  • Page 9 TURBO TUBE SLIDE TOWER INSTRUCTIONS Fig. 18 1-1/2'' screws per joint NOTE: There must be a 2-3/8'' Nominal Gap between all barrier boards. MODIFIC TION: Install barrier as shown in (Fig. 18). Barrier Boards cont. 1-1/2'' screw 1. Install Barrier Boards as shown in (Fig. 18).
  • Page 10 TURBO TUBE SLIDE TOWER INSTRUCTIONS Fig.20a Fig. 20 1-1/4'' Lag 2'' Lag NOTE: Upper screws are (2) 1-1/4'' Lag Screws, Lower screws are (3) 2'' Lag Screws. FLUSH 2'' lag screws Fig. 20b Per Bracket 1-1/4'' lag screws Per Bracket 2-1/2'' screws per joint...
  • Page 11 TURBO TUBE SLIDE TOWER INSTRUCTIONS Fig. 22 NOTE: There must be a 1/4'' Nominal Gap between all deck boards. (6) [PF 3902] 5/4'' x 4'' x 47-1/2'' Fig. 22a 2-1/2'' screws per joint [PF 3880] 1'' x 4'' x 30'' 2-1/2'' screws per joint...
  • Page 12 TURBO TUBE SLIDE TOWER INSTRUCTIONS Fig. 23 NOTE: There must be a 1'' Nominal Gap between (5) [PF 3879] 1'' x 4'' x 28-1/4'' barrier boards. 1-1/2'' screws per joint Fig. 23a (2) [PF 3910] 5/4'' x 4'' x 28-1/4'' 1'' GAP 1-1/2'' screws...
  • Page 13 TURBO TUBE SLIDE TOWER INSTRUCTIONS [PF 3908] 2'' x 4'' x 11-7/8'' (2) 2-1/2'' screws per joint Fig. 27b Fig. 27 Fig. 27a 2'' Lag screws per rung [PF 3875] 1'' x 4'' x 18-1/4'' 13-7/8'' LADDER RUNG 11-5/8'' (16) 1-1/4'' screws per side 11-5/8''...
  • Page 14 TURBO TUBE SLIDE TOWER INSTRUCTIONS Fig. 32a Fig. 32 Pre-Drill Perforaciones previas 1-1/4'' Lag Screws per bracket 1-1/4'' Lag screws 1-3/4'' per bracket FLUSH FLUSH 1-1/4'' Lag Screws per bracket Fig. 32b 74-5/8" 9-1/2" 16" 8'' Diameter 24-1/2'' MODIFIC TION: Install Monkey Bars on front of unit, as shown in (Fig. 32a) and (Fig.
  • Page 15 TURBO TUBE SLIDE TOWER INSTRUCTIONS Fig. 37 [PF 3882] 1'' x 4'' x 40-1/4'' [PF 3876] 1'' x 4'' x 22-3/4'' 2'' screws 2'' screws 2'' screws [PF 3882] 1'' x 4'' x 40-1/4'' THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM AGES 2-10 YEARS Fig.
  • Page 16 TURBO TUBE SLIDE TOWER INSTRUCTIONS Fig. 38a Fig. 38 (2) [PF 3898] 5/4'' x 4'' x 3-1/2'' (4) [PF 3898] 5/4'' x 4'' x 3-1/2'' 2'' screws 2'' screws per board per board Fig. 38c Fig. 38b (2) [PF 3874] 1'' x 4'' x 18'' 1-1/4'' 1-1/4'' screws...
  • Page 17 TURBO TUBE SLIDE TOWER INSTRUCTIONS Fig. 1 2-1/2'' screws per board 25'' 2-1/2'' screws per board 92'' 63-1/2'' 31-1/2'' Fig. 1a 3-1/4'' Gap Between Each 2-1/2'' screw Barrier Board Slide Barrier Construction 1. Install slide and barrier support boards as shown 2'' x 4'' x 32'' in (Fig.
  • Page 18 TURBO TUBE SLIDE TOWER INSTRUCTIONS Fig. 2 2-1/2'' screws 2-1/2'' screws 2-1/2'' screws Fig. 2a 2-1/2'' screw Slide Barrier Cont. 1. Install (3) 2'' x 4'' Boards as shown in (Fig. 2). 2. Install (2) 2'' x 4'' x 23'' Slide Support Boards on the inside of your barrier as shown in (Fig.
  • Page 19 TURBO TUBE SLIDE TOWER INSTRUCTIONS REFERENCE THE PLAN PICTURED FOR SLIDE ASSEMBLY...
  • Page 20 Questions???... Call our Customer Service Department at 1-800-888-1232 © PlayCore Inc. 2012 Printed In USA LA xxxx...
