- Page 1 Z5150 Q Swivel bracket Mounting instructions...
- Page 2 Please refer to the information in the operating manual. General Information Mounting instructions Z5150 Q Swivel bracket Version 2.0E, 10/2003, D2952.E.02 © by d&b audiotechnik AG 2003; all rights reserved. The information contained in this manual has been carefully checked for accuracy, at the time of going to press, however no guarantee is given with respect to the correctness.

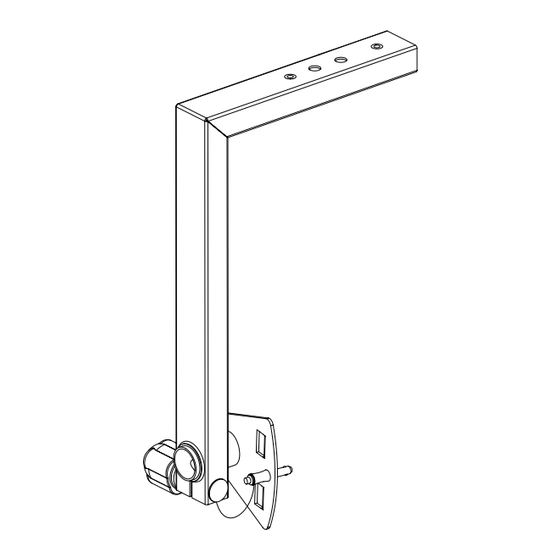

- Page 3 The bracket may only be used in an upright position or suspended vertically. Part list Z5150 Q Swivel bracket − 1 x Z5150 Q Swivel bracket [1] with securing pin [S] that is attached to the bracket by a steel wire. Weight Z5150 Q Swivel bracket 2.5 kg/5.5 lb...
- Page 4 Assembly The Z5150 Q Swivel bracket is connected to the quick lock adapter → ↓ plate of the cabinet as shown in the graphic opposite: Attach the bracket fixing plate into the recessed holes of the cabinets quick lock adapter plate.
