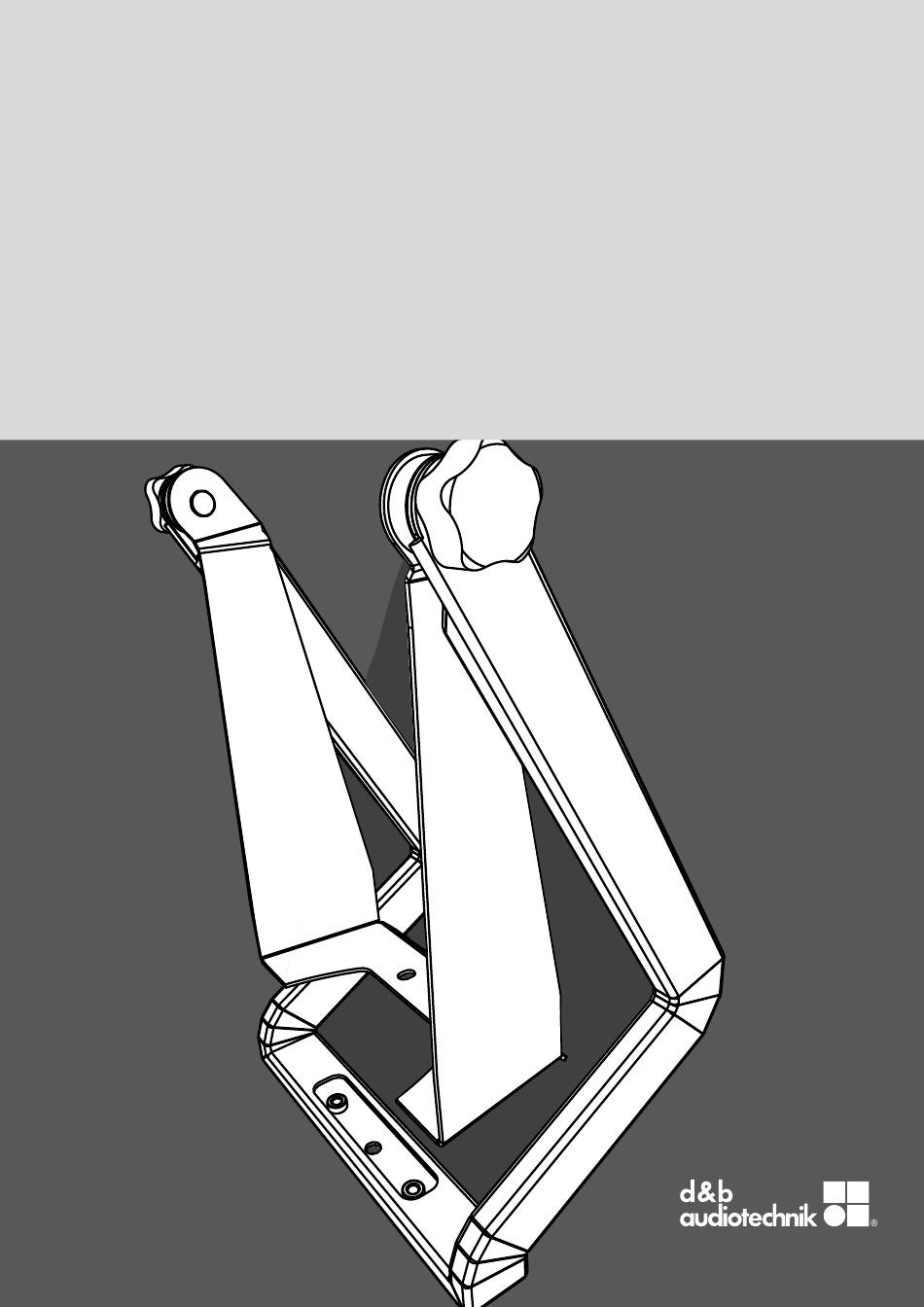

- Page 1 Z5383 Mounting instructions 1.4 en...
- Page 2 General information Z5383 Mounting instructions Version: 1.4 en, 04/2020, D2821.EN .01 Copyright © 2020 by d&b audiotechnik GmbH & Co. KG; all rights reserved. Keep this document with the product or in a safe place so that it is available for future reference.
-
Page 3: Table Of Contents
1.2 Safety precautions..............4 1.3 Intended use................5 1.4 Assembly..................5 1.5 Adjustments................. 5 1.6 High stand assemblies..............6 1.7 Built-in dimensions............... 7 Manufacturer's declaration..........8 2.1 EU conformity (CE symbol)............8 2.2 Disposal..................8 d&b Z5383 Mounting instructions 1.4 en... -
Page 4: Z5383 Vp Mounting Bracket
Load safety information The Z5383 VP Mounting bracket is designed to support one V7P/ V10P or Vi7P/Vi10P loudspeaker. No additional loads must be added. The bracket must only be used in an upright position or suspended vertically as shown in the graphic opposite. -
Page 5: Intended Use
1.3 Intended use The d&b Z5383 VP Mounting bracket must only be used in conjunction with d&b V-Point or Vi-Point cabinets. The tie bar of the outer bracket is supplied with two M8 threaded inserts at the standard d&b spacing (115 mm [4.5"]) for attaching the following accessories: ▪... -
Page 6: High Stand Assemblies
Z5383 with Z5009 Loudspeaker stand with winder. ▪ During assembly pay attention to the possible risk of crushing or Z5383 with Z5013 Loudspeaker stand with winder M20. jamming fingers. Wear suitable protective clothing such as Z5383 with Z5550 M20 Stand adapter. -
Page 7: Built-In Dimensions
1.7 Built-in dimensions Z5383 VP Mounting bracket, built-in dimensions in mm [inch] Z5383 VP Mounting bracket dimensions in mm [inch] Built-in dimensions Z5010/Z5012 Assembly d&b Z5383 Mounting instructions 1.4 en... -
Page 8: Manufacturer's Declaration
When out of use the rigging components must be disposed of in accordance with the national environmental regulations. Ensure that damaged rigging components are disposed of in a way that they cannot be used again. d&b Z5383 Mounting instructions 1.4 en... - Page 9 www.dbaudio.com...
