Summary of Contents for dji ZENMUSE XT 2
- Page 1 ZENMUSE XT 2 THERMAL BY Quick Start Guide 2018.05 V1.2 GlobalTestSupply www. .com ality Products Online at: sales@GlobalTestSup...
-
Page 2: Disclaimer And Warning
Failure to read and follow instructions and warnings in this document may result in serious injury to yourself or others, or damage to your DJI product or damage to other objects in the vicinity, or violation of the EU export control law. This document and all other collateral documents are subject to change at the sole discretion of SZ DJI Technology Co., Ltd. - Page 3 (such as a filter, lens hood, etc.) to the camera. The Zenmuse XT 2 is a delicate instrument. Do not disassemble the gimbal or camera as this will cause permanent damage. Be sure to use a DJI approved battery, otherwise performance may be hindered and internal malfunction or damage may occur.

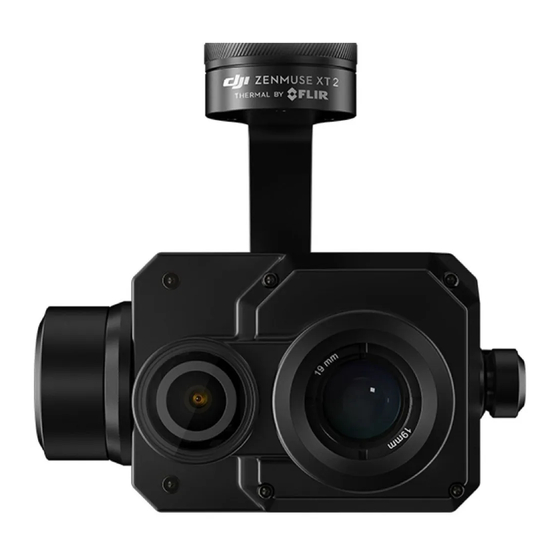

- Page 4 As with other DJI 3-axis gimbal systems, the Zenmuse XT 2 can be mounted onto the Matrice 200 series or Matrice 600 series aircraft and stream live HD video to the DJI Pilot app. This makes it excellent for aerial thermal applications such as inspection and maintenance, search and rescue, and precision agriculture.
-
Page 5: Installation
1. Gimbal Connector 5. Visual Camera 2. Pan Motor 6. Infrared Thermal Camera 3. microSD Slots 7. Roll Motor 4. Tilt Motor Installation 1. Remove the gimbal cap. 2. The following installation display takes the Matrice 200 aircraft as an example. Rotate the gimbal connector to the unlocked position and insert the gimbal, and then rotate the gimbal connector to the locked position. -
Page 6: Camera Controls
2. Record Button 3. Shutter Button 4. Right Dial DJI Pilot App The touch interface can be used for capturing photos, recording videos, and playback. The Spotlight, Digital Zoom, Display Mode, Palette, Scene, and Isotherm functions, etc. can all be configured in the app. -
Page 7: Specifications
Specifications General Name Zenmuse XT 2 25 mm lens: 123.7×112.6×127.1 mm Dimensions Other lens versions: 118.02×111.6×125.5 mm 25 mm lens: 629 g Weight Other lens versions: 588 g Gimbal Angular Vibration Range ±0.01° Mount Detachable Controllable Range Tilt: +30° to -90°, Pan: ±320°... - Page 8 Working Modes Capture, Record, Playback Single Shot Still Photography Modes Burst Shooting (3/5 frames) Interval (2/3/5/7/10/15/20/30 sec) Video Caption Supported Anti-flicker Auto, 50 Hz，60 Hz microSD card. Max capacity: 128 GB. UHS-3 required. Recommended model: Storage Sandisk Extreme 16/32 GB UHS-3 microSDHC Sandisk Extreme 64/128 GB UHS-3 microSDXC Supported File System FAT 32 (≤32GB)，exFAT (>32GB)
