- Page 1 Instruction Manual Alfa Laval GJ Tote Blast Station First published: XXXX-XX ESE03473-EN1 2016-12 Original manual...
-
Page 3: Table Of Contents
7.1. Technical data ..................7.2. Pump curves at 60 Hz ................8. General information ................... 8.1. Recommendations and general safety precautions ........... 8.2. Service and Repair ................8.3. How to Order Spare Parts ............... 8.4. How to contact Alfa Laval Kolding A/S ............ -
Page 4: Ec Declaration Of Conformity
+45 79 32 22 00 Phone No. hereby declare that XXXXXX Designation Alfa Laval GJ Tote Blast Station Type From serial numbers from T-0100 to T-XXXX is in conformity with the following directive with amendments: Machinery Directive 2006/42/EC - DS/EN ISO 12100:2011... -
Page 5: Safety
2 Safety Unsafe practices and other important information are emphasised in this manual. Warnings are emphasised by means of special signs. Always read the manual before using the Alfa Laval GJ Tote Blast Station! 2.1 Important information WARNING Indicates that special procedures must be followed to avoid serious personal injury. -
Page 6: Introduction
This instruction manual is published by Alfa Laval without any warranty. Improvements and changes to this instruction manual may at any time be made by Alfa Laval without prior notice. Such changes will, however, be incorporated in new editions of this instruction manual. -
Page 7: Installation

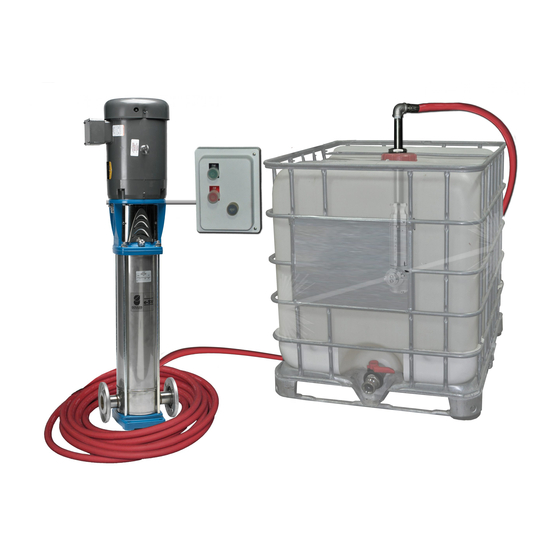

4 Installation 4.1 Unpacking/delivery The Alfa Laval Tote Blast Station will arrive on a skid with separate boxes for the pump, hose, and control panel. All of the components in the system include: - Multistage centrifugal pump - Control panel - ¾”... -
Page 8: System Layout
Use four (4) vibration-resistant wedge stud anchors or equivalent to mount the vertical multistage pump. For all electrical work including mounting, positioning and wiring of all system components, Alfa Laval recommends hiring a professional electrician to install everything according to industry standards. -
Page 9: Pump And Control Panel Mounting
4 Installation 4.4 Pump and control panel mounting Alfa Laval recommends that when mounting the pump and control panel, to use the supervision and direction of a professional electrician to ensure proper installation and safety precautions are taken. For installation of the pump, Alfa Laval recommends the following tools and materials:... -
Page 10: Pump Set-Up
Be sure to remove the plastics caps on the flanges of the pump. The Tote Blast Station comes with one ¾” diameter by 50’ long hose to run from the pump outlet to the Alfa Laval. This hose will come preassembled from Alfa Laval with a pump flange and reducer bushing on one end. To install to the pump, first remove the end caps from the pump’s discharge flange which can be determined by the flow arrow located towards the bottom of the pump. -
Page 11: Pump Priming
4.7 Electrical set-up Alfa Laval recommends that all electrical work be done by a professional electrician using the proper industry standards. The electrical diagram for the control panel can be found in the appendix as well as diagrams for the control panel timer. The control panel is designed for either 3 phase 230 volt or 460 volt power. -
Page 12: Operation
NOTE If the tote does not gravity drain through the 2” drain and the tote begins to fill with washing fluid, please contact Alfa Laval immediately to re-size the Alfa Laval GJ tank cleaning machine to 19gpm or less... -
Page 13: Maintenance
7 Technical data It is important to observe the technical data during installation, operation and maintenance. Inform personnel about the technical data. 7.1 Technical data TECHNICAL DATA Pump Type ........Grundfos CRI vertical multistage Model . -
Page 14: Pump Curves At 60 Hz
7 Technical data It is important to observe the technical data during installation, operation and maintenance. Inform personnel about the technical data. 7.2 Pump curves at 60 Hz Flow rate Pump model Power rating 12 gpm CRI 3-19 3 HP / 2.2 KW 19 gpm CRI 3-25 5 HP / 3.7 KW... -
Page 15: General Information
- If the tote does not gravity drain through the 2” drain and the tote begins to fill with washing fluid, please contact Alfa Laval immediately to re-size the Alfa Laval to 19gpm or less - Using 460 volts to the control panel will cause damage to the control panel. If 460 volts is required please contact Alfa Laval immediately - Make sure before use that the pump has been properly primed. - Page 16 © Alfa Laval Corporate AB This document and its contents is owned by Alfa Laval Corporate AB and protected by laws governing intellectual property and thereto related rights. It is the responsibility of the user of this document to comply with all applicable intellectual property laws. Without limiting any rights related to this document, no part of this document may be copied, reproduced or transmitted in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), or for any purpose, without the expressed permission of Alfa Laval Corporate AB.
