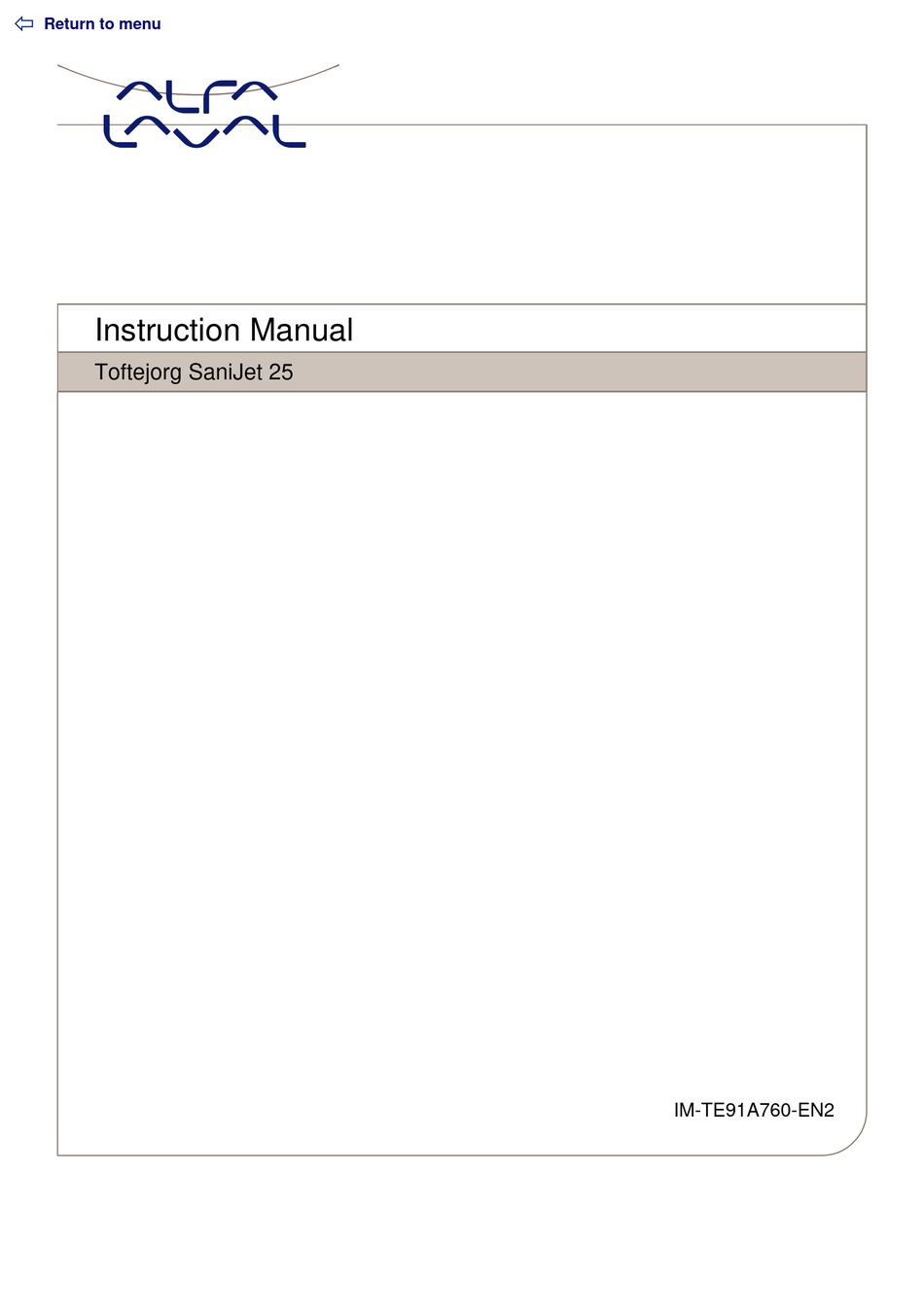

ï Return to menu Instruction Manual Toftejorg SaniJet 25 IM-TE91A760-EN2... -
Page 2: Table Of Contents
General Installation Instructions..................10 Normal Operation......................11 Trouble Shooting Guide ..................12 Symptom: Slow rotation or failure of machine to rotate............. 12 How to contact Alfa Laval Tank Equipment A/S............12 Cross Sectional Drawing ..................13 Service Card......................15 Claim Report Working Conditions ................16... -
Page 3: Introduction
This manual has been prepared as a guide for the persons who will be only operating your tank cleaning machine. If the Toftejorg SaniJet 25 stops rotating unintentionally, please return the machine to Alfa Laval Tank Equipment A/S. The type and serial number are placed on the gear house of the tank cleaning machine. -
Page 4: General Description
Return to menu General Description The Toftejorg SaniJet 25 is a media driven and media lubricated tank cleaning machine. No lubricating substances such as oil, grease etc. are used. All materials are selected for contact with food, and the machine is self-cleaning i.e. all internal and external surfaces are cleaned. -
Page 5: Configurations
This self-draining is only ensured, if the machine is installed in upright position. Configurations Connection Nozzles (mm) Impeller 4 x ø4.2 35° 1" BSP, Female Sanitary 4 x ø5.2 -2.5° 4 x ø6.2 -22.5° Instruction Manual, Toftejorg SaniJet 25 Page 5 IM-TE91A760-EN2... -
Page 6: Accessories
1 ½” ISO Dairy pipe: ø38 x 1.2 1” BSP TE52D032 1 ½” SWG pipe: ø38 x 1.6 1” NPT TE52D033 1“ ANSI Sch.40S: ø33.4 x 3.38 1” BSP TE52D034 Sanitary connection Use Cone with Gasket. Page 6 Instruction Manual, Toftejorg SaniJet 25 IM-TE91A760-EN2... - Page 7 ï Return to menu - Blank page - Instruction Manual, Toftejorg SaniJet 25 Page 7 IM-TE91A760-EN2...
-
Page 8: Technical Data
Recommended inlet pressure 5-7 bar (70-100 psi) Working temperature max. 95°C (200° F) Max. temperature 140°C (284°F) Materials Stainless steel AISI 316L, SAF 2205, Nitronic 60, PEEK, EPDM, PFA HP Principal dimensions in mm Page 8 Instruction Manual, Toftejorg SaniJet 25 IM-TE91A760-EN2... - Page 9 In order to achieve the performance indicated in the curves, pressure drop in the supply lines between pump and machine must be taken into consideration. Cleaning time, complete pattern Instruction Manual, Toftejorg SaniJet 25 Page 9 IM-TE91A760-EN2...
-
Page 10: Installation And Normal Operation
Installation and Normal Operation General Installation Instructions The Toftejorg SaniJet 25 tank cleaning machine should be installed in vertical position with the connections pointing up. It is recommended that the cleaning fluid supply line is equipped with a filter that will trap solids with a particle size of 50µm (0,002”) or larger. It is essential to avoid fine solid particles, as these particles will increase wear considerably and can become caught in one of the internal passages of the machine and cause it to stop rotating. -
Page 11: Normal Operation
Aggressive chemicals, excessive concentrations of chemicals at elevated temperatures, as well as certain hypochlorids should be avoided. If you are in doubt, contact your local Alfa Laval Tank Equipment sales office. Pressure Avoid hydraulic shocks. -
Page 12: Trouble Shooting Guide
Check if inlet pressure to machine is correct. c). Check supply line/filter restrict- ions/clogging. How to contact Alfa Laval Tank Equipment A/S For further information please feel free to contact: Alfa Laval Tank Equipment A/S Baldershoej 19 P.O. Box 1149 2635 Ishoej Denmark Phone no.: +45 43 55 86 00... -
Page 13: Cross Sectional Drawing
ï Return to menu Cross Sectional Drawing Instruction Manual, Toftejorg SaniJet 25 Page 13 IM-TE91A760-EN2... - Page 14 ï Return to menu - Blank page - Page 14 Instruction Manual, Toftejorg SaniJet 25 IM-TE91A760-EN2...
-
Page 15: Service Card
Return to menu Service Card Type of Machine Serial No. Configuration Nozzle diameter Impeller Guide Date No. of Working Maintenance Actions/ Remarks Sign. Hours Exchanged Parts Machine put into operation Vers. 942 Instruction Manual, Toftejorg SaniJet 25 Page 15 IM-TE91A760-EN2... -
Page 16: Claim Report Working Conditions
Working hours before failure hours Cleaning Programme Cleaning media and conc. Temperature Time Recirculation? Is sterilising being used? Procedure (media/temp.)? Is steam injection being used for heating? Time: __________ Temperature: __________ v. 98.1 Page 16 Instruction Manual, Toftejorg SaniJet 25 IM-TE91A760-EN2... - Page 17 What is material soluble in Nature of material: Volatile/explosive Sticky/tenacious Contains soft particles Low viscous Solidifying Contains hard particles High viscous Crystallizing Is tank cleaner submerged in material? Other information/Remarks Date: Sign.: Instruction Manual, Toftejorg SaniJet 25 Page 17 IM-TE91A760-EN2...
