Summary of Contents for Alfa Laval SaniMagnum

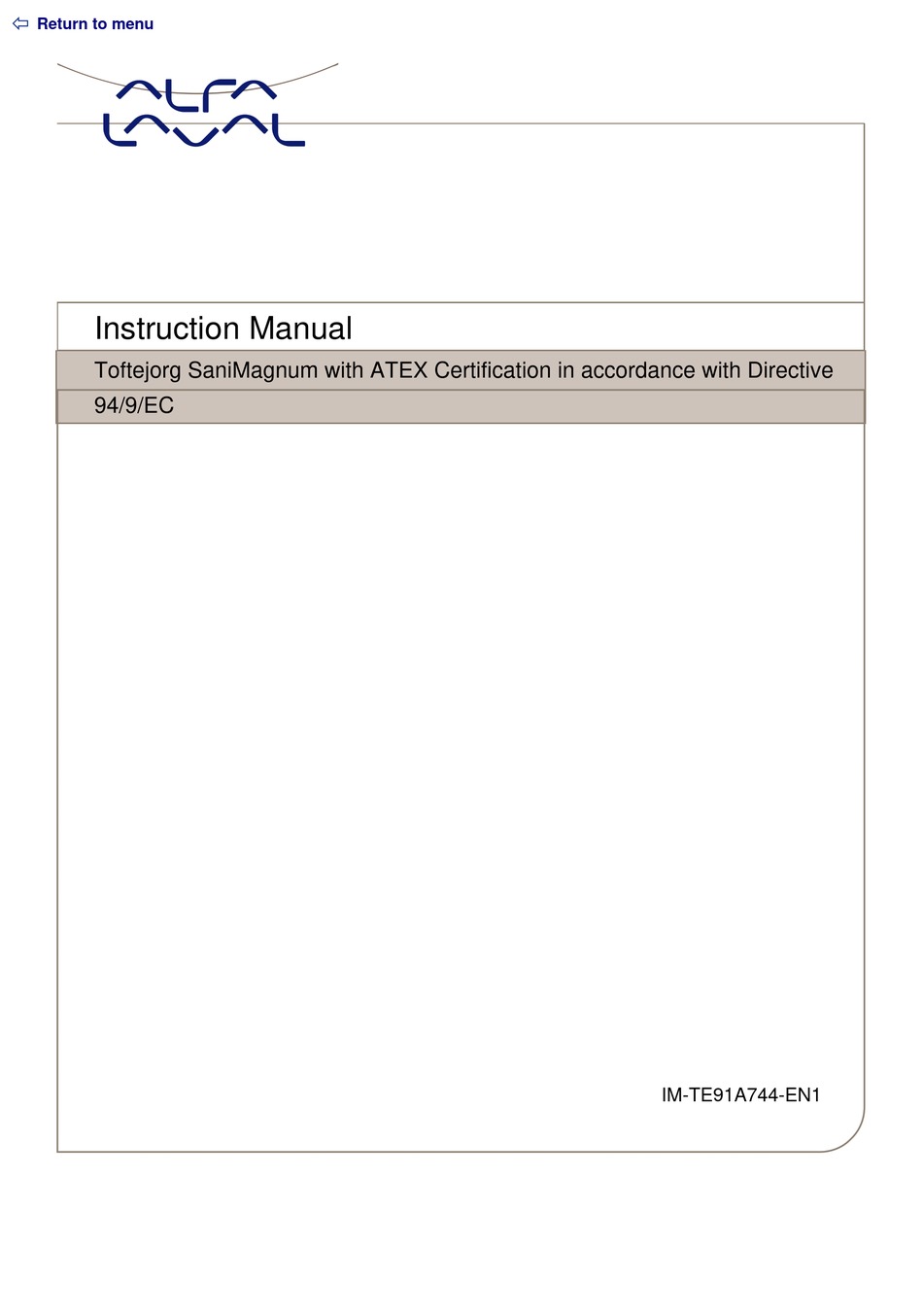

- Page 1 ï Return to menu Instruction Manual Toftejorg SaniMagnum with ATEX Certification in accordance with Directive 94/9/EC IM-TE91A744-EN1...
-
Page 2: Table Of Contents
Cleaning Media ........................ Temperature ........................Pressure........................... After-Use Cleaning ......................Claim Procedure......................12 How to contact Alfa Laval Tank Equipment A/S............12 Claim Report Working Conditions ................13 EU Declaration of Conformity..................15 Instruction Manual, Toftejorg SaniMagnum with ATEX Certification Page 1 in accordance with Directive 94/9/EC... - Page 3 ï Return to menu...
-
Page 4: Introduction
ATEX marking The Toftejorg SaniMagnum is certified as category I component. The certification is carried out by the notified body Baseefa, who has issued the certificate no. 04ATEX0357X. The marking on the ATEX certified Toftejorg SaniMagnum is as follows: xxxx is equal to the serial number. -
Page 5: General Description
ï Return to menu General Description The Toftejorg SaniMagnum is a tank cleaning machine intended for industrial use in closed tanks for processing storage. There is a broad range of application area within pharmaceutical, food and chemical industries. The Toftejorg SaniMagnum is a sanitary cleaning device of the rotating fan jets type for permanent installation that provides a cleaning pattern from 180°... -
Page 6: Functioning
(continued) Functioning The flow of the cleaning media causes the head of the Toftejorg SaniMagnum to rotate, with fan jets laying out a swirling pattern throughout the vessel. This generates a vibrating impact and cascading flow that covers all internal surfaces of the tank or reactor. The device’s self-cleaning feature is achieved by directing the cleaning media through the rotating bearing track and onto the neck of the elongated head. -
Page 7: Technical Data
Welded on pipe 1¼” NPT 2”: ø51.3 1” ISO: ø25 x 1.2 DN40: ø40.4 Weld end* DN40: ø41.4 1” ISO: ø38 x 1.2 DN25DIN: ø41 x 1.5 Page 6 Instruction Manual, Toftejorg SaniMagnum with ATEX certification in accordance with Directive 94/9/EC IM-TE91A744-EN1... -
Page 8: Performance Data For Toftejorg Sanimagnum
Note: The inlet pressure has been taken immediately before the machine inlet. In order to achieve the performance indicated in the curves, the pressure drop in the supply lines between pump and machine must be taken in consideration. Instruction Manual, Toftejorg SaniMagnum with ATEX certification Page 7 in accordance with Directive 94/9/EC... -
Page 9: Installation And Normal Operation
In EU-countries the complete system must fulfil the EU-Machine Directive and depending of application, the EU-Pressure Equipment Directive, the EU-ATEX Directive and other relevant Directives. Page 8 Instruction Manual, Toftejorg SaniMagnum with ATEX certification in accordance with Directive 94/9/EC IM-TE91A744-EN1... -
Page 10: Directive 94/9/Ec
In addition to the above mentioned precautions relating to the ATEX guidelines Directive 94/9/EC of March 23 1994, the following safety precautions, page 10, must be observed. Instruction Manual, Toftejorg SaniMagnum with ATEX certification Page 9 in accordance with Directive 94/9/EC... -
Page 11: General Safety Precautions
(continued) General Safety Precautions The Toftejorg SaniMagnum is intended for use inside a tank only, and must not be operated in open air or when the tank is open. Precautions shall be made to prevent starting of the cleaning operation, while personnel... -
Page 12: Normal Operation
Aggressive chemicals, excessive concentrations of chemicals at elevated temperatures, as well as certain solvents hydrochlorides should be avoided. If you are in doubt, contact your local Alfa Laval Tank Equipment sales office. Temperature... -
Page 13: Claim Procedure
Return to menu Claim Procedure In case of failure that needs assistance from Alfa Laval Tank Equipment A/S, it is essential for our evaluation that the problem, as well as the working conditions of the machine, is described as detailed as possible. -
Page 14: Claim Report Working Conditions
Cleaning media and conc. Temperature Time Recirculation? Is sterilising being used? Procedure (media/temp.)? Is steam injection being used for heating? Time: __________ Temperature: ___________________ V. 98.1 Instruction Manual, Toftejorg SaniMagnum with ATEX certification Page 13 in accordance with Directive 94/9/EC IM-TE91A744-EN1... - Page 15 Nature of material: Volatile/explosive Sticky/tenacious Contains soft particles Low viscous Solidifying Contains hard particles/fibres High viscous Crystallising Is tank cleaner submerged in material? Other information/Remarks Date: Sign.: Page 14 Instruction Manual, Toftejorg SaniMagnum with ATEX certification in accordance with Directive 94/9/EC IM-TE91A744-EN1...
-
Page 16: Eu Declaration Of Conformity
ï Return to menu EU Declaration of Conformity Instruction Manual, Toftejorg SaniMagnum with ATEX certification Page 15 in accordance with Directive 94/9/EC IM-TE91A744-EN1...
