Part 7 – Block diagram and specifications
JDI Mk3 (and JDI Duplex) Specifications
Type
Input impedance
Output impedance
Frequency response
Linear performance
Total harmonic distortion
Phase distortion
CMR
Maximum input level
Size
Weight
Construction
Finish
Radial Engineering

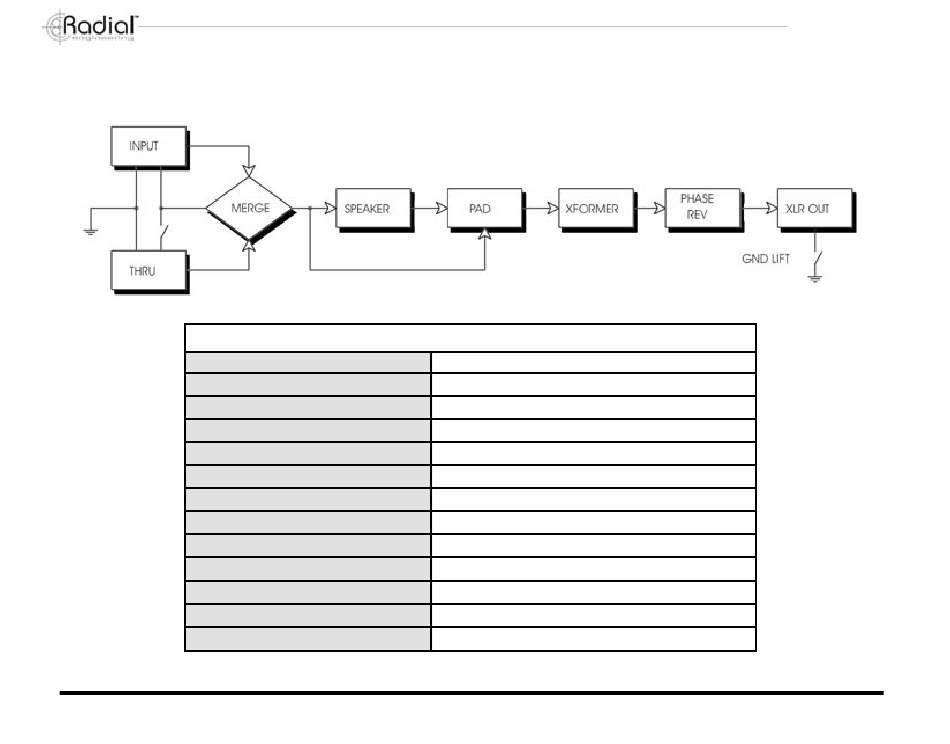

JDI Block Diagram
Passive Jensen Transformer equipped
Unbalanced 140k-Ohms typical
Balanced 150 Ohms typical
10Hz to 40kHz
< -0.22 dBr deviation @20kHz
0.05% @ 20Hz, 0.005% @ 1kHz
< 4º at 20Hz, 0.3º at 1kHz
100dB @ 60Hz
+22dBu
3.5" wide, 2" high, 5.5" deep
1kg / 2.2lbs
Welded 14-gauge steel
Baked enamel finish
