Waterblock Pin-Out Diagram - Tritech SeaKing Product Manual

Installation

3.4. Waterblock Pin-out Diagram

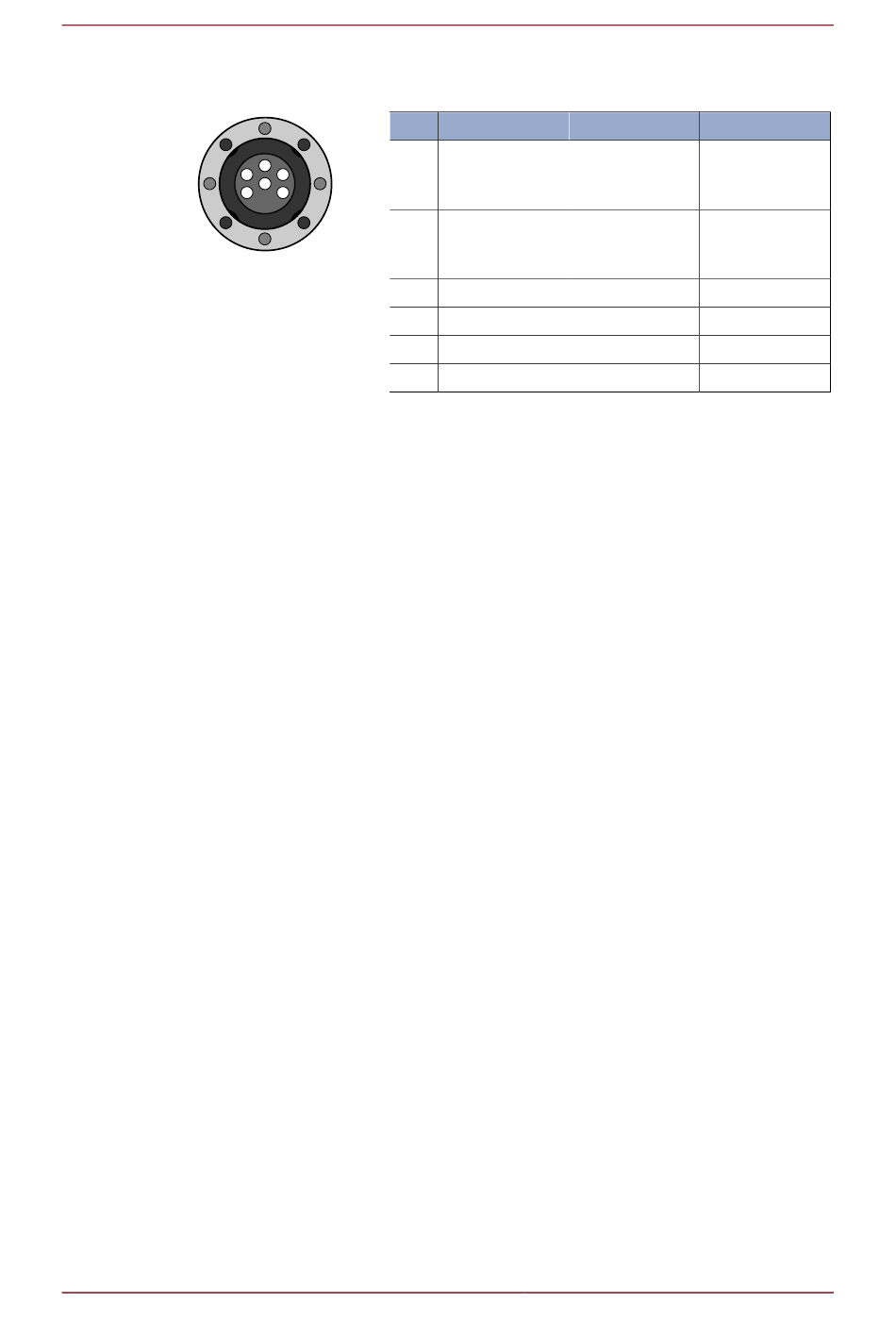

Figure 3.1. Tritech
Waterblock
0374-SOM-00001, Issue: 08
Pin
1
1
2 6
4
3 5
2
3
4
5
6
SeaKing & SeaPrince Imaging Sonars
MAIN port AUX port
RS232 TX RS232 RX
ARCNET A ARCNET A
RS485 A RS485 A
RS232 Rx RS232 TX
ARCNET B ARCNET B
RS485 B RS485 B
+DC Power
-DC Power
RS232 Ground
Earth/cable shield
12
Cable colour
Yellow
Blue
Red
Black
Green
cable screen
© Tritech International Ltd.
