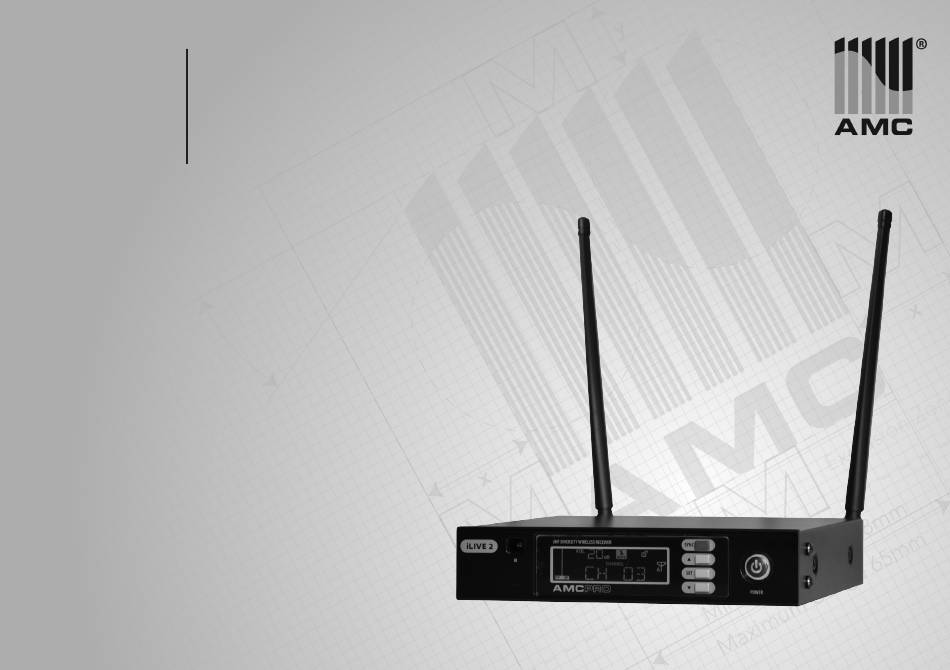

- Page 1 User iLive 2 Manual Wireless microphone system...
- Page 2 RISK OF ELECTRIC SHOCK with liquids, such as vases, shall be placed on the apparatus. DO NOT OPEN USER MANUAL iLIVE 2 Wireless Microphone System...
-
Page 3: Table Of Contents
Front panel ................................3 Rear panel................................4 Handheld microphone ..........................5 Body pack transmitter ..........................5 Receiver operation ............................6 Handheld microphone operation ....................6-7 Body pack transmitter operation .....................7 Synchronization ............................8 Receiver’s menu .............................9 Specifications General specifications ..........................14 USER MANUAL iLIVE 2 Wireless Microphone System... -
Page 4: Before You Start
RF power selector for battery life saving mode or working distance • 32 selectable channels range increase • Automatic channel targeting ACT synchronization • Excellent quality metal body microphone equipped with dynamic cardioid capsule • High brightness LCD display • Body pack transmitter with LCD display, channel, frequency and • RF, AF level meter low battery indications • Digital volume and squelch control • Balanced XLR connector and unbalanced 6,3mm TS jack connec- tor outputs. Jack/Jack cable included • Lock menu function • Handheld microphone with LCD display USER MANUAL iLIVE 2 Wireless Microphone System... -
Page 5: Operation
Operation Front Panel 1. IR transmitter 2. LCD display 3. SYNC button | 4. SET button | 5. Navigation buttons 6. Power switch USER MANUAL iLIVE 2 Wireless Microphone System... -
Page 6: Rear Panel
Operation Rear Panel 1. Antenna B connector | 2. Audio output | 3. Main power connector | 4. Antenna A connector USER MANUAL iLIVE 2 Wireless Microphone System... -
Page 7: Handheld Microphone
4. RF power selector 5. Battery holder 6. Battery cover Body pack 1. Antenna | 2. LCD display 3. IR receiver 4. Battery cover lock 5. Battery holder 6. Battery cover 7. Power button 8. Microphone connector USER MANUAL iLIVE 2 Wireless Microphone System... -
Page 8: Receiver Operation
IR transmitter allows synchronize microphone or body pack and receiver by Press power button for 3 seconds to turn on/off the power. establishing handheld microphone or body pack radio frequency to the same as the receiver. USER MANUAL iLIVE 2 Wireless Microphone System... -
Page 9: Body Pack Transmitter Operation
This connector designed to connect antenna to the receiver. working distance, try to keep antenna uncovered in order to guaranty maxi- MICROPHONE CONNECTOR mum working distance. LCD DISPLAY Balanced XLR and unbalanced 6,3mm Jack audio output. Displays the current frequency, channel and low battery indication. USER MANUAL iLIVE 2 Wireless Microphone System... -
Page 10: Synchronization
Press infrared data transfer button (SYNC) to transmit data from receiver to transmitter in order to synchronize microphone and receiver radio frequency. PUSH SYNC The distance between the devices should be proximally 20cm. IMPORTANT: During synchronization IR receiver and IR transmitter should be directed to each other. USER MANUAL iLIVE 2 Wireless Microphone System... -
Page 11: Receiver's Menu
Operation Receiver’s menu PUSH for 3 sec Long press of SET button brings main menu on the screen, in order to enter the submenu press SET button one more PUSH PUSH button button time. Use navigation buttons to navigate menu and adjust settings. PUSH button PUSH button PUSH button USER MANUAL iLIVE 2 Wireless Microphone System... - Page 12 Operation PUSH F-MODE MENU for 3 sec PUSH Activate F-mode menu by pressing SET button for 3 sec. This menu consists from TUNE, CHANNL and EXIT sub menu. to select PUSH to select PUSH button PUSH to select PUSH button PUSH to select USER MANUAL iLIVE 2 Wireless Microphone System...
- Page 13 3 sec PUSH PUSH to select to select PUSH PUSH to select to select PUSH button PUSH button PUSH PUSH PUSH to select to select to select PUSH button PUSH to select USER MANUAL iLIVE 2 Wireless Microphone System...
- Page 14 PUSH PUSH PUSH button button for 3 sec for 3 sec PUSH PUSH to select to select PUSH PUSH to select to select PUSH PUSH button button PUSH PUSH to select to select USER MANUAL iLIVE 2 Wireless Microphone System...
- Page 15 3 sec PUSH PUSH to select to select PUSH to select PUSH PUSH button button PUSH to select EXIT MENU Select to exit from menu. PUSH PUSH PUSH button to select for 3 sec USER MANUAL iLIVE 2 Wireless Microphone System...
- Page 16 Dimensions (H x W x D) 45 mm x 210 mm x 206 mm Battery 2 x 1,5 V AA Alkaline battery Weight 1.3 kg Dimensions 240 mm (lenght) Material Steel enclosure, aluminum front panel Weight 302 g Material Aluminum USER MANUAL iLIVE 2 Wireless Microphone System...
- Page 17 Specifications GENERAL iLIVE 2 body pack transmitter Carrier frequency range 606 MHz - 621 MHz Modulation Channels Audio frequency response 45 Hz - 18 kHz S/N ratio > 105 dB Antenna 1/4 wave antenna Input connector 4 pin mini XLR connector Transmitter’s power 3 mW 60 m (Note: actual range depends on RF sig-...
- Page 18 Windscreen Accessories Windscreen The specifications are correct at the time of printing this manual. For improvement purposes, all specifications for this unit, including design and appearance, are subject to change without prior notice. iLIVE 2 Wireless Microphone System USER MANUAL...
