BRK electronic Smoke & CO PRC700B Quick Start Manual

SMOKE & CO
COMBO
A L A R M
P H O T O E L E C T R I C
PRC700B
CAT.

LOW PROFILE DESIGN

Sleek, contemporary design blends into
any décor.
ELECTROCHEMICAL CO
SENSOR
Most accurate technology available for
detecting carbon monoxide as com-
pared to other sensing technologies.

PHOTOELECTRIC

Photoelectric technology is generally
more sensitive at detecting large par-
ticles, which tend to be produced in
greater amounts by smoldering fires.

10 YEAR END OF LIFE

10 Year CO Sensor and end of life. Pro-
vides audible notice when alarm needs
to be replaced. (Note: Batteries do not
last 10 years and are not tamper proof.
Use PRC710B for these features.)

SILENCE FEATURE

Silences nuisance alarms.

TAMPER RESISTANT

Locks alarm to mounting bracket to
prevent removal of battery and/or
alarm. Perfect for apartment, dormitory
or hotel applications.
3V (two 1.5V AA) Alkaline Battery Powered

Description:

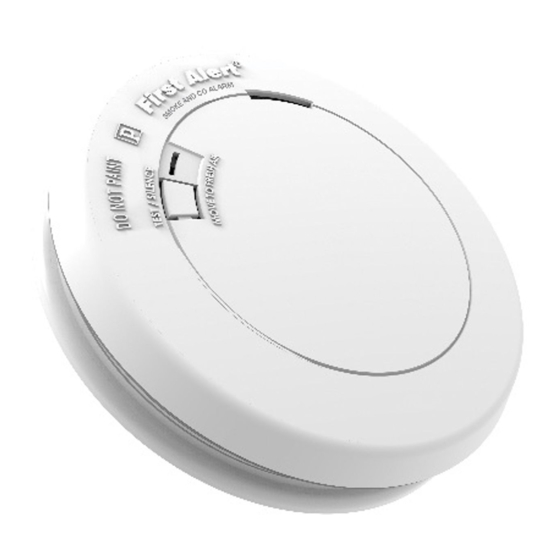

BRK PRC700B (model PC1200) is a battery operated single station photoelectric
smoke and carbon monoxide combination alarm specifically designed for residen-
tial and institutional applications including sleeping rooms of hospitals, hotels, mo-
tels, dormitories, and other multifamily dwellings as defined in standard NFPA 101.
BRK PRC700B has been fully tested and complies with, UL217, UL2034, CSFM,
NFPA 72, NFPA 720, NFPA 101 and other agencies that model their codes after
the above agencies. It meets building codes where battery operated photoelectric
smoke and carbon monoxide combination alarms are required and with model
building codes published by the ICC.
BRK PRC700B is a state of the art smoke and CO combination alarm designed to
provide early warning of a fire or carbon monoxide danger. It features a photoelec-
tric smoke sensing chamber and an electrochemical CO sensor. Two AA alkaline
batteries power supply, 10 Year CO sensor, 10 Year End of Life feature and single
button test/silence. This alarm has two silence features. Low Battery Silence: Tem-
porarily silence the low battery chirp for up to eight hours. Alarm Silence: Silence
alarm for several minutes. It also features a tamper resistant locking pin that locks
the alarm to the mounting bracket to prevent removal of batteries or alarm. De-
signed for wall or ceiling mounting. Includes mounting anchors and screws.
