BRK electronic 83RN Quick Start Manual

SMOKE
ALARM
83RN
CAT.
DUAL IONIZATION
Dual Ionization sensing
chamber. Generally more
effective at detecting
small particles produced
by flaming fires. Sources
may include paper or
kitchen grease.
HINGED COVER
DESIGN
Fast and easy installation
and battery replacement
LOW PROFILE
STYLING
Complements any décor.
9V BATTERY
INCLUDED
APPROVED FOR
RV USE
Distributed by:
9V Battery Operated

Description:

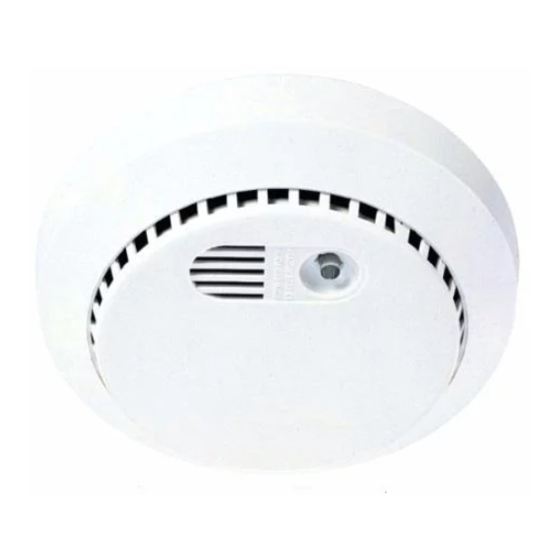

The BRK Electronics ® Cat. No. 83RN is a battery operated single
station smoke alarm specifically designed for residential and
institutional applications including sleeping rooms of hospitals,
hotels, motels, dormitories and other multi-family dwellings as
defined in standard NFPA 101. The 83RN is approved for RV use.
Complies with UL217, CSFM, NFPA 72, HUD, FHA and other
agencies that model their codes after the above agencies.
BRK Electronics ® catalog number 83RN features a fully insect
screened dual ionization smoke sensing chamber, an 85dB horn, a
supervised 9V battery power supply, a full function test switch, a
red LED light that indicates DC power or alarm. The compact, low
profile design complements any décor. Battery installation and
removal can occur while the unit is mounted to the ceiling or wall
via the hinged cover. When voltage drops to a pre-set warning
level, the 83RN's horn will "chirp" approximately once per minute
to indicate a fresh battery is needed. To insure the battery is always
replaced properly, the cover is designed to resist closing when the
battery is missing. Designed for surface mounting, the 83RN
includes mounting anchors and screws.
IONIZATION
