BRK electronic SC7010LBLV Quick Start Manual

SMOKE & CO
COMBO
A L A R M
SC7010LBLV
MODEL.
1042734
CAT.
1 0YR CO SENSOR
1 0YR ALARM LIFE
1 0YR BATTERY BACKUP
SMOKE & CO COMBO
Electrochemical CO sensor; Photoelectric
smoke sensor.
VOICE WARNING WITH
LOCATION
A voice will tell you the programmed
location of the unit and danger detected.
CO PEAK FUNCTION
Captures highest CO level recorded for
post-incident investigation.
LATCHING ALARM
INDICATOR
Easily identifies initiating alarm even after
condition is silenced.
SINGLE BUTTON
TEST/SILENCE
One touch button combines both features.
END OF LIFE SIGNAL
Provides audible notice when alarm
needs to be replaced after 10 years.
120V AC/DC with 10 Year Sealed
Lithium Battery Backup

Description:

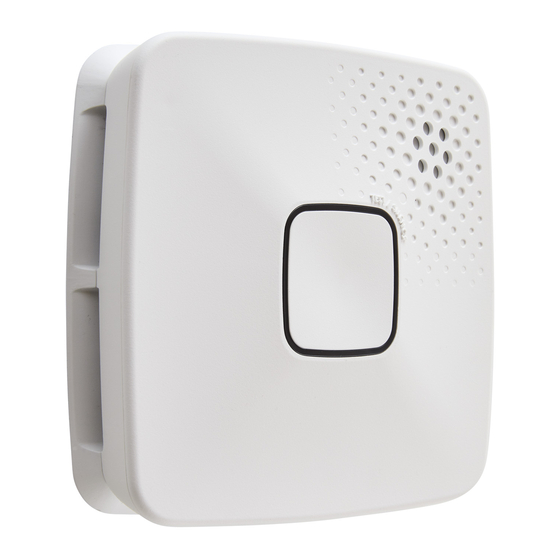

The BRK Model No. SC7010LBLV (CAT. 1042734) is a wire-in, 120V AC 60Hz
single and/or multiple station combination smoke and carbon monoxide alarm
specifically designed for residential and institutional applications including
sleeping rooms of hospitals, hotels, motels, dormitories and other multi-family
dwellings as defined in standard NFPA 101. Model SC7010LBLV complies with
UL217 and UL2034, CSFM, NFPA 72 and NFPA 720, HUD, FHA and other agencies
that model their codes after the above agencies. It meets building codes where
AC/DC photoelectric smoke and carbon monoxide alarms with and without voice
are required and where 10 year sealed battery backup is specified.
The BRK SC7010LBLV is a state-of-the-art hardwired with 10 year sealed Lithium
battery backup smoke/ CO combo alarm that features a photoelectric smoke
sensing chamber, an electrochemical CO sensor, an End of Life signal and Voice
Warning with Location. This exclusive feature incorporates a voice that will speak
one of 13 pre-programmed locations and the danger detected. This alarm features
two latching features. Alarm Latch: Easily identifies initiating alarm even after
alarm condition has subsided. Battery End of Life Latch: Identifies which unit is
in low battery condition by blinking the green power light. Alarm also includes a
single test/silence button to test alarm operating and silence nuisance alarms
and CO Peak functionality to record highest CO level reached – helpful to first
responders after an incident. Other features include an 85dB horn and single
button test/silence feature. Connection to AC power is made with a Quick-Connect
wiring harness (included).
