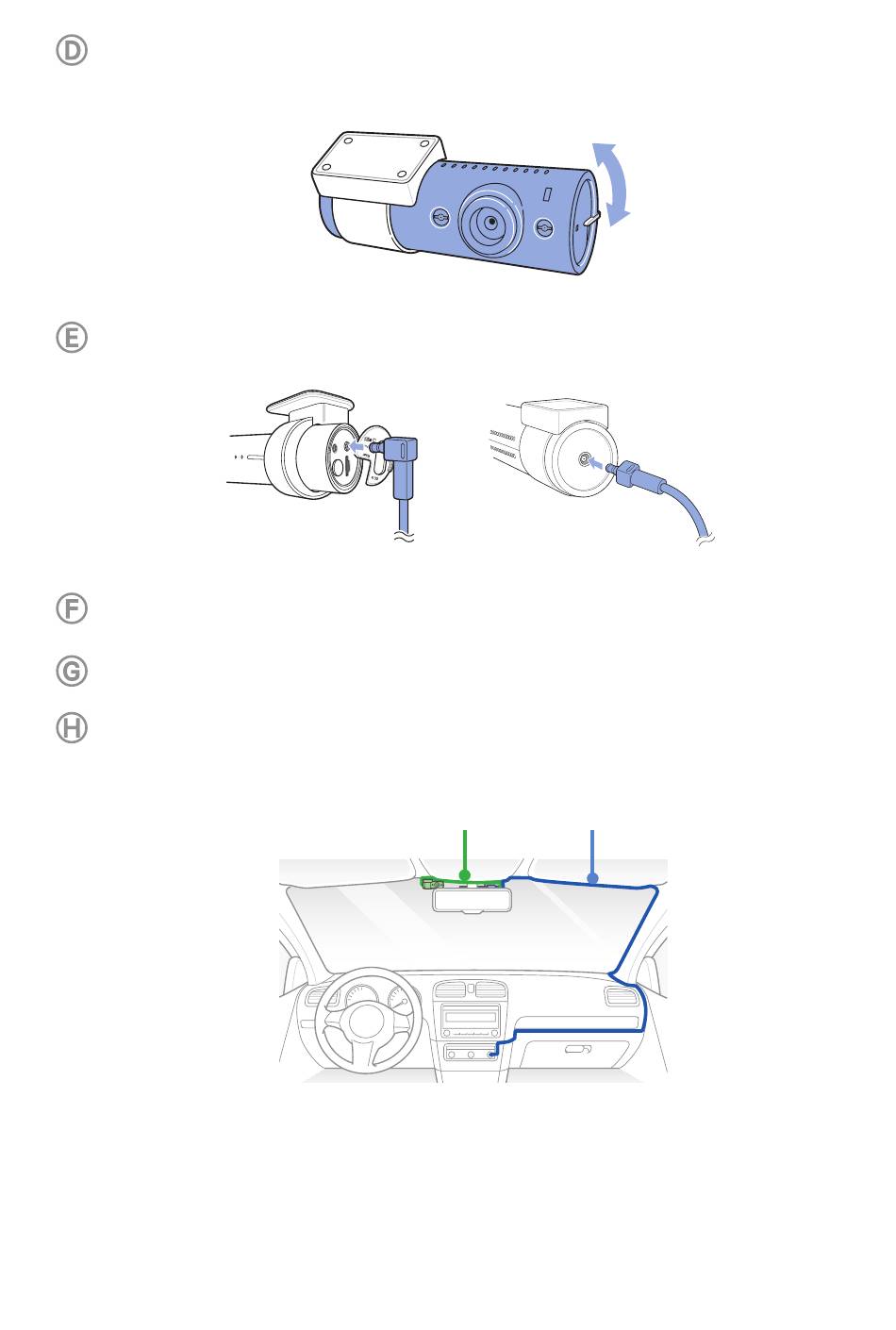

Peel off the protective film from the double-sided tape and attach the interior/rear
camera to the front or rear windshield. Adjust the angle of the lens by rotating the
body of the camera.
Connect the front camera ('Rear' port) and the rear camera ('V out') using the rear
camera connection cable.
Use the pry tool to lift the edges of the rubber window sealing and/or molding and
tuck in the rear camera connection cable.
Plug the power cord into the cigarette lighter socket and the front camera.
Use the pry tool to lift the edges of the windshield trim/molding and tuck in the
power cord.
Interior/rear camera
Power cord
connection cable
