  • Page 1 PX268 Driver LED C.C. 12 x 350mA User manual...

  • Page 2: Table Of Contents

    5 DMX signal connecting................7 6 Connection scheme...................8 7 Dimensions....................9 8 Technical data.....................9 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-2 BDO register number 000005972 www.pxm.pl...

  • Page 3: Description

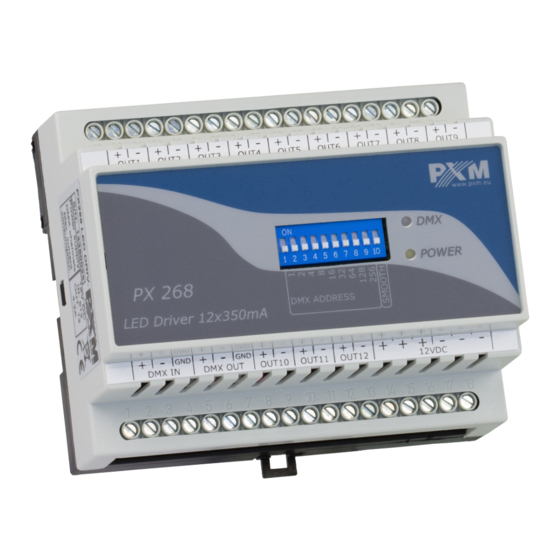

    Description Driver PX268 is designed to control LEDs, it is ideal for use in simple systems. Built-in receiver allows control of 12 channels directly with DMX protocol. To each of the 12 channels it is possible to connect up to 3 LEDs.
  • Page 4 5. All repairs and connections of outputs or DMX signal can only be made with cut off power supply. 6. The PX268 should be strictly protected against contact with water and other liquids. 7. All sudden shocks, particularly dropping, should be avoided.

  • Page 5: Connectors And Control Elements

    DMX output DMX address setting The PX268 allows to set an address on a single DMX channel. The start address is set in binary code using a DIP Switch. On the next page you will find some sample settings of the start address. First 9 switches are responsible...
  • Page 6 position OFF position ON DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS...

  • Page 7: 4.1 Smooth Function Settings

    PX268 have to be connected to DMX line in serial mode, with no branches on DMX control cable. That means that DMX line, from the signal source, must be connected to DMX IN pins of PX268 and later, directly from DMX OUT pins to the next device in DMX chain.

  • Page 8: Connection Scheme

    Connection scheme max. 3 LEDs / output (350mA / channel) power supply 12V DC DMX controller PX 268 Driver LED C.C. 12 x 350mA...

  • Page 9: Dimensions

    Dimensions PX 268 Driver LED C.C. 12 x 350mA 105 mm 60 mm Technical data type PX268 DMX channels power supply 12V DC max. current consumption 4,2A power consumption without load 0,8W number of output channels control accuracy 16bit outputs load capacity 350mA / channel (+2% ÷...
  • Page 10 Podłęże, 27.11.2019 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: Driver LED C.C. 12 x 350mA Product code: PX268 meets the requirements of the following standards, as well as harmonised...
