- Page 1 PX268+ Driver LED C.C. 12 x 350mA User manual...
-
Page 2: Table Of Contents
6 DMX signal connecting................8 7 Connection scheme...................9 8 Dimensions....................10 9 Technical data..................10 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-0 BDO register number 000005972 www.pxm.pl... -
Page 3: Description
Description Driver PX268+ is designed to control LEDs, it is ideal for use in simple systems. Built-in receiver allows control of 12 channels directly with DMX protocol. To each of the 12 channels it is possible to connect up to 3 LEDs. The PX268+ can only be controlled with DMX. -
Page 4: Safety Conditions
Safety conditions PX268+ is a device powered with safe voltage 12V DC; however, during its installation and use the following rules must be strictly observed: 1. The device may only be connected to 12V DC with current-carrying capacity compatible with technical data. 2. -
Page 5: Connectors And Control Elements

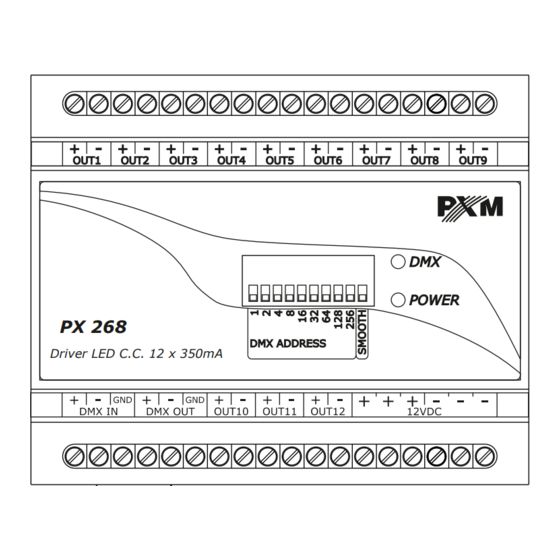

Connectors and control elements control outputs PX 268 Driver LED C.C. 12 x 350mA control outputs power supply DMX input 12V DC DMX output DMX address setting The PX268+ allows to set an address on a single DMX channel. The start address is set in binary code using a DIP Switch. - Page 6 position OFF position ON DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS DMX ADDRESS...
-
Page 7: 4.1 Smooth Function Settings
4.1 Smooth function settings Active smooth function and starting DMX address on the first channel. DMX ADDRESS Activating of the smooth function allows to flatten steps between successive control signal values and ensures fluent changes e.g. brightness. This feature prevents common effects of light flickering during brightness or color changes in light installations. -
Page 8: Dmx Signal Connecting
DMX signal connecting PX268+ have to be connected to DMX line in serial mode, with no branches on DMX control cable. That means that DMX line, from the signal source, must be connected to DMX IN pins of PX268+ and later, directly from DMX OUT pins to the next device in DMX chain. -
Page 9: Connection Scheme
Connection scheme max. 3 LEDs / output (350mA / channel) power supply 12V DC DMX controller PX 268 Driver LED C.C. 12 x 350mA... -
Page 10: Dimensions
Dimensions PX 268 Driver LED C.C. 12 x 350mA 105 mm 60 mm Technical data type PX268+ DMX channels power supply 12V DC max. current consumption 4,2A power consumption without load 0,8W number of output channels interpolated resolution of output control 16bit outputs load capacity 350mA / channel (+2% ÷... - Page 11 Podłęże, 19.05.2022 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: Driver LED C.C. 12 x 350mA Product code: PX268+ meets the requirements of the following standards, as well as harmonised...
