PXM PX715 User Manual

Driver led 4 x 700ma/48v
Hide thumbs Also See for PX715:
Table of Contents

Advertisement

Quick Links

Download this manual

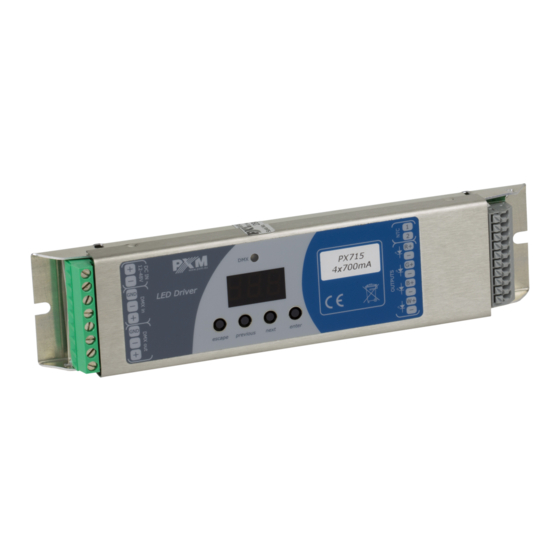

PX715
Driver LED
4 x 700mA/48V
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX715 and is the answer not in the manual?

Questions and answers

Related Manuals for PXM PX715

Summary of Contents for PXM PX715

  • Page 1 PX715 Driver LED 4 x 700mA/48V User manual...

  • Page 2: Table Of Contents

    Table of Contents 1 Description....................4 2 Safety conditions..................5 3 Connector and control elements.............6 4 Designation of displayed messages............7 5 Device programming.................9 5.1 Button features......................9 5.2 Group DMX address settings..................9 5.3 Individual DMX address settings................10 5.4 Colour settings mode....................11 5.5 No DMX signal response..................14 5.6 Description of programs..................15 5.7 Master / Slave function...................17 5.8 White balance......................
  • Page 3 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-1 BDO register number 000005972 www.pxm.pl 03.12.2018...

  • Page 4: Description

    12 – 48V DC and a maximum current-carrying capacity of 700mA max. The PX715 can be controlled by both the DMX signal and it can work on its own. In this case, the user has a fully programmable scene and 18 pre- programmed sequences for which the playback speed and smoothness of step changing can be freely set.

  • Page 5: Safety Conditions

    The RGBW LEDs often differ quite substantially in parameters, this can cause problems in obtaining a white color (at full power especially). Therefore PX715 comes with a very useful function called "white balance". Thanks to it you can choose color correction for each set of LEDs controlled by the device to achieve at full power the color white.

  • Page 6: Connector And Control Elements

    5. All repairs and connections of outputs or DMX signal can only be made with cut off power supply. 6. PX715 should be strictly protected against contact with water and other liquids. 7. All sudden shocks, particularly dropping, should be avoided.

  • Page 7: Designation Of Displayed Messages

    Designation of displayed messages DMX address of a device – a basic item in the MENU setting parameters for all channels simultaneously setting parameters for each channel individually inverting the meter display 180 degrees DMX address setting control method selection (RGB, Lightness / Colour, etc.) no DMX signal response method selection Master / Slave mode settings Lightness / Colour control mode...
  • Page 8 red balance green balance blue balance white balance white colour balance on / off program playback speed level of steps change smoothness in the program red colour during scene programming green colour during scene programming blue colour during scene programming white colour during scene programming basic frequency of brightness control screen blanking...

  • Page 9: Device Programming

    – enters the next MENU level and confirms changes made 5.2 Group DMX address settings The menu of the PX715 driver allows for setting the DMX address within a range between 1 and 505 – 511 depending on work mode of device.

  • Page 10: Individual Dmx Address Settings

    NEXT 5.3 Individual DMX address settings The PX715 module has an option that allows for changing individual settings. It enables assigning any DMX address to every output channel. The simplest example of implementation of this function is to control the lightness of one-color LEDs connected to all outputs.

  • Page 11: Colour Settings Mode

    ENTER ENTER NEXT ENTER NEXT The PX715 driver can operate in different control modes. Depending on the selected mode, the devices takes up a different NEXT numbers of channels, possible modes: The HSL mode (Hue, Saturation, Lightness) operates on three...
  • Page 12 of the group. Similarly, the third and the fourth DMX channels control the other group. The EFF mode – effects control – it is available on 8 DMX channels and allows to choose the right effect and parameters (description of the EFF mode is below) Description guide of EFF mode settings (table is on the next page): Channel 1 –...
  • Page 13 CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL CHANNEL 8 1 RED 2 GREEN 3 BLUE 5 MODE 6 SPEED 7 FADE BRIGHTNESS WHITE <0–7> Program 1 <8–15> Program 2 <16–23> Program 3 <24–31> Program 4 <32–39> Program 5 <40–47> Program 6 <48–55>...

  • Page 14: No Dmx Signal Response

    5.5 No DMX signal response This function is used both to protect the installation against the DMX signal loss and to obtain control over LEDs without connecting an external controller. Once it is activated, if there is no DMX signal the module will realize a desired function independently.

  • Page 15: Description Of Programs

    Sc –self-programmed scene in which it possible to set values for RGB colors (rEd, Grn, bLu, HtE) in range 0 – 255 for each colour separately. Additionally can set the scene entry time (SPd) after decay DMX signal in range 0,1 – 99,9s. on –...
  • Page 16 Step 1 Step 2 Step 3 Step 4 Step 5 Step 6...

  • Page 17: Master / Slave Function

    Step 4 5.7 Master / Slave function The PX715 module has a built-in DMX-512 receiver and can be controlled from any desktop or controller running in this standard. Moreover, it is equipped with a programmable function of response to no DMX signal (noS).

  • Page 18: White Balance

    Sometimes, there can be problems with getting white colour on the RGBW series LEDs. This may be a result of using diodes with different technical parameters. For this reason, the PX715 module is equipped with a white balance function. This option allows for choosing a correct colour...

  • Page 19: Smooth

    ENTER ENTER 4 x NEXT ENTER NEXT NEXT bLr – value for the red colour (0 – 100) bLG – value for the green colour (0 – 100) bLb – value for the blue colour (0 – 100) NEXT bLY – value for the white colour (0 – 100) bCn –...

  • Page 20: Light Control Frequency

    ENTER ENTER 5 x NEXT ENTER NEXT NEXT PREV ENTER NEXT 5.10 Light control frequency The Frq function allows for setting the basic control frequency for the LEDs. This function is extremely useful in applications for the television industry. By applying the "flicker free" technology, it is possible to avoid the unpleasant flickering effect which is caused by improper signal synchronization that controls the LEDs.

  • Page 21: Screen Saving (Screen Blanking)

    NEXT 5.12 Temperatures limits and sensor failure PX715 has been equipped with a function that limits the output power depending on the temperature value read using the external sensor mounted in the lamp. This allows for programming a temperature value which, if reached, limits the power or disables the lamp supplied by the driver.
  • Page 22 ENTER The meaning of the statement: tMP – power limitation 4 x NEXT ENTER ENTER management depending on NEXT NEXT temperature read on the external sensor NEXT LiM – powering On and OFF of the power limitation function NEXT Lo – limit activation temperature NEXT value can be set between 30°C and 60°C...

  • Page 23: Display Function

    That is why the PX715 driver has a display flip feature available. It turns the screen 180°. The keys order is reversed as well.

  • Page 24: Default Settings And Device Errors

    In such a case, try to restore the device to its default settings before sending the PX715 to the service center. If, after restoring to its default settings, the device still does not operate correctly,...

  • Page 25: Restore Default Settings

    5.14.1 Restore default settings To restore the device to its default settings, press and hold the “previous” key while switching on the device. One of the messages that will be displayed will say dFl, which means successful restoring to default settings (the “previous”...

  • Page 26: Error Message

    PX715 have to be connected to DMX line in serial mode, with no branches on DMX control cable. That means that DMX line, from the signal source, must be connected to DMX IN pins of PX715 and later, directly from DMX OUT pins to the next device in DMX chain.

  • Page 27: Rdm - Available Parameters

    RDM – available parameters The PX715 supports the DMX-RDM protocol. DMX protocol allows only of a one-way data transmission, while its extension the RDM protocol can transmit information in two directions. This makes possible to simultaneously send and receive information, and hence the possibility of monitoring activities of the compatible devices.
  • Page 28 Parameter name Description manufacturer description, MANUFACTURER_LABEL 0x0081 e.g. name inverting the meter display 180 DISPLAY_FLIP * 0x8031 degrees additional device description; It is possible to enter an additional DEVICE_LABEL * 0x0082 device description using up to 32 ASCII characters. DMX_PERSONALITY 0x00E0 DMX operational mode DMX_PERSONALITY_ description of individual...
  • Page 29 No DMX 0x801C OFF_21 * signal settings of red channel value SCENE_RED * 0x801D for scene saved in PX715 settings of green channel value SCENE_GREEN * 0x801E for scene saved in PX715 settings of blue channel value SCENE_BLUE *...

  • Page 30: Programming

    Programming ENTER ENTER ENTER NEXT NEXT ENTER NEXT NEXT ENTER ENTER NEXT NEXT NEXT NEXT NEXT NEXT ENTER NEXT NEXT NEXT ENTER NEXT NEXT NEXT NEXT NEXT ENTER ENTER NEXT NEXT NEXT NEXT Next page...
  • Page 31 Previous page ENTER NEXT NEXT ENTER NEXT NEXT ENTER NEXT NEXT NEXT NEXT NEXT NEXT ENTER ENTER NEXT NEXT NEXT ENTER ENTER NEXT NEXT NEXT NEXT NEXT NEXT...

  • Page 32: Connection Scheme

    Connection scheme Power supply and DMX connection diagram controller DMX power supply 12 - 48 V DC PX715 driver DMX receiver, e.g PxArt lamp RGBW lamp connection, Monochrome lamp connection 700mA power supply (one colour), 700mA power supply Number of...
  • Page 33 PX715 driver LED lamp RGBW LED lamp RGBW Example connection the PX715 driver to the LED RGBW lamp: • the cables should be connected with the correct order of colors • LEDs should be connected only in series controlled LEDs can be connected using two conductors only, i.e. two •...
  • Page 34 Connection diagram of the RGBW lamp with a built-in temperature sensor (NTC 4K7 thermistor) PX715 driver RGBW lamp with built-in NTC 4K7 thermistor The connection of the NTC 4K7 thermistor is applicable only when one lamp is connected to the driver. This is due to the fact that the device can read...
  • Page 35 Monochrome lamp in DW mode connection diagram cold white warm white cold white PX715 driver warm white...

  • Page 36: Dimensions

    10 Dimensions PX715 4x700 mA/48V 11 Technical data type PX715 DMX channels RDM protocol support power supply 12 – 48V DC max. current consumption max. 2.8A power consumption without load output channels number control accuracy 16 bit programmable scenes built-in programs outputs load capacity 700mA / channel (+2% ÷...
  • Page 37 PCB terminal block, Push-button output sockets (0,5 – 1.5mm Master mode weight 0.2kg width: 192mm dimensions height: 44,8mm depth: 20,6mm...
  • Page 38 Podłęże, 03.04.2019 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: Driver LED 4 x 700mA/48V Product code: PX715 meets the requirements of the following standards, as well as harmonised...
