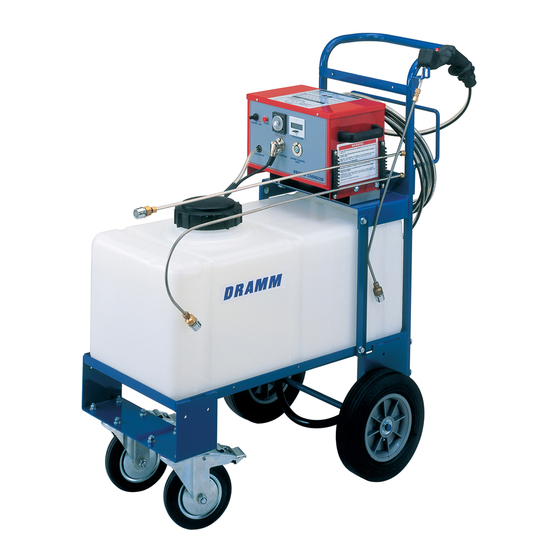

- Page 1 C H E M D O S E ™ Owners Manual C D - 1 2 0...
-
Page 2: Table Of Contents
Table of Contents Warranty ......................4 Warning ......................5 How Does My Chemdose Work? ..............6 Pre Operation Checklist ..................7 Application ....................7 Chemical Mixing ....................8 Operation ......................9 Charging ......................10 MS-20E Sprayer Cart Bottom Draw Instructions ..........11 MS-20E Sprayer Cart & Tank Assembly Diagram & Parts List ......12 Chemdose Assembly Diagram &... -
Page 3: Warning
WARNING The Dramm CD100 Chemdose applies toxic chemicals. Extreme caution must be used! Read all warnings. Serious injury or death can occur from misuse. • Do not operate machine without read- • Follow all E.P.A. guidelines and chemi- ing all warnings and instructions. -
Page 4: How Does My Chemdose Work
How Does My Chemdose Work? The Dramm Chemdose is a machine designed for precision applica- tion of chemical solutions directly to a pot or root zone. This results in less wasteful application of expensive chemi- cals with little or no overdosing. The... -
Page 5: Pre Operation Checklist
Pre Operation Checklist REATMENT A. Make sure that the treatment area is vacant. No humans or pets should be present. B. Post all hazard signs before application. C. Follow all E.P.A. and W.P.S. guidelines. Follow all chemical label directions. HEMDOSE A. -
Page 6: Chemical Mixing
Chemical Mixing The Chemdose is designed to apply precise doses of chemical solution to the pot or root zone of plants. Because this is a precision application it is important to know how much chemical solution is needed per pot. This will help determine the amount of chemical needed in the Chemdose. -
Page 7: Operation
Operation PERATION 1. Switch the three position switch from "off" to "on". 2. Determine the amount of solution desired per shot and set the inner timer dial to the corresponding time setting. Use the chart below (figure 1) or on the machine to determine this setting. -
Page 8: Charging
HARGING 1. Plug the charger into a 120 volt 60 Hz (standard voltage, other voltage chargers are available from Dramm). 2. Plug the charger into the charger receptacle on the Chemdose. 3. Switch the three position switch to charge. The "Fast Charge" light should come on, indicating charge. -
Page 9: Ms-20E Sprayer Cart Bottom Draw Instructions
Ms-120E Sprayer Cart Bottom Draw Instructions Included in your MS-20E 4. With the tank in the cart ARTS Dramm Electric Sprayer Cart with the outlet to the re a r Item Description Part # there are several parts which and the Chemdose in place,... -
Page 10: Ms-20E Sprayer Cart & Tank Assembly Diagram & Parts List
MS-20E Sprayer Cart & Tank Assembly Diagram Item # Document # Description Quantity DII093A MSO 20 Cart DII096 Handle Assembly DIII20A MSO Pump Bracket DIII21 Side Leg DIII59 Chemdose Bracket DI0563 Chemdose Box 1899041 6” Caster SNI0275-OP 5/8 10 X 2 Wheel SP0020-LC 20 Gallon Tank Chemdose Manual... -
Page 11: Chemdose Assembly Diagram & Parts List
Chemdose Parts Exploded View Item # Description Item # Description 109QC1-12V Pilot Light D10624 Bench Wand 1435-005 1/2 NPT X 1/2" Barb D10625 Floor Wand 1806T44 Counter Panel Mount DC D10626 Hanging Basket Wand 2088-343-135 Pump D10633A Grip and Hose 3175 60 14 fitting 1/4 mntp to 3/8 o.d. -
Page 12: Chemdose Pump Assembly Diagram & Parts List
2088 Series Pump Exploded View ARTS EFERENCE UMBER ESCRIPTION 94-236-11 Complete Pump Head 94-231-05 Upper Housing / Switch assembly 94-230-05 Switch kit 94-237-05 Check Valve Kit 94-231-30 Upper Housing Kit 94-232-05 Valve Kit 94-238-03 Diaphragm / Drive Kit 11-111-00 Motor Chemdose Manual... -
Page 13: Troubleshooting
Incorrect volume level Disassemble, clean and Clogged nozzle re-install Confirm the correct Check chart on unit timer setting and step time Use voltage adapter Improper voltage Charger "Fault" signal Damaged Battery Get a replacement Charger charger from Dramm Chemdose Manual...
