Dramm MS75E Owner's/Operator's Manual

Portable power sprayer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ME25
MS75E

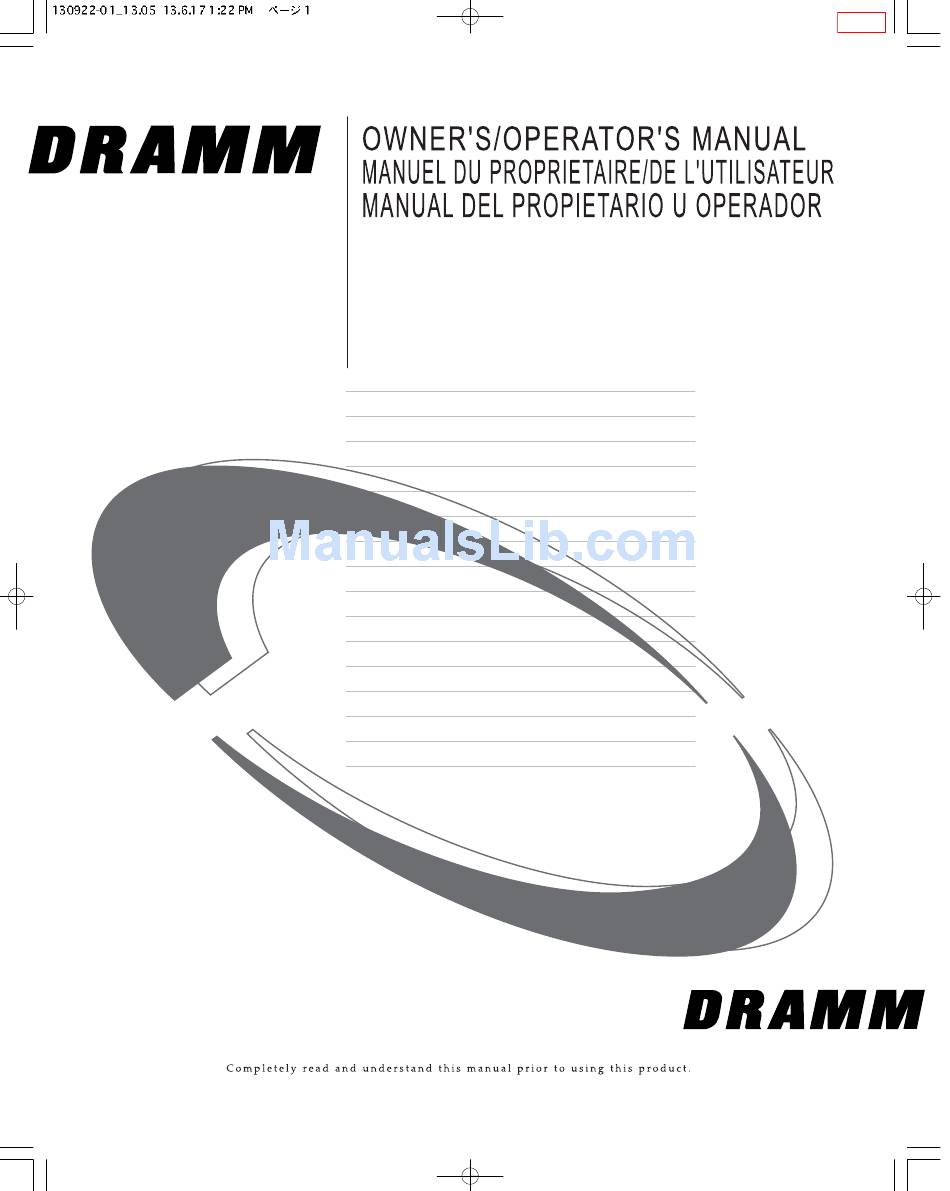

PORTABLE POWER SPRAYER
PORTABLE PULVÉRISATEUR À DOS
PORTÁTIL PULVERIZADOR MOTORIZADO DE MOCHILA
L i s e z e t a s s i m i l e z l a t o t a l i t é d e c e m a n u e l a v a n t d ' u t i l i s e r c e t a p p a r e i l .
L e a y e n t i e n d a e s t e m a n u a l a f o n d o , a n t e s d e u s a r e s t e a p a r a t o .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS75E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dramm MS75E

Summary of Contents for Dramm MS75E

  • Page 1 ME25 MS75E PORTABLE POWER SPRAYER PORTABLE PULVÉRISATEUR À DOS PORTÁTIL PULVERIZADOR MOTORIZADO DE MOCHILA L i s e z e t a s s i m i l e z l a t o t a l i t é d e c e m a n u e l a v a n t d ' u t i l i s e r c e t a p p a r e i l .
  • Page 2 Preface continually m i mprove our products to provide superior products to our customers. Thank you for purchasing DRAMM products. This Owner's/Operator's Manual explains the Please send any inquiries about this product to correct handling method, simple checks and your nearest sales outlet our sales ofiice.

  • Page 3: Limited Warranty Statement

    Dramm Premium 2-Cycle oil or equivalent ISO-L-EGD & JASO FC 2-Cycle oil. Any part of a Dramm product found to be defective within the applicable warranty period shall, at Dramm's option, be repaired or replaced without charge. Warranty consideration is obtained by delivering any Dramm product believed to be defective to an Authorized Dramm Servicing Dealer within the applicable warranty period.
  • Page 4 Dramm shall not be liable for any incidental or consequential damages for breach of any express or implied warranty on these products except to the extent prohibited by applicable law. Any implied warranty of merchantability or fitness for a particular purpose on these products is limited in duration to the warranty period as defined in the limited warranty statement.
  • Page 5 (b) As the small off-road engine owner, you should be aware, however, that Dramm Corporaton may deny you warranty coverage if your small off-road engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
  • Page 6 If you have any questions regarding your warranty rights and responsibilities, you should contact Dramm at 1.800.258.0848. Emission System Parts Exhaust Emission Evaporative Emission Carburetor Fuel Tank Muffler Catalytic Converter Ignition Coil / Magneto Spark Plug Air Filter EGR Valve (piston)
  • Page 7 U.S. EPA standards for the first two years of engine use from the date of sale to the ultimate purchaser. Dramm Corp.
  • Page 8 If any emission-related part on your engine is defective, the part will be replaced by Dramm Corp. at no cost to the owner. Dramm shall remedy warranty defects at any authorized Dramm warranty station.

  • Page 9: Table Of Contents

    Contents Limited warranty statement In order to work safely Cautions prior to work Cautions when you useing this product Cautions after the use Name of each part and function Warning label Handling and operating method Preparations for starting Oil feeding and mixing Start Operation and shutting down Throttle adjusting parameter...

  • Page 10: In Order To Work Safely

    In order to work safely Cautions prior to work The following persons shall not do spraying work. ・Person who cannot do normal spraying work due to fatigue, illness, effects of chemicals. ・Person who is under the influence of alcohol ・Person who is pregnant ・Person other than spray operator ・Children should be prevented from using this machine.

  • Page 11: Cautions When You Useing This Product

    Cautions when Chemicals using this product ・Read labels of chemicals to be used carefully, This product can be used for the following agricul- and understand the method of use and cau- tural work. Avoid use for purposes other than the tions.
  • Page 12 Cautions when use this product Confirmation of standard parts After opening the package, confirm that all accessories are present. If accessories are missing or damaged, inform the Dramm outlet where you purchased the product. Accessories Owner's/Operator's Manual Warranty Registration Card...

  • Page 13: Cautions After The Use

    Cautions when you use this product Fuel Fuel is Flammable, therefore observe the following to prevent fire. ・Don't bring a open flame close to where fuel is supplied or the machine is main- DANGER tained. ・When supplying fuel, make sure you stop the engine and wait for the engine to cool down.

  • Page 14: Name Of Each Part And Function

    2. Name of each part and function Frame Stop button Stopper Throttle lever Pressure control valve handle Intake Discharge Bypass Choke lever Spark plug Engine Recoil starter Fuel tank 0.6 Lit (0.16Gallons) English...

  • Page 15: Warning Label

    Warning label ・Always remove dirt or mud to make the indications legible. ・The following alarm labels are attached. Alarm label Read Owner's/Operator's Manual thoroughly. Make sure you read the Owner's/Operator's Manual thoroughly prior to use. Wear a protector. Wear protectors such as hat, safety glasses, ear plugs during work. Prohibition of fire Don't put a open flame close to a place where supplying fuel or doing maintenance.

  • Page 16: Handling And Operating Method

    3. Handling and operating method Preparations for starting 1) Check that screws of equipment are not loose. 2) Connect hoses to pump as shown below. Connect discharge hose first, then bypass hose, and then intake hose. Then connect discharge hose to applicator (spray gun, spray wand, etc.). Intake hose Bypass hose Dischage hose...

  • Page 17: Oil Feeding And Mixing

    Oil feeding and mixing CAUTION ・If operating the machine with gasoline Oil feeding alone, the engine will seize. Make sure to mix exclusive two-cycle engine ・Make sure you use Fuel and oil mixture oil in the specified quantity. ・The mixing ratio shall be the designated Gasoline exclusive oil ratio for exclusive two-cycle engine oil.

  • Page 18: Start

    Start Fully close the choke. (In hot weather or when engine is hot, the choke should be Start of engine partly open or fully open.) CAUTION When starting the engine, make sure to put water or chemicals into the chemical tank. Without water or chemicals in the tank, the pump will break Close down.
  • Page 19 Engine will start. Return choke slowly. After pulling starting rope gently by two or three times, pull it hard to start the engine. [Pulling method for starting rope] 1. Grasp starting rope tight with right hand. 2. Hold chemical tank with left hand. 3.

  • Page 20: Operation And Shutting Down

    Operation and shutting down Stop Operation Close the nozzle. Turn the handle of the pressure control valve until there is sufficient pressure for work such as spraying weeds (fixed position). Handle of pressure control valve Start ① When engine is started and when pump starts suction.

  • Page 21: Throttle Adjusting Parameter

    Throttle adjusting parameter (1) Always standard throttle position. (see fig 1) (3) In order to perform standard setting , lose the ※For spraying , remove the stopper to stopper and remove to the standard standard position. position.(see fig 3) Must be tighten the stopper. standard position Fig 1 standard position...

  • Page 22: Cleaning, Maintenance, And Storage

    Check and maintenance items and replace worn one with new one. for each season For disassembly and maintenance, consult with your authorized Dramm service dealer. Air Filter Cleaning Drain 1.Loosen the knob and remove the air filter cover. 2.Remove the foam element and filter screen from CAUTION the air filter body.

  • Page 23: Storage

    CAUTION Maintenance of cylinder Don't leave chemicals in the chemical tank and pump. This might cause damage to the machine. ①Remove plug. ②Few drops of oil. Storage ③Pull two or three times. ④Put in plug. Remove fuel from fuel tank, and operate the machine in idling state until it stops.

  • Page 24: Trouble-Shooting And Actions

    Trouble-shooting and actions ・When the pump or engine is not performing properly, please refer to the following chart. ・Where marked with , request adjustment or repair at authorized Dramm servicing dealer. Pump Phenomena Cause Treatment (1) Loose connecting of suction hose (1) Tighten sufficiently.

  • Page 25: Specification

    5. Specification Dimension Height× Wldth × Length(mm)-(inches) 350× 275× 325(13.8× 10.8× 12.8) Dry weight(kg) (lbs) 7.1 (15.3) Total weight(kg) (lbs) 10.4 (22.9) Fuel tank capacity( R ) (gallons) 0.6 (0.16) Pump Type twin uni-flow Maximum pressure(kgf/cm ) (PSI) 25 (357) Suction( R /min) (gallons/min) 7.5 (1.98) Rotational frequency(rpm)
