ADJUSTMENT OF CHECK LINKS

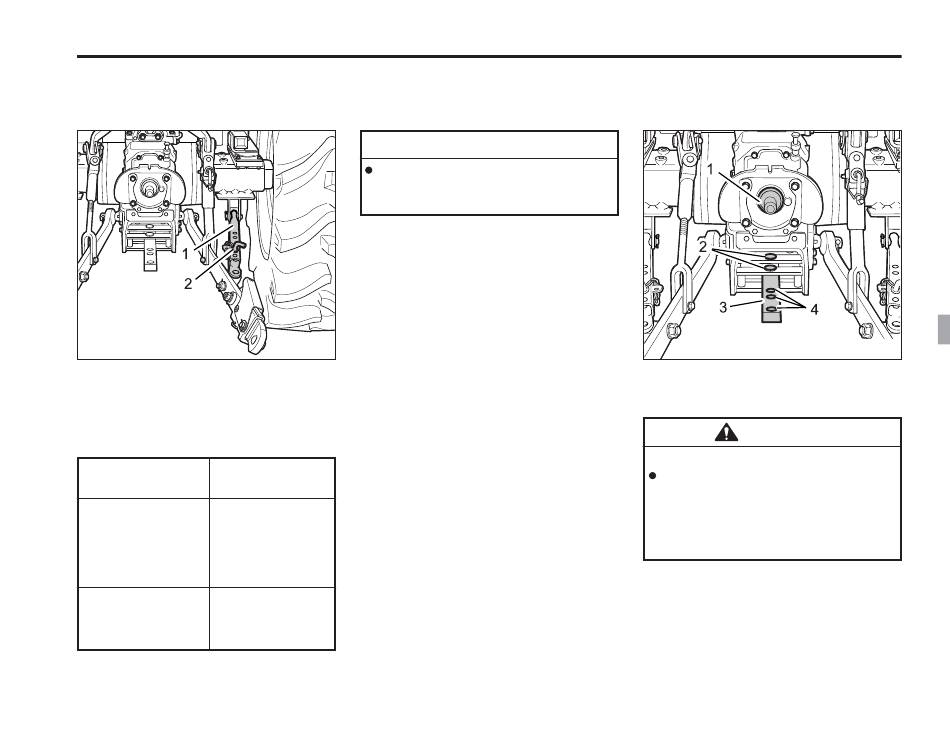

(1) Check Link (2) Pin
Adjust the Check Links to control hori-
zontal sway of the implement.
Type of implement
Check Link adjust-
ment
Loosen until the
Plow, furrow,
implement can be
subsoiler,
moved 50 ~ 60 mm
cultivator, ditcher
(1.97 ~ 2.36 in.)
horizontally.
Tighter
Rotary, mower,
hay rake, tender,
rider
The rear wheel must not interfere with
the check link or the lower link when
you control the check link.
069O602A
THREE-POINT HITCH & DRAWBAR 6-3
DRAWBAR

ADJUSTING DRAWBAR LENGTH

NOTE
(1) PTO Shaft
(2) Drawbar Pin
To avoid personal injury:
When towing an inplement, recommend
use of (4) hole in drawbar.
The drawbar load is referred to "IMPLE-
MENT LIMITATIONS" section.
(3) Drawbar
(4) Holes
WARNING
Never pull from the top link, the
rear axle or any point above the
drawbar. Doing so could cause
the tractor to tip over rearward
causing personal injury or death.
069O603A
